Godex RT730i User Manual

41
4 NetSetting for Ethernet
4.1 Installing the NetSetting software
The NetSetting software is used to manage the network configurations when connecting the printer via Ethernet port.
It is available on product CD or can be downloaded from official website. To install the NetSetting, please follow
below steps.
5. Click ”Next” to start the installation.
6. Once the installation is completed; you will see the NetSetting icon on your desktop.

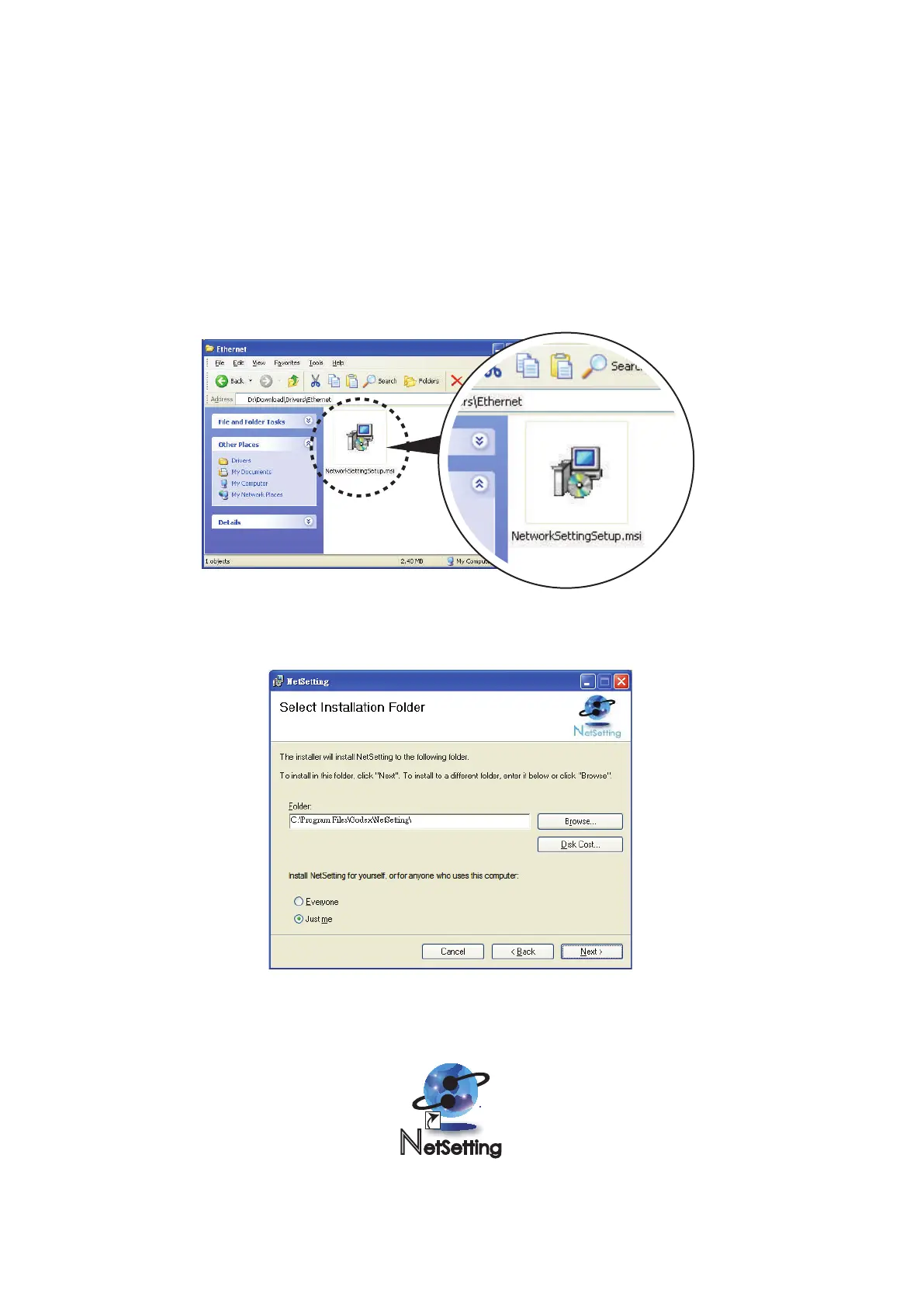

1. Insert the product CD in the CD/DVD drive of the host computer and open the "Ethernet" folder on the CD.
2. Select the icon for the NetSetting installation file and click it to start the installation.
3. Follow the instructions on the screen. The Setup Wizard guides you through the installation procedure.
4. Specify the “Installation Folder".

Godex RT730i Specifications

General

Print technology	Direct thermal / Thermal transfer
Maximum resolution	300 x 300 DPI
Maximum print height	762 mm
Maximum printing width	105.7 mm
Display	LCD
Product color	Black
Wi-Fi	No
Ethernet LAN	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	8 MB
Certification	CE (EMC), FCC Class A, CB, CCC, cUL
Internal memory	16 MB
Built-in barcodes	1D, 2D, Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Windows code pages supported	1250, 1251, 1252, 1253, 1254, 1255, 1257
Ribbon width	110 mm
Core diameter	25.4 mm
Ribbon length	300 m
Media thickness	0.06 - 0.2 mm
Maximum roll diameter	127 mm
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	30 - 85 %
Power requirements	100-240V, 50-60Hz
Compatible operating systems	Windows 2000, XP, Vista, 7, Windows Server 2003, 2008

Weight and Dimensions

Depth	280 mm
Width	210 mm
Height	186 mm
Weight	3000 g
