Excess flow device SBS
5 / 10

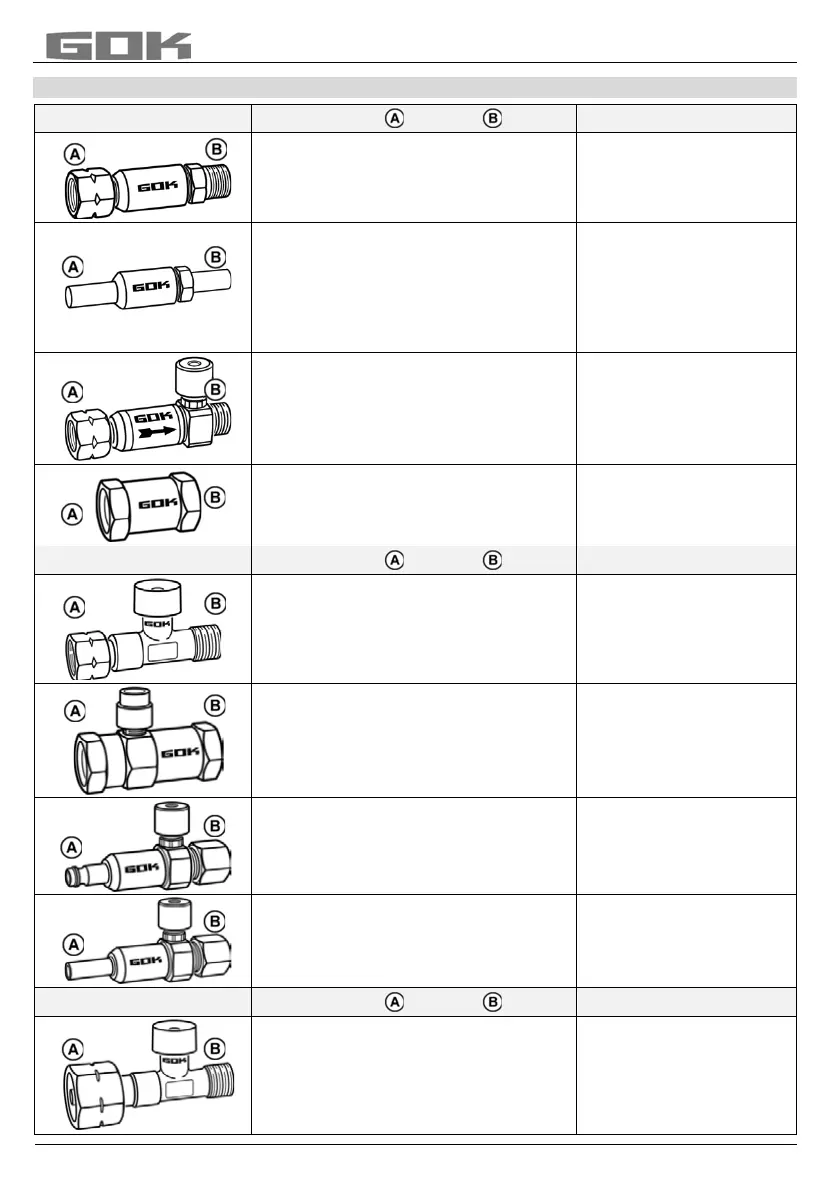

CONNECTIONS
SBS low pressure
Inlet x Outlet
Installation note
G 1/4 lh cap nut x G 1/4 lh M
Spanner size 17
(Hexagonal)
Tightening torque
10 Nm
RST 8 x RST 8
Pipe socket RST x pipe
socket RST with coupling
nut type M
and olive type D
pursuant to
DIN EN ISO 8434-1
G 1/4 lh cap nut x G 1/4 lh M
Spanner size 17
(Hexagonal)
Tightening torque
1
0 Nm
G 1/2 F x G 1/2 F
For accepting a screw-in
connector with O-ring,
female thread, cylindrical
SBS medium pressure
Inlet x Outlet
Installation note
G 3/8 lh cap nut x G 3/8 lh M
Spanner size 19
(Hexagonal)
Tightening torque
15 Nm
G 3/8 F x G 3/8 F
or
G 1/2 F x G 1/2 F
For accepting a screw-in
connector with O-ring,
female thread, cylindrical
STN x RVS 8
Plug-in fitting STN x
pipe coupling RVS for
connection to quick
coupler SKU
RST 8 x RVS 8
Pipe socket RST x
pipe coupling RVS
pursuant to
DIN EN ISO 8434-1
SBS high pressure
Inlet x Outlet
Installation note
Komb.A x G 3/8 lh M
Combined fitting
(Komb.A) with polyamide
gasket and coupling nut
W 21.8 x 1/14 lh nut
