Gomaco Commander III - 3 D Elevation Control Modes; Units and Slope Stabilizer Setup

Commander III
2-31
.21

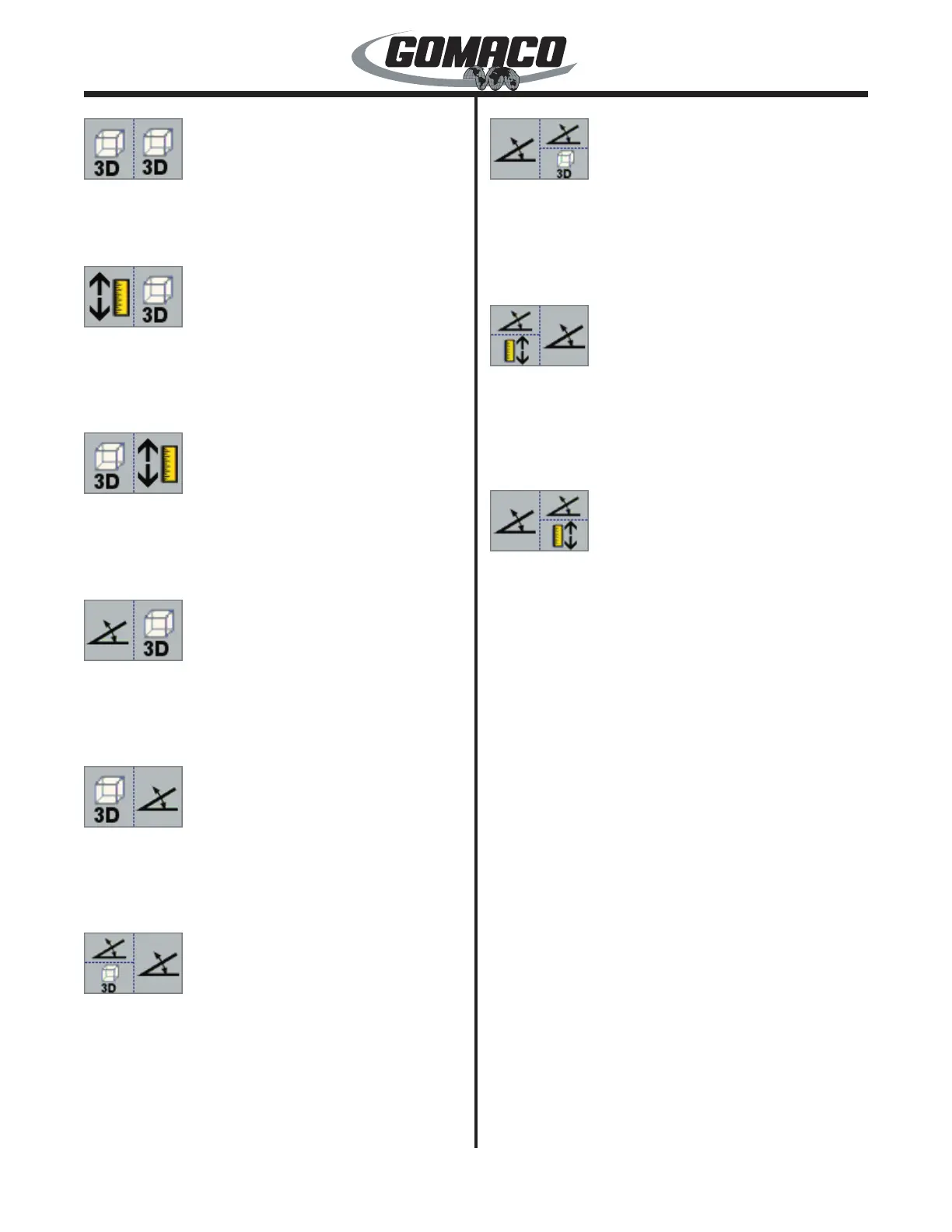

Dual 3D (optional): The optional stringless system
controls the elevation on the left and right side of the
machine.
023
Left grade, right 3D (optional): Grade sensors control
the elevation on the left side of the machine and the
optional stringless system controls the elevation on the
right side of the machine.
022
Left 3D, right grade (optional): The optional stringless
system controls the elevation on the left side of the
machine and the grade sensors control the elevation
on the right side of the machine.
020
Left slope, right 3D (optional): The slope system
controls the elevation on the left side of the machine
and the optional stringless system controls the
elevation on the right side of the machine.
019
Left 3D, right slope (optional): The optional stringless
system controls the elevation on the left side of the
machine and the slope system controls the elevation
on the right side of the machine.
027
Left rear 3D, cross / long slope: The digital
cross / long slope sensor controls the left front
and right elevations with 3D control for the left rear
elevation. This is a self leveling elevation mode used
for setup.
028
Right rear 3D, cross / long slope: The digital
cross / long slope sensor controls the left and right
front elevations with 3D control for the right rear
elevation. This is a self leveling elevation mode used
for setup.
024
Left rear grade, cross / long slope: The digital
cross / long slope sensor controls the left front and
right elevations with a grade sensor controlling the left
rear elevation. This is a self leveling elevation mode
used for setup.
025
Right rear grade, cross / long slope: The digital
cross / long slope sensor controls the left and right
front elevations with a grade sensor controlling the
right rear elevation. This is a self leveling elevation
mode used for setup.
Units section: Sets the English (feet) or Metric
(meters) units of measurement used in any of the
displays. Existing values will automatically be
converted.
Slope Stabilizer (Option): Used to set the mode of
operation for the slope stabilizer circuit. This is an
option installed on a 4-track Commander III when side-
mounted paving, parapet or barrier will be installed on
the machine in transport mode. This is also included
on a stagger 4-track machine setup. The hydraulic
valves required for this option are installed on the right
side of the machine only. The stabilizer icon selections
are described below.
Note: The slope stabilizer section in Machine
Setup 1 display will not appear when Commander
III 3-track conguration is selected.
