Commander III
2-32
High pressure injection or crushing hazard. Use
adequate blocking under elevation legs before
performing maintenance on hydraulic lines or
locking valves, or working under the machine.
Failure to comply could result in death or serious
injury.

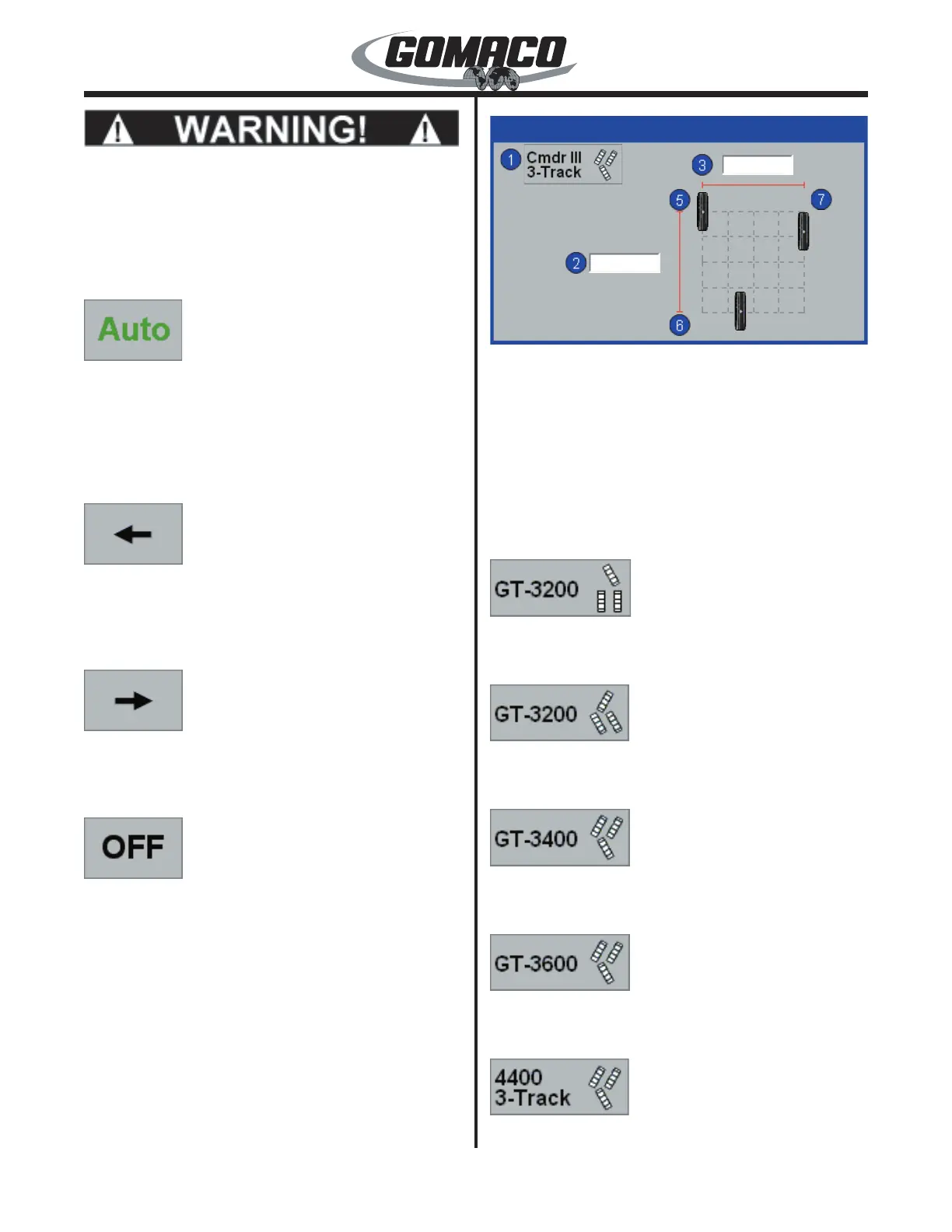

Auto
The right slope stabilizer is activated automatically
which energizes the hydraulic valves between the right
front and right rear legs to allow the legs to self level.
The machine must be in transport conguration with a
slipform mold mounted to the left side of the machine
frame to allow proper operation.
096
The left slope stabilizer is activated but will not
operate since the slope stabilizer hydraulic valves
are not installed in the left front and left rear elevation
cylinders.
094
The right slope stabilizer is activated which energizes
the slope stabilizer hydraulic valves between the right
front and right rear legs to allow the legs to self level.
095
The slope stabilizer electrical circuit is disabled.
158G+
Machine Setup
158G+
2 ▲▼
120.00
71.96
in
in
(0,20)
(37,0)
(0,0)
Machine Type: Sets machine type and conguration.
Different machine models are listed in the icons.
Select the most appropriate icon according to machine
model and setup conguration. Below are the
descriptions for the icon options.
Notice: Selecting an incorrect machine model icon
can cause controller faults and malfunctioning
controls. Machine damage could result when
operating with incorrect controller parameters.
078
Selects the operating parameters for the GT-3200
machine model with front steer only capability.
079
Selects the operating parameters for the GT-3200
machine model with three track steer option.
080
Selects the operating parameters for the GT-3400
machine model.
081
Selects the operating parameters for the GT-3600
machine model.
082
