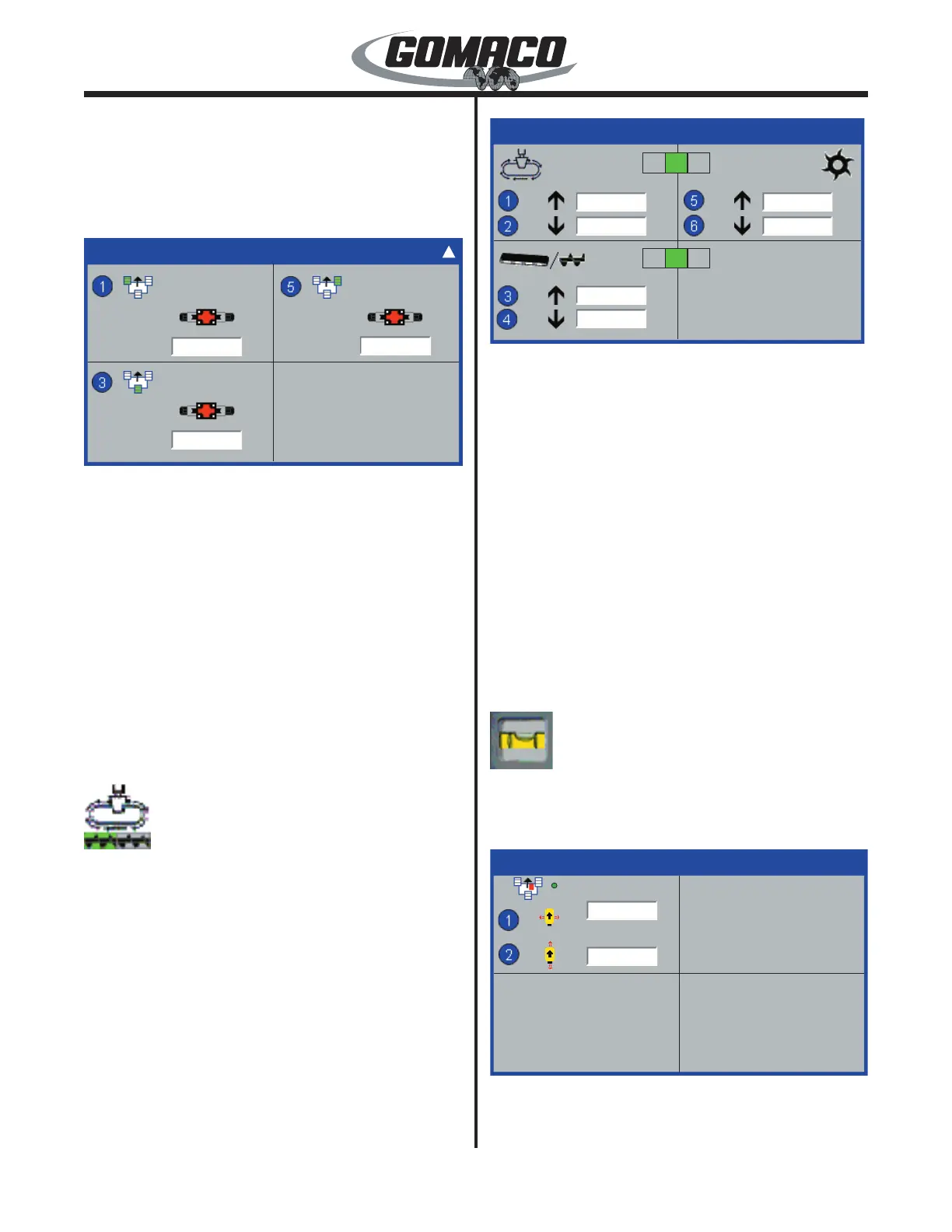

procedures for setting the elevation thresholds are
described in the maintenance chapter.
Press the number button indicated in the data box
to select a threshold and an adjustment screen will
appear.
318G+
All Jog Current
70%
70%
70%
318G+
All jog current display: Sets the signal to each
elevation valve so all three legs move up evenly when
using the all jog mode. Press the number button
indicated in the data box to select an all jog parameter
for adjustment. The border of the data value box will
turn red when it is selected. To change a setting,
press the ▲ or ▼ navigation buttons. Adjustment
range is 50% to 100%. Check the operation using
the all jog mode switch. Readjust the settings until
all legs move at the same rate of speed. The exact
procedures for setting all jog current values are
described in the maintenance chapter.
Setup menu
Travel setup
031
Flashing arrows in the top right corner indicate more
displays are above or below the screen currently
viewed. Press the ▲ or ▼ navigation buttons to view.
164G+
Thresholds
23
22
21
23
F N R
164G+
F N R
23
22
Used to set the start of track, trimmer, conveyor, auger,
or tamper bar movement on the variable speed dials.
The speed dials are typically turned 10% of full rotation
before the tracks or auger conveyor begin moving
and usually require a setting between 20 and 30. The
setting range is 1 to 50. A threshold setting for forward
and reverse is stored for each of the systems.
Note: The vibrators will begin operating
automatically at approximately 5% rotation of the
travel variable speed dial. The tracks should begin
operation at approximately 10% rotation.
The exact procedures for setting the valve thresholds
are described in the maintenance chapter.
Setup menu
Slope setup
220-0065
Flashing arrows in the top right corner indicate more
displays are above or below the screen currently
viewed. Press the ▲ or ▼ navigation buttons to view.
082G+
Slope Sensor Null Setup
-1.58%
-1.58%
-0.23%
-0.76%
082G+
▼
Used to set the null (level) point for the dual axis (cross
/ long slope) sensor when the machine frame is level
from side to side, and front to rear. The percentage
