Gomaco Commander III - Control Switches; Track Control Switches; Machine Function Switches

Commander III
2-7
04—Control Switches

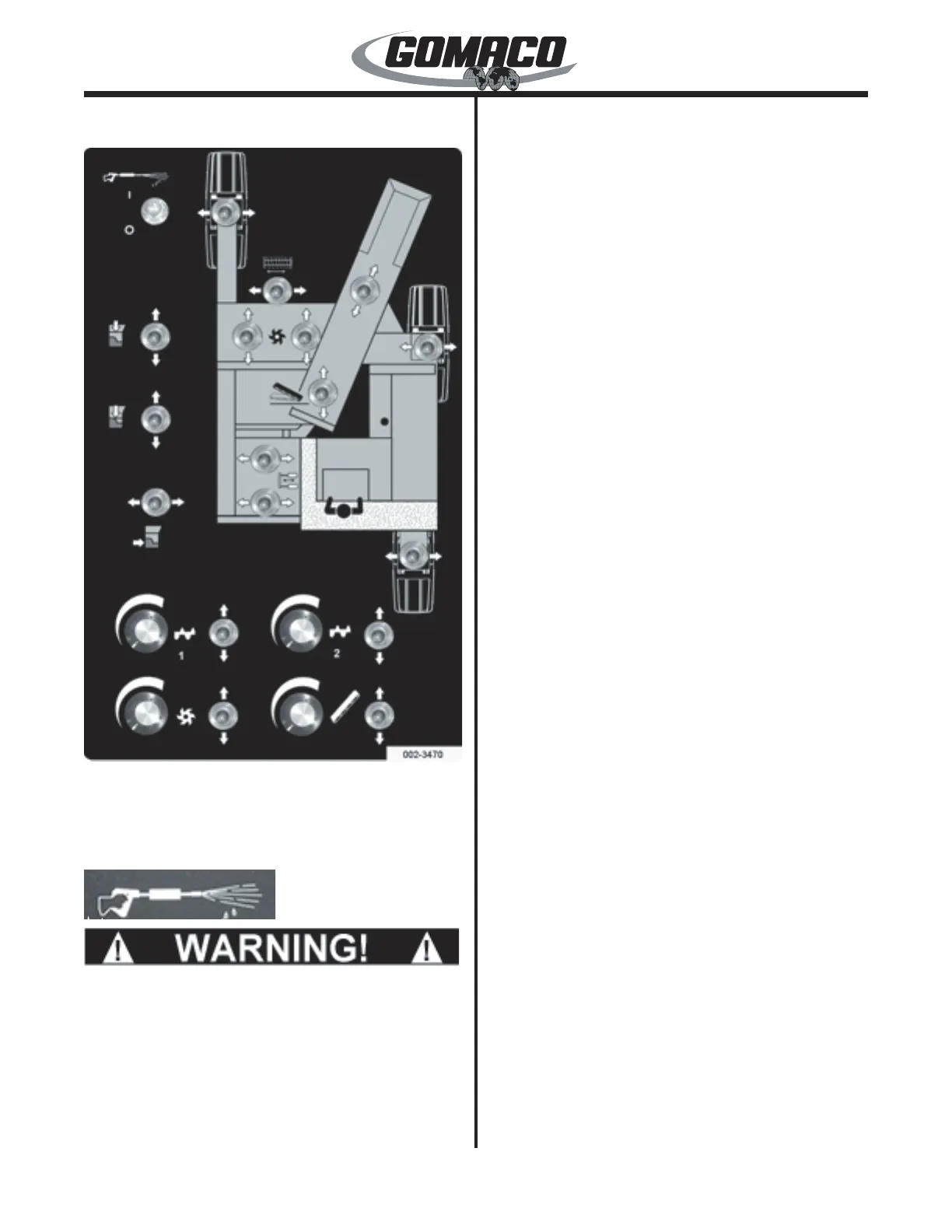

002-3470
Three track control switches: The three track
control panel module contains all switches that
are required to operate the machine in the 3-track
conguration.
236
W141
Contact with moving augers, conveyor, trimmer,
or tracks can cause serious injury or death. Be
certain that the auger area is clear before starting
the engine. Do not allow the augers, conveyor, or
trimmer to operate when washing the machine.
The machine travel must be stopped during
cleaning operations.
Power Wash On/Off Switch: Used to control the on
and off operation of the high pressure power wash
system. The power wash will operate when the switch
is placed in the on (I) position. The power wash will
not operate when the switch is placed in the off (O)
position.
Left Front Leg Pivot Switch: Controls the lateral
position of the left front leg up to 36 inches (91 cm)
to the left and 24 inches (60 cm) to the right from the
straight ahead position. Move the switch left (←) to
extend the cylinder and pivot the leg left. Move the
switch right (→) to retract the cylinder and pivot the
leg right. A tethered remote control may be used
for ground level operation (see description below).
Retaining pins must be removed to allow changes in
lateral position of the leg.
Trimmerhead Shift Switch: Controls the lateral
positioning of the trimmerhead up to 36 inches (91 cm)
to the left side of the machine. Move the switch left
(←) to extend the trimmerhead and right (→) to retract
the trimmerhead.
Trimmerhead Lift Switches (Left and Right):
Controls the vertical movement of the trimmerhead
up to 18 inches (45 cm). Move the switches up (↑)
to raise the trimmerhead and down (↓) to lower the
trimmerhead.
Right Front Leg Shift Switch: Controls the lateral
movement of the right front leg up to 36 inches (91 cm)
to the right. Move the switch left (←) to retract the leg
into the frame and right (→) to extend the leg.
Conveyor Shift Switch: Controls the longitudinal
movement of the conveyor assembly to reach the
slipform mold hopper when the mold is shifted left of
the machine frame. Conveyor shift cylinder stroke is
36 inches (91 cm). Move the switch up to extend the
conveyor frame towards the slipform mold and down to
retract the conveyor frame. A tethered remote control
may be connected for ground level operation (see
description later).
Conveyor Lift Switch: Controls the vertical
movement of the conveyor receiving hopper. Move
the switch up (↑) to raise the receiving end of the
conveyor and down (↓) to lower. A tethered remote
control may be connected for ground level operation
(see description later).
