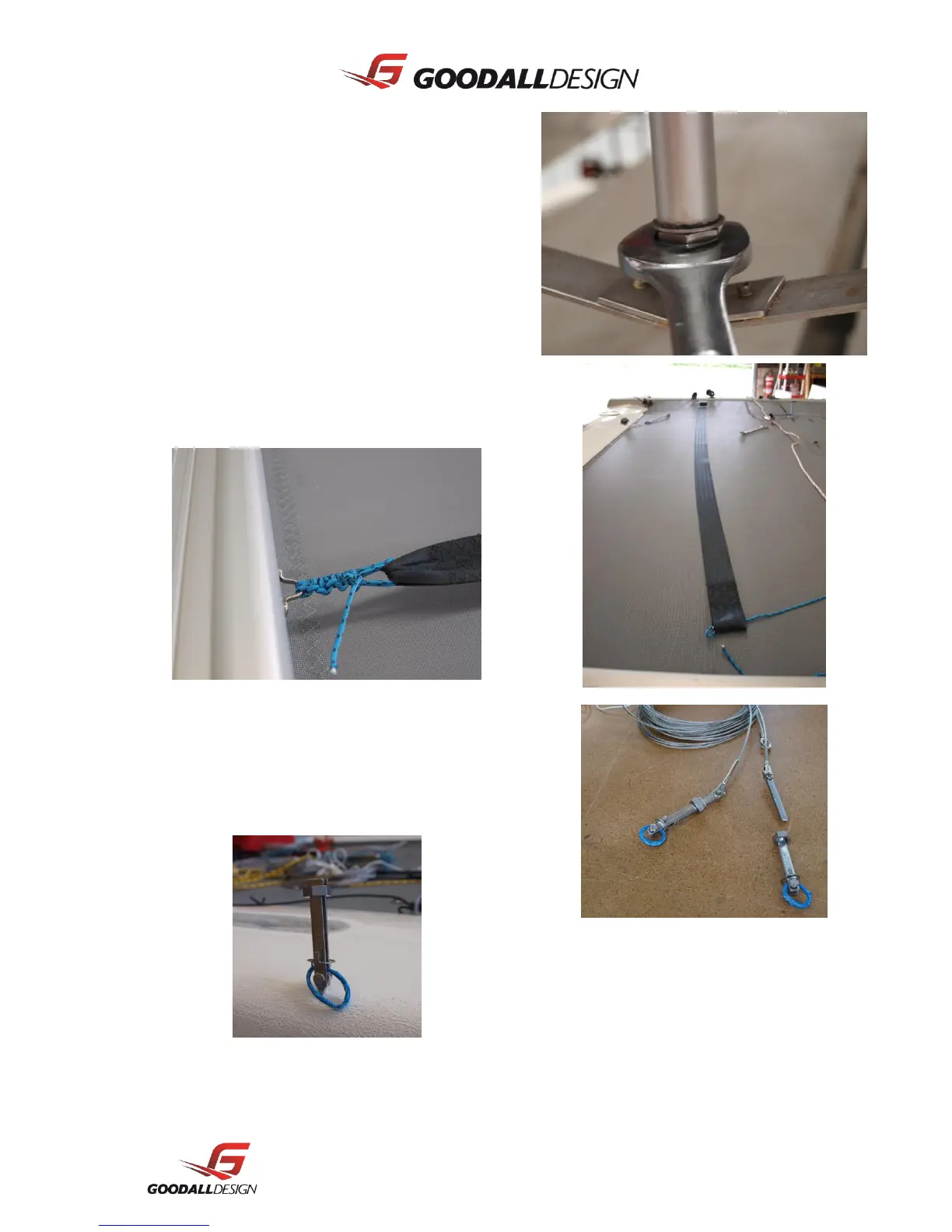

12. After the platform has been assembled, the
dolphin striker will need to be tensioned. Use
a 24mm spanner to extend the striker post
between the front beam and the striker strap.
The front beam should bow up in the centre
(10mm).
13. Toe straps have been provided on the
trampoline. Tie the toe straps to the saddles
on the rear beam and tighten to preference.
14. Remove the bottom half of the Stamasters
from the side stays and attach to the side
chain plates with the locknut on the inside
and the control line loop facing forward (to be
used with any control line).
15. The Continuous Cunningham system should have been already threaded from your dealer, if not,
