9. Refit the beam bolts that were removed in
step 7. You will require a 2
nd
person to push
the bows apart to achieve this. Then tighten
the remaining bolts to 20 N/m.

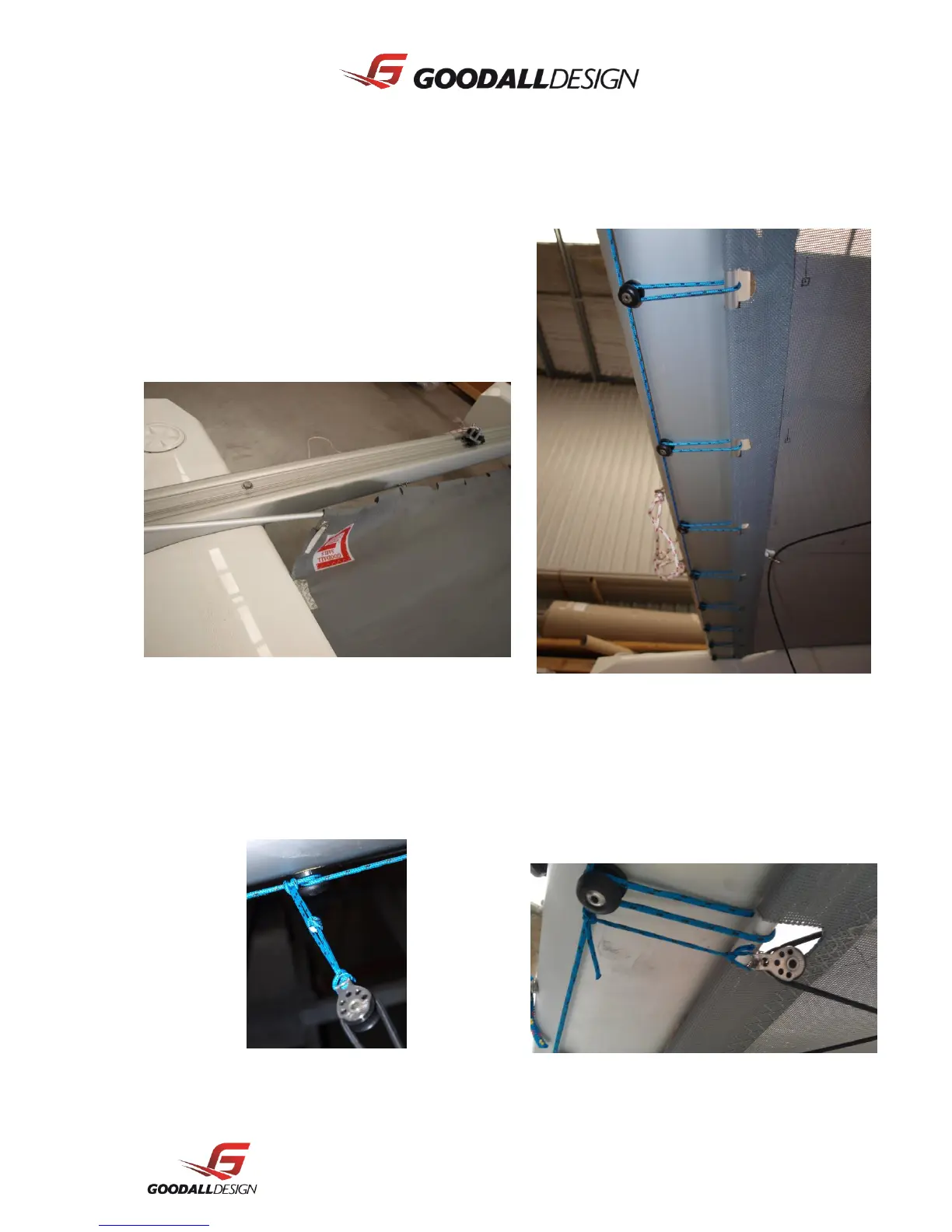

10. Slide the alloy tube into the pocket at the rear
end. Use the 3mm cord to lace the tramp to
the rope buttons on the rear beam as per the
picture. By starting at one side, tighten the
lacing as much as possible and tie at the
other end.
All cords and bungees will be pre-fitted at the
factory. Refer to the systems section of this
document for diagram.
