Electrical Connection
24
User Manual V1.0-2022-03-22
Inverter
PV String
GM1000
Utility Grid
Loads
Circuit
Breaker
Circuit
Breaker
Meter
Power Limit Network
Load Monitoring Network

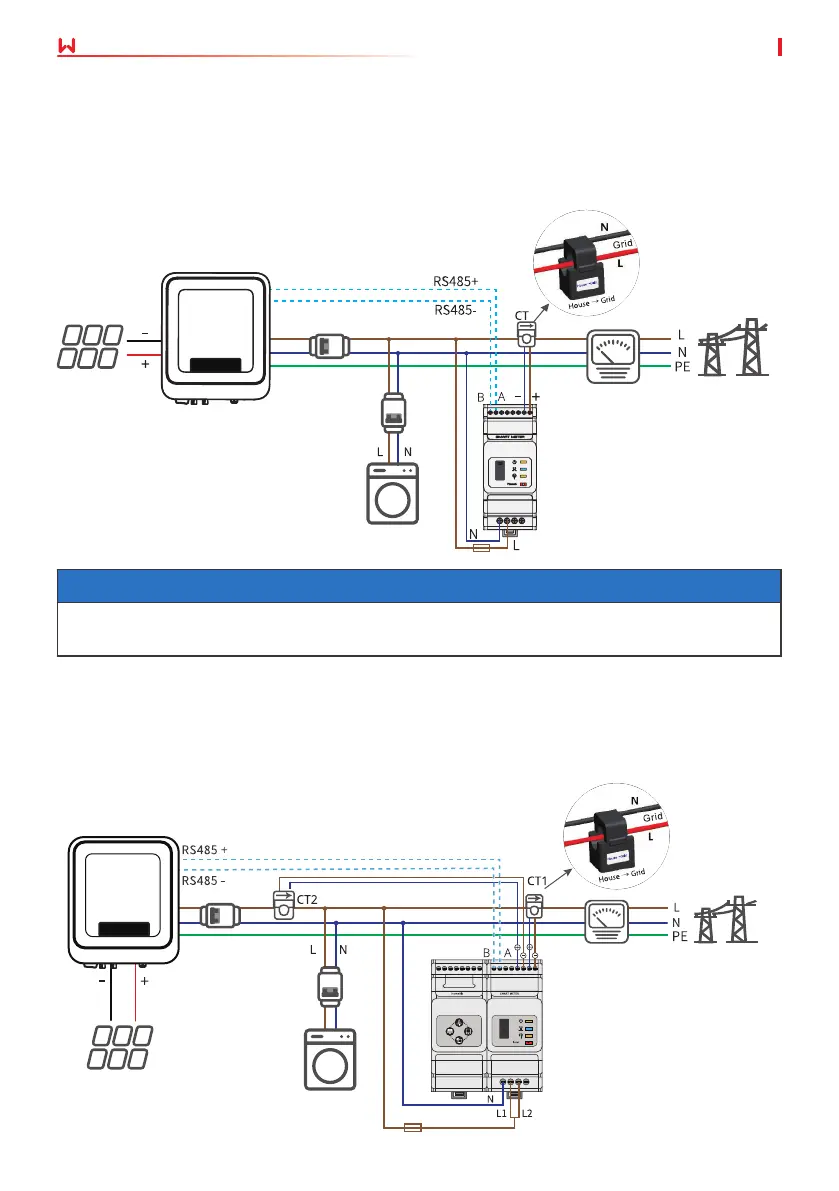

With the HomeKit device and two CTs, the inverter output data and on-grid data can be
accurately measured to calculate the load electricity consumption. The operating data will be
uploaded to the cloud via WiFi or LAN to realize 24 hours real-time load electricity consumption
monitoring.
The PV station generates power for self-consumption, but the electric equipment cannot
consume all the generated power. The inverter can monitor the on-grid electric data in real-time
and adjust the output power via a smart meter to avoid the residual current feeding back to the
utility grid.
Inverter
PV String
HK1000
Utility Grid
Loads
Circuit
Breaker
Circuit
Breaker
Meter
6.5 Communication
6.5.1 Communication Network Introduction
Notice
After completing cable connections, set related parameters via LCD or SolarGo app to enable
export power limit control or output power limit control.
