8 System Commissioning

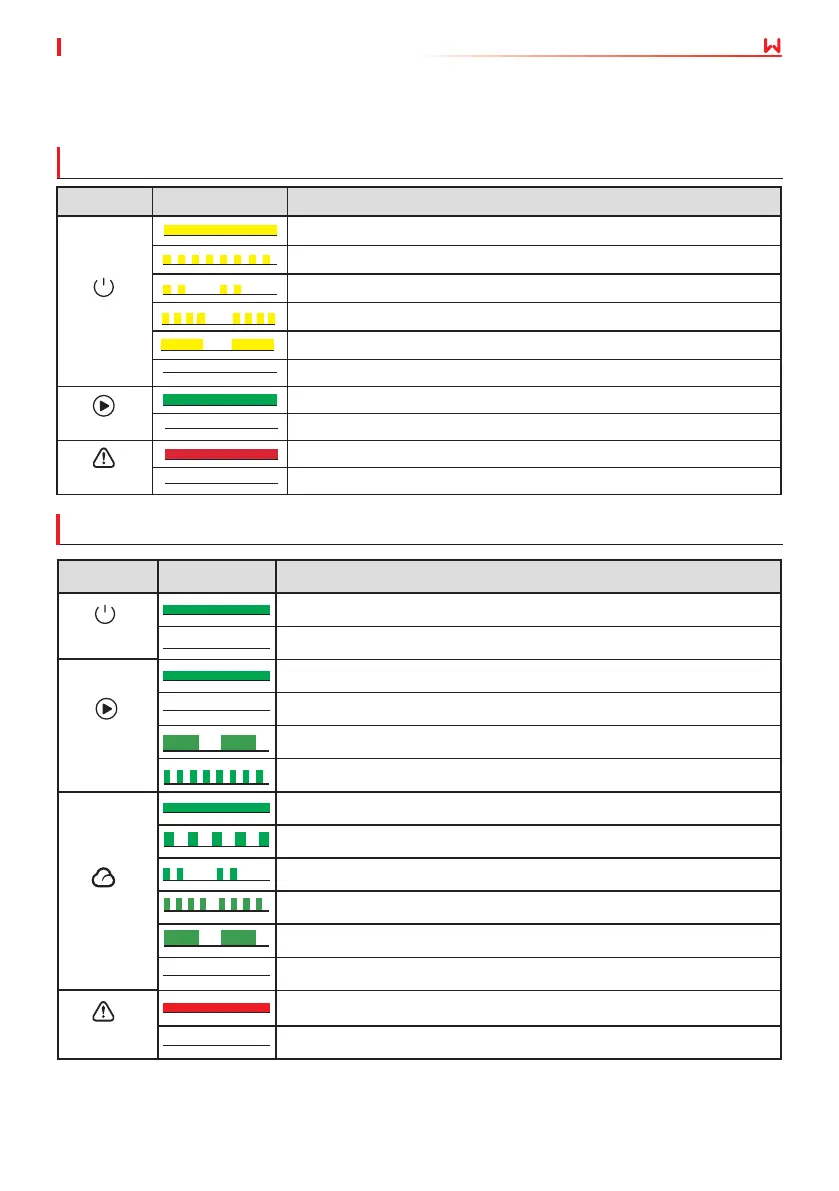

8.1 Indicators and Buttons
With LCD
Without LCD
Indicator Status Description
ON = Wi-Fi IS CONNECTED/ACTIVE
BLINK 1 = Wi-Fi SYSTEM IS RESETTING
BLINK 2 = NOT CONNECTED TO THE ROUTER
BLINK 4 = Wi-Fi SERVER PROBLEM
BLINK = RS485 IS CONNECTED
OFF = Wi-Fi IS NOT ACTIVE
ON = THE INVERTER IS FEEDING POWER
OFF = THE INVERTER IS NOT FEEDING POWER AT THE MOMENT
ON = A FAULT HAS OCCURRED
OFF = NO FAULT
Power
Power
Operating
Operating
Faulty
Indicators Status Description
ON= EQUIPMENT POWER ON
OFF= EQUIPMENT POWER OFF
ON= THE INVERTER IS FEEDING POWER
OFF= THE INVERTER IS NOT FEEDING POWER
SINGLE SLOW FLASH= SELF CHECK BEFORE CONNECTING TO THE GRID
SINGLE FLASH = CONNECTING TO THE GRID
ON= WIRELESS IS CONNECTED/ACTIVE
BLINK 1 = WIRELESS SYSTEM IS RESETTING
BLINK 2 = WIRELESS ROUTER PROBLEM
BLINK 4 = WIRELESS SERVER PROBLEM
BLINK = RS485 IS CONNECTED
OFF= WIRELESS IS NOT ACTIVE
ON= A FAULT HAS OCCURRED
OFF= NO FAULT
Faulty
