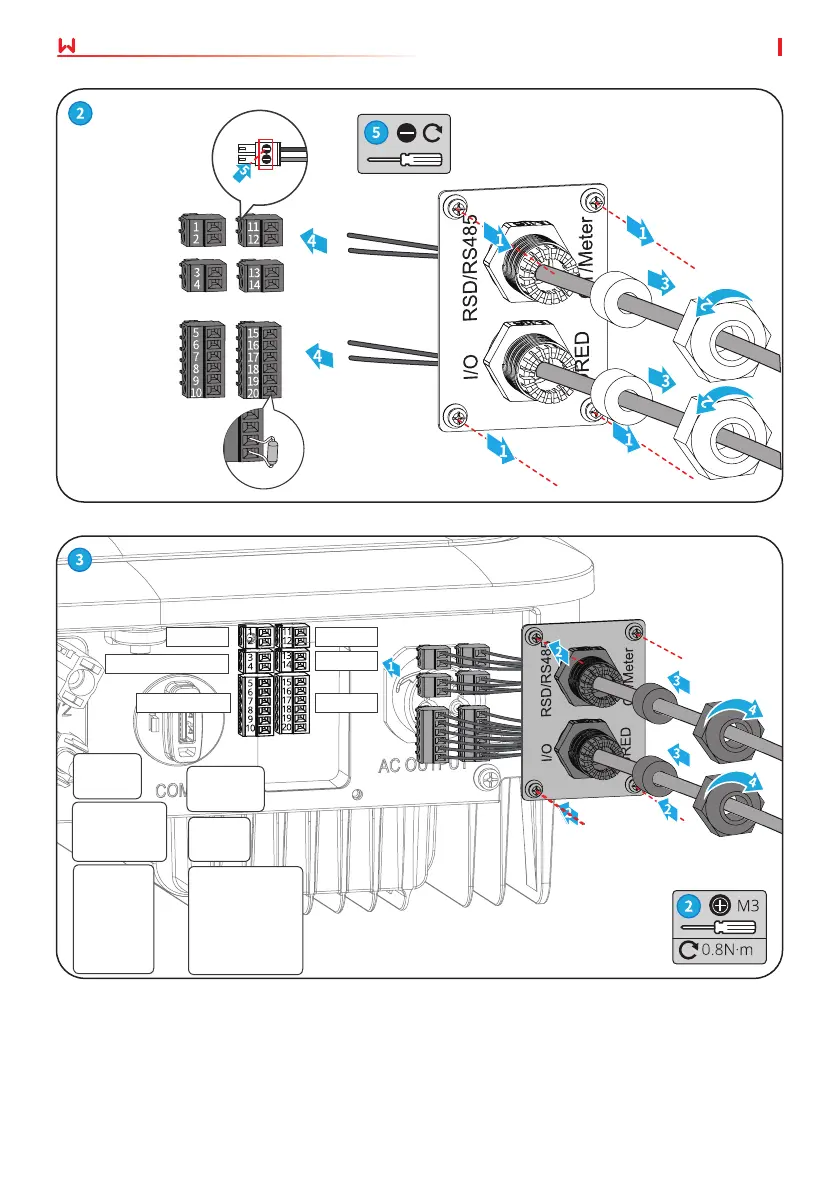

Electrical Connection
26
User Manual V1.0-2022-03-22
RS485
1: RS485+
2: RS485-
Meter
11: Meter+
12: Meter -
CT
13: CT+
14: CT-
Remote
Shutdown
3: RSD+
4: RSD-
Dry contact
5: I/O1+
6: I/O1-
7: I/O2+
8: I/O2-
9: I/O3+
10: I/O3-
DRED
15: DRM1/5
16: DRM2/6
17: DRM3/7
18: DRM4/8
19: REFGEN
20: COM/DRM0
Dry contact
Remote Shutdown
RS485
Meter
CT
DRED
