Goodwe GW10K-DT User Manual

NOTE:
Download SolarGo App from Google Play Store or Apple App Store to
complete the system operation if the inverter has no LCD. You can also
scan the QR code to download it.
SolarGo APP
5.2 User Interface And Syetem Configuration
5.2.1 Operation Method
There are two modes of button operation: Short press the button and long press the button.
In all levels of menu, if no action is taken, the backlight of the LCD display will switch off, the
display will automatically revert to the first item of the first level menu, and any modifications
made to the data will be stored into internal memory.
5.2.2 Set Safety Country
If display shows "GW6K-DT Pac=6000.0W", then long press the button to enter the second level
menu. Short press to browse the countries available. Please wait after choosing the suitable
country's safety setting, the display will show "setting..." and skip to "Set OK" or "Set Fail".
5.2.3 Display
A schematic of the display screen is shown as below:
Display area is divided as follows:
Normal
Pac=6000.0W
Line 1
Line 2
5 System Operation

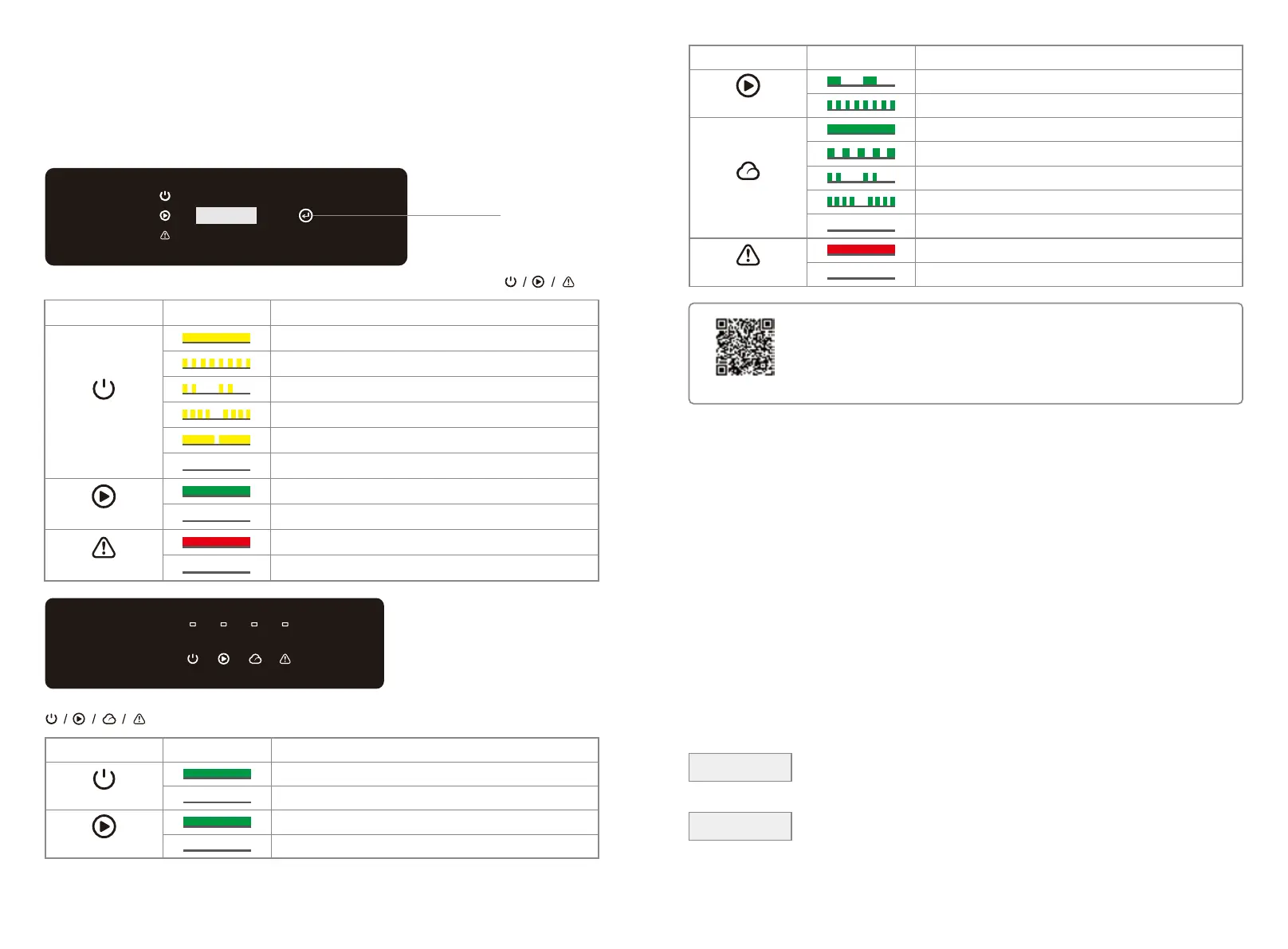

5.1 LCD Panel And LED
As a human-computer interaction interface, LCD display panel comprises of LED indicators,
buttons and LCD display on the front panel of the inverter.LED indicates the working status of the
inverter.Buttons and LCD are used for configuration and viewing parameters.
Inverter with LCD, indicator lights in Yellow/Green/Red correspondently refer to
For inverter without LCD, indicator lights in Green/Green/Green/Red correspondently refer to
Explanation
ON = Equipment power-on
OFF= Equipment power-off
ON = Inverter is feeding power
OFF= Inverter is not feeding power
StatusIndicator
Power
Run
Explanation
SINGLE SLOW FLASH = Self check before grid connect
SINGLE FALSH = Will connect with grid
ON = WiFi connected / active
BLINK 1 = Wireless system resetting
BLINK 2 = Wireless routre problem
BLINK 4 = Wireless server problem
OFF = Wireless not active
ON = Fault occurred
OFF = No fault
StatusIndicator
Run
SEMS
Fault
Button
Explanation
ON = WiFi connected/active
BLINK 1 = WiFi system resetting
BLINK 2 = Not connect to router
BLINK 3 = WiFi server problem
BLINK = RS485 connected
OFF = WiFi not active
On = Inverter is feeding power
OFF = Inverter is not feeding power at the moment
On = Fault occurred
OFF = No fault
StatusIndicator
Power
Run
Fault
1817
