The default setting for shadow optimizer is disabled.
Please do not enable the function when there’s no shadow on panel. Otherwise it could
lead to generate less power.
Press the key until enter Shadow Optimize menu. When it shows“ Shadow MPPT
OFF ”, it means the shadow optimizer is on. Press the key 25 to disable the function.
(6) Power limiting function setting
The Operations that the ON/OFF of power limiting function (the default is OFF) and the
power limiting settings (the default is 2% rated) are shown below:
Note:
If the power limiting function is ON, the maximum output power of the inverter will be
limited at the power limiting setting value while the inverter is without the power limmiting
device (such as a CT/Meter) or the power limiting device is out of work.
You need to enter a password before setting up power limit . The default password is
“1111”.(only for Australian security regulations)
(7) Operation of Display when commissioning.
When the input voltage reaches the inverter turn-on voltage, the LCD starts to work, the
yellow light is on and the LCD displays“ Waiting ”. More information will be displayed
within a few second. If the inverters is connected to the grid, “ Checking XXs ” will be
displayed and a countdown will commence from 30 seconds. when it shows “ 00S ”you
will hear the relay triggered 4 times. The LCD will then display “ Normal ”. The instant
power output will be shown at the left bottom of the LCD.

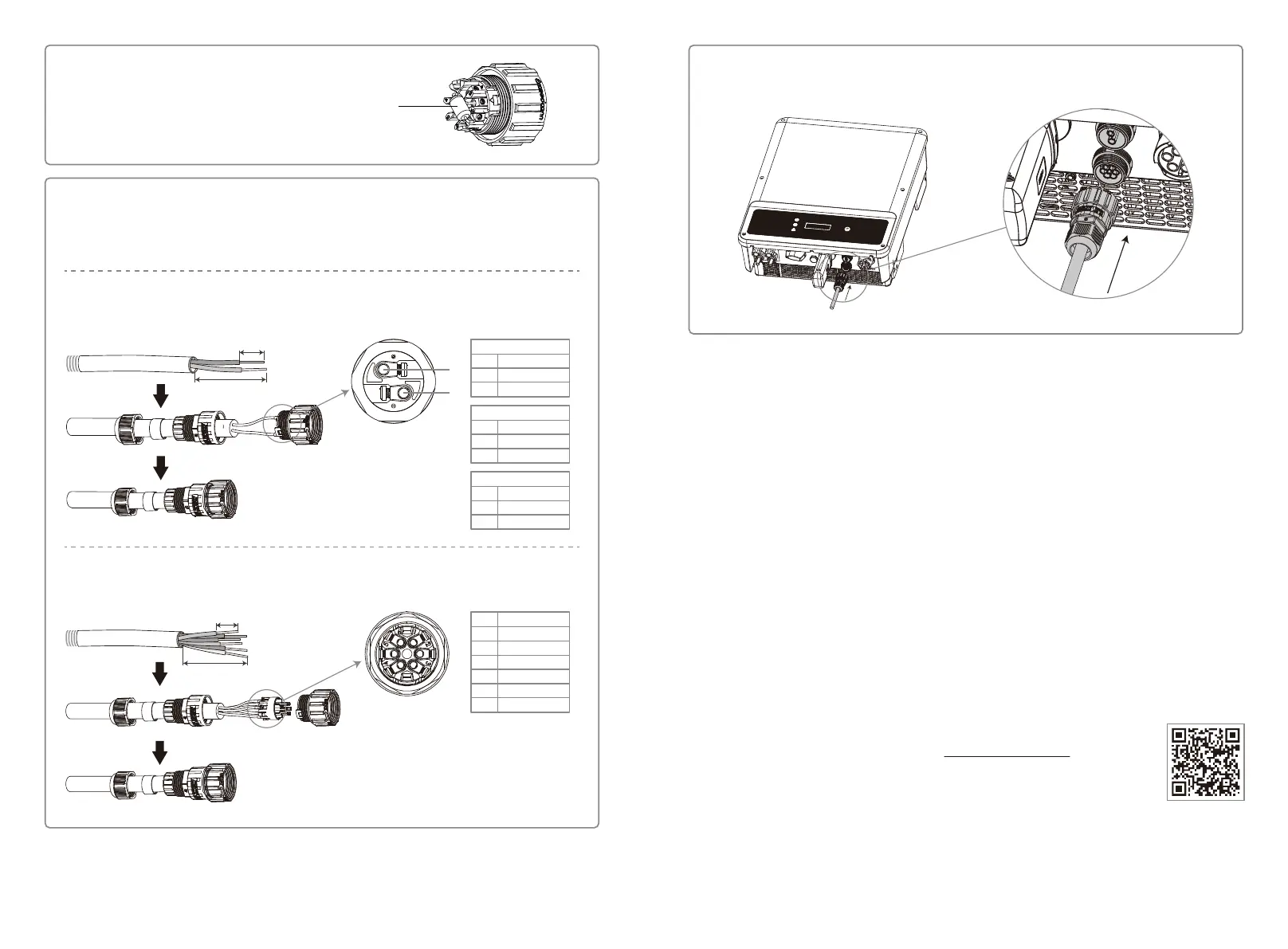

4.4 Wi-Fi Reset & Wi-Fi Reload
The two functions are only available for Wi-Fi model inverters.
Wi-Fi reload function is used to change the Wi-Fi configuration to default value.
Please configure the Wi-Fi again as 3.4.5 after using the function.
Press the key until the LCD displays “ Wi-Fi Reload ”, then long press (2S) until the LCD
displays "Wi-Fi Resetting...". Stop pressing and wait for the screen showing“ Wi-Fi Reset
OK ” or “ Wi-Fi Reset Failed ”.
Press the key until the LCD displays “ Wi-Fi Reload ”, then long press (2S) until the LCD
displays “ Wi-Fi Reloading... ”. Stop pressing and wait for the screen showing “ Wi-Fi
Reloading OK ” or “ Wi-Fi Reloading Failed ”.
4.5 Special Adjustable Setpoints
The inverter has field adjustable function,such as trip points,trip times, reconnect times,active
and invalid of QU curve,PU curve.
It is adjustable through special software ,if you want to use it ,plaese contact with after sales.
The methods document of using the software can download from goodwe website or contact
with after sales.
4.3 Error message
An error message will be displayed on the LCD if a fault occurs.
Error mess
Fac Fail
Isolation Fail
Vac Fail
PV Over Voltage
Over Temperature
Utility Loss
Description
Grid frequency out of pemissible range
Grund insulation impedance is too low
Grid voltage out of permissible range
Overvoltage at DC input
Over temperature on the case
Utility is unavailable
Long press 2S
Long press 2S
Long press 2S
Long press 2S
Long press 2S
Set Power Limit
XXX %
Short press to select
Number 0 or 1
Short press to select
Number 0~9
Short press to select
Number 0~9
Short press
Or
Short press
Short press
Or
Short press
Short press
Set OK
Set Fail
Wait 10s
Wait 10s
Wait 10s
Setting...
PF Adjust
Pac = 6000W
Shadow MPPT OFF
Pac = 6000W
Power Limit OFF
Pac = 6000W
Power Limit ON
Pac = 6000W
Set Power Limit
XXX %
Shadow MPPT ON
Pac = 6000W
Set Power Limit
XXX %
Set Power Limit
XXX %
Long press 2S
