Page #6 background imageLoading...
Page #6 background image
Max
15°

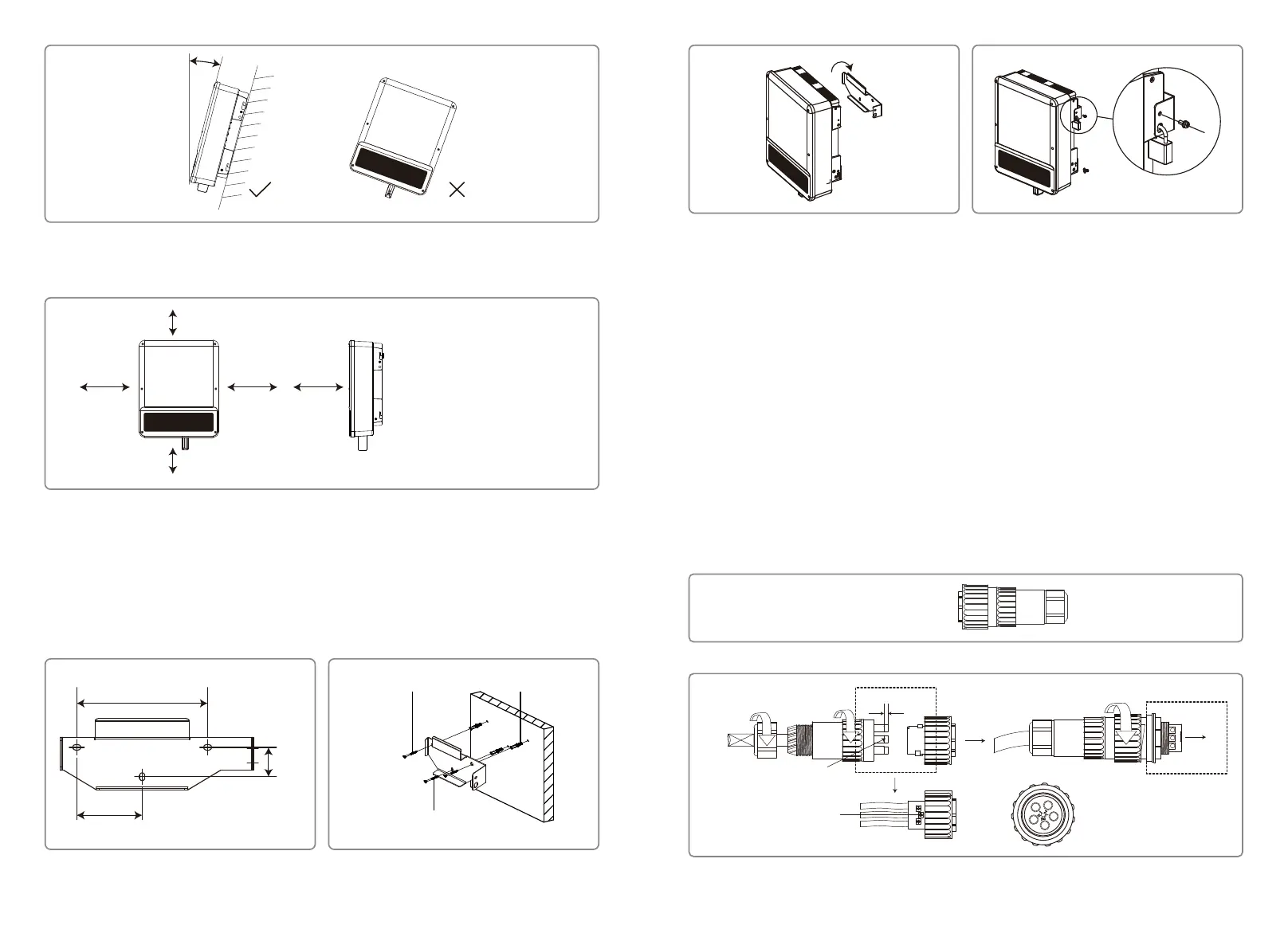

For dissipation of heat and convenience of dismantling, clearnaces around the inverter must
meet the standard as shown below :
The installation position should not prevent access to the disconnection means.
Upward
Downward
Front
Both sides
-------------300mm
---------500mm
----------------300mm
----------200mm
200mm
300mm200mm
500mm
500mm
4.3 Electrical Connection
4.3.1 Connection To Grid (AC Side Connection)
1. Measure the voltage and frequency of grid-connected access point, and make sure it is in
accordance with the grid-connected standard of inverter.
2. It is recommended to add breaker or fuse to AC side. The specification should be more than 1.25
times of rated of AC output current.
3. The PE line of inverter should be connected to the earth, make sure that the impedance
between the neutral wire and earth wire is less than 10 ohm.
4. Disconnect the breaker or fuse between the inverter and the utility.
5. Connect the inverter to the grid as follows: The wiring installation method on the AC output
side is shown as below.
6. The AC line construction shall be such that if the cord should slip from its anchorage, placing a
strain on condutors, the protective earthing conductor will be the last to take the strain,such
as the PE line is longger than L and N.
There is only one type of AC connector, VACONN Series.
The installation instruction of VACONN series.
VACONN Series
fasten screw cap clockwise fasten screw cap clockwise
10mm
Inverter
Fastening three screws to
ensure each screw head is
not exceeding the surface
Material (Annealed copper wire)
Pin1 ------ R phase
Pin2 ------ S phase
PinL ------ T phase
PinN ------ T phase
PinPE ----- PE phase
4.2.2 Mounting Procedure
1. Use the wall-mounted bracket as a template and drill holes in the wall, 10 mm in diameter and
80mm deep.
2. Fix the wall-mounted bracket on the wall by using the expansion bolts in the accessories bag.
3. Hold the inverter by the side groove.
4. Install the inverter on the wall-mounted bracket.
200mm
100mm
45mm
Mounting Bracket
Expansion Pipe
Self-tapping Screws
0807
