06 Electrical ConnectionUser Manual V1.1-2022-12-20
N and PE cables shall be wired separately in the Main Panel.

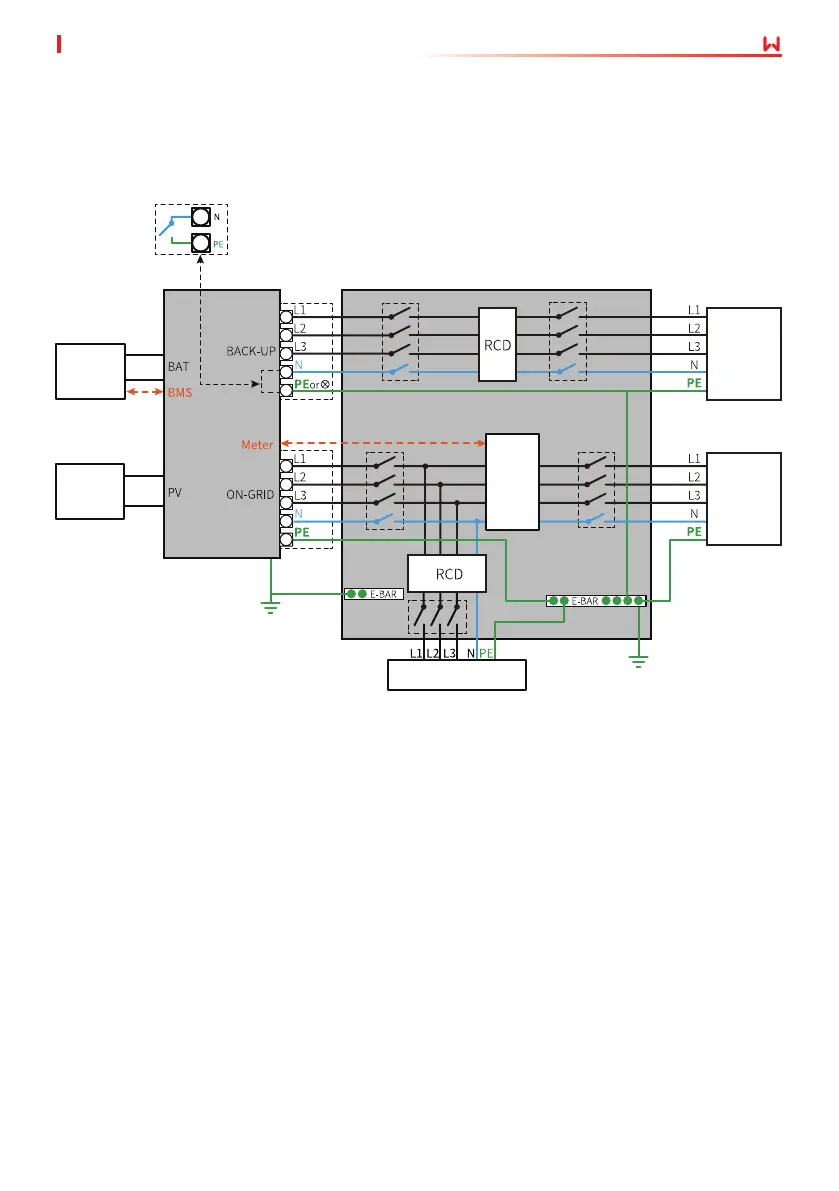

The following diagram is applicable to areas except Australia, New Zealand, South Africa.
Main PanelInverter
Battery
PV
string
• The internal relay will automatically connect the N wire and PE cable
when the inverter is in BACK-UP mode.
• The internal relay will automatically disconnect the N wire and PE
cable when the inverter is in ON-GRID mode.
BACK-UP
loads
Household loads
Utility
grid
Smart
meter
To Next Page
