Goodwe GW15K-ET User Manual

45

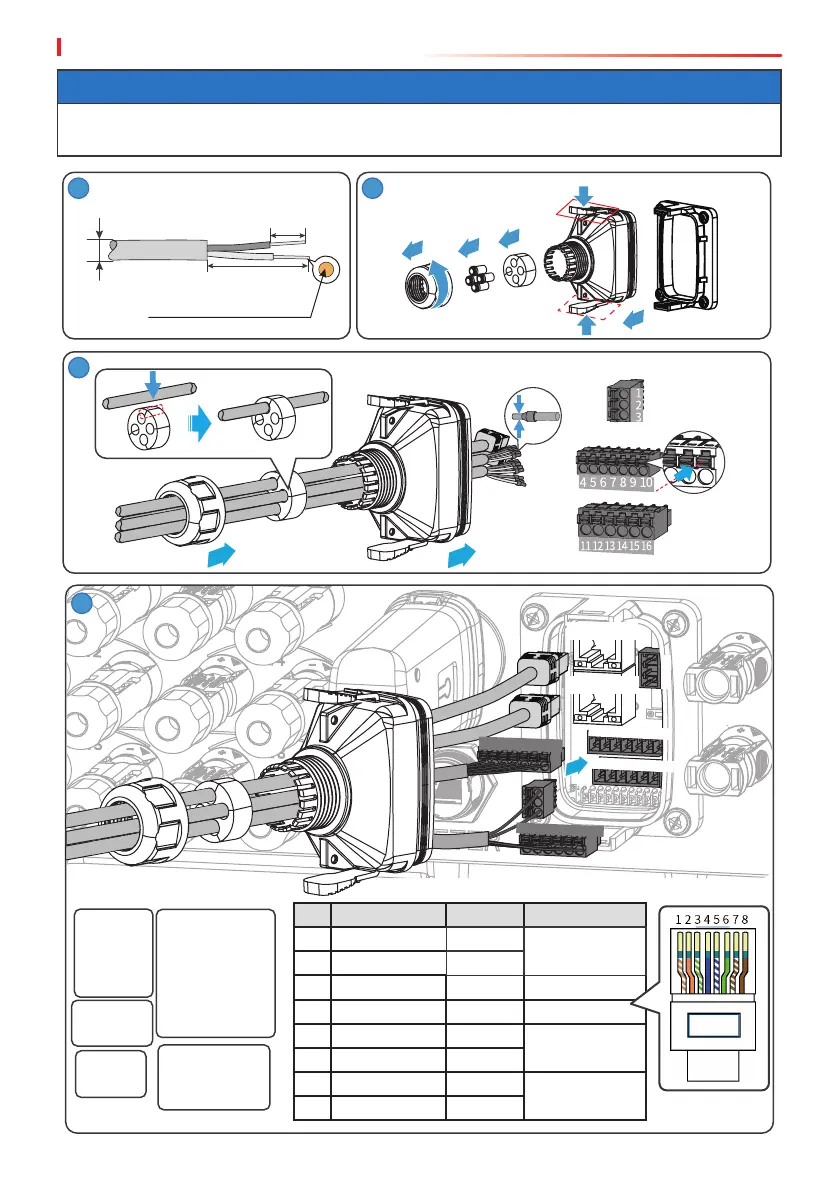

06 Electrical Connection
User Manual V1.6-2024-03-20
NOTICE
• To ensure waterproof protection, do not remove the waterproof seal of the unused ports.
• RJ45 connector with the following denition can be connected:
DRED/RCR:
11: COM/DRM0 or
REF_1
12: REFGEN or REF_2
13: DRM 4/8 or DI_4
14: DRM 3/7 or DI_3
15: DRM 2/6 or DI_2
16: DRM 1/5 or DI_1
Dry Contact
1: DO1-
2. NC
3: DO1+
9: DO2-
10: DO2+
Power Supply
4: GND
5: 12V_S
RSD Control
5: 12V_S
6: RSD_12V
Remote Shutdown
7: GND
8: Remote
Shutdown
PIN Color EMS/PAR Denition
1 Orange and White EMS_485_A
EMS485
communication
2 Orange EMS_485_B
3 Green and White NC -
4 Blue GND signal ground wire
5 Blue and White CAN_L
CAN bus
6 Green CAN_H
7 Brown and White SYN_BUS1
Parallel syn signal
8 Brown SYN_BUS2
1 2
2
5
6
4
3
1
1
6-8mm
45mm
Φ: 6mm
0.2mm
2
≤S≤0.3mm
2
3
2
4
1
1
5
3
1
4
5
1
2
3
11 12 13 14 15 16
4 5 6 7 8 9 10
11 12 13 14 15 16
1
2
3
4 5 6 7 89 10
EMS/PAR
EMS/PAR
