Gorilla Playsets Landing - Step 34: Roof Supports

Step 34: Roof Supports

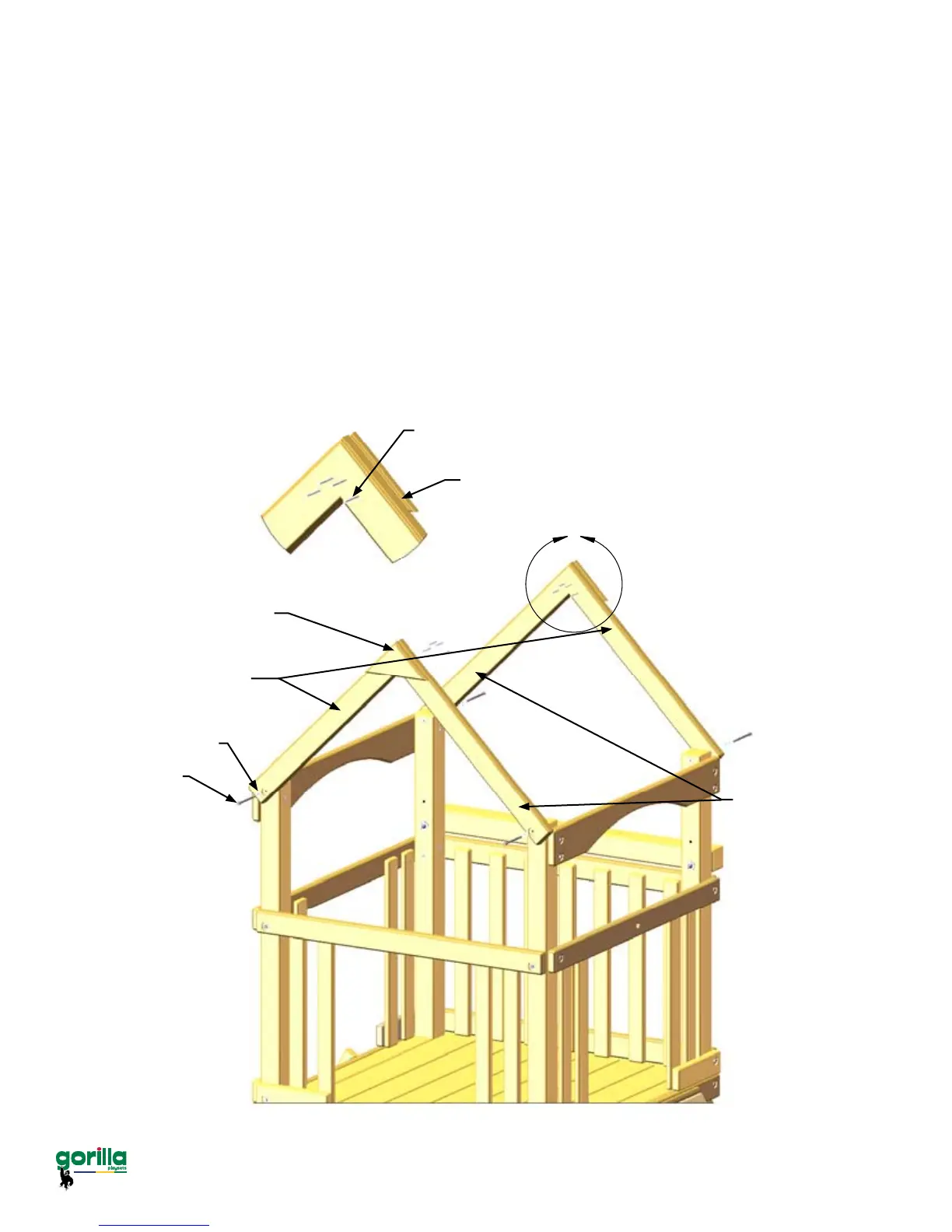

1: Attach one 2 x 4 x 35-1/2” Roof Support-Left and one 2 x 4 x 35-1/2” Roof Support-
Right to the front and rear of the play set with 5/16” x 4-1/2” hex bolts and 5/16”
washers. Note the counter-sunk holes face out. The roof supports will meet to form a
90
o
angle at the peak.
2: Place a 5/4 x 6 x 10-1/2” Roof Peak Support at the peak of the roof supports. on the
outside. Attach the roof supports to the Roof Peak Support with four 2” wood screws
from the inside. The Roof Peak Support should be ush to the roof supports on the top
surfaces.
A
DETAIL A
SCALE 1 : 8
2 x 4 x 35-1/2”
Roof Support-Left
5/16” x 4-1/2”
Hex Bolt
5/16” Washer
2” Wood Screw
2 x 4 x 35-1/2”
Roof Support-Right
5/4 x 6 x 10-1/2”
Roof Peak Support
5/4 x 6 x 10-1/2”
Roof Peak Support
Page 63
®
