10.4 INTERNAL JUMPER LOCATIONS
J23
J18
J17
J7
J6
J2
J18
J17
J23
J6
J7
J2

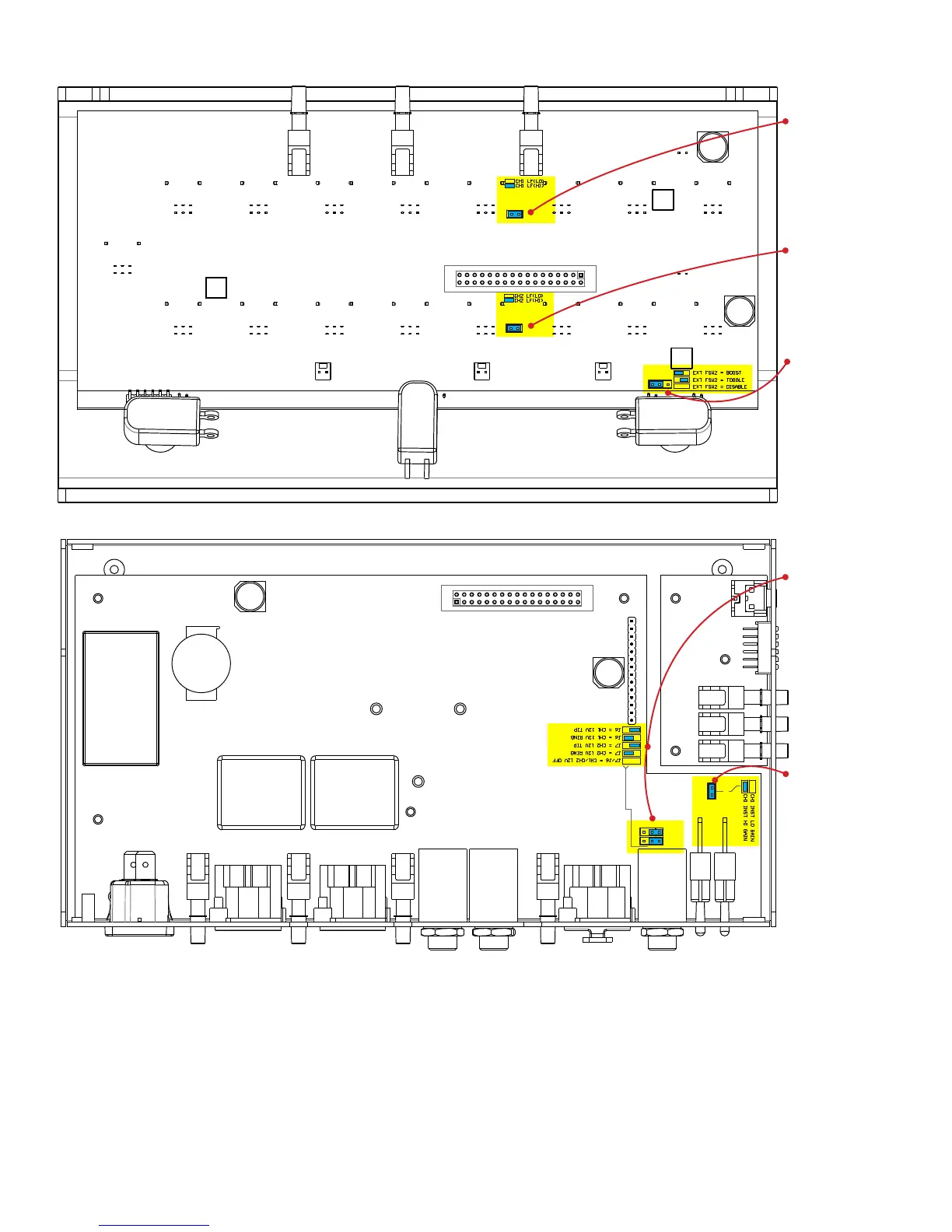

J18 - Sets the Ch1 EQ LOW corner frequency. LO position is 125Hz, HI position is 250Hz.
J17 - Sets the Ch2 EQ LOW corner frequency. LO position is 125Hz, HI position is 250Hz.
J23 - Sets the secondary external footswitch function. Options are boost, toggle or disable. Primary footswitch function is xed as
MUTE / TUNE.
J6 and J7- Congures 12V power, which can be applied to either channel’s tip, ring, or set to o. Set these according to how your
microphone / instrument is wired.
J2 - Sets the Ch1 instrument input gain range. Options are LO (3-44dB)and HI (21-62dB).
