3.Structure instruction

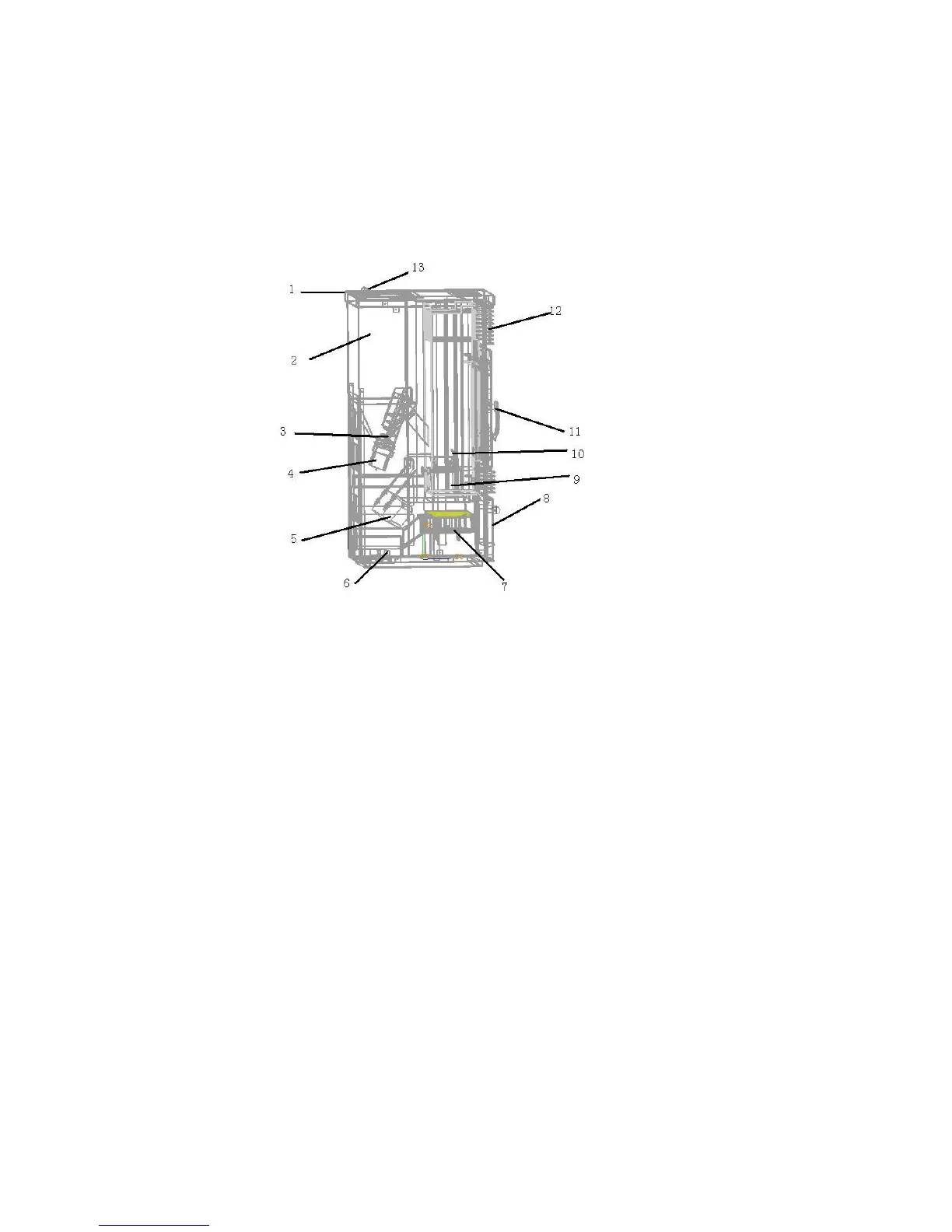

The stove is mainly made up of following items: (NB-P15 AS
EXAMPLE)
1. Hopper covers 2.hopper 3.auger 5.convertion blower 4. Auger motor 6.venting pipe 7. Exhaust
blower 8.front cover 9.ash drawer 10.fire shield board 11.stove door 12.heat exchanger 13.
Control board
The following is a list of main components and their functions
IGNITER
The STOVE comes equipped with an automatic igniter for lighting the fuel when the stove is in
lighting mode. There are two ways to light the wood pellet for our models. One is the igniter heats
wood pellet directly through the burn pot and then lighted by the combustion blower. The other
one is that the igniter lights the pellet directly. The igniter remains energized for the first eight
minutes of the lighting sequence.
VACCUM SWITCH
