- 12 - B.6.20.44-B
F22.060.02, issued on 01.98
Profiled sheet metal (wall support), stand, container cover, pump trolleys, mechanical
elevating trucks, pneumatic elevating trucks, pneumatic elevating equipment.
Most reciprocating pumps are fixed to the wall of a
building or machine by means of the profiled sheet metal.
If plugs are used for fixing, the drilling hole and screw
length must comply with the manufacturer’s
specifications.
When plugs and corresponding screws are supplied by
us, they comply with the Technical Product Description
B.17.90.01-P.
The stand is used for installation of the reciprocating
pumps on a level base.
The unit "Reciprocating pump with suction tube and stand"
is for rapid exchange of containers, it can be elevated in
order to exchange the container and also put in another
place. Here care should be taken that the stand area is
stable and has as little inclination as possible.
The units "reciprocating pump with suction system and stand" or "Reciprocating pump with
cup and stand" may not be installed as stand-alone equipment; they must be fixed to the floor.
The supplied plugs and associated screws comply with Technical Product Description
B.17.90.01-P.
The vessel cover lies free on the vessel rim and the
reciprocating pump can have its height adjusted at the
center of the cover
By adjusting the height, the unit can be adapted to a wide
variation of vessel bases.
In order to exchange vessels, the complete unit can be
simply raised.
If an agitator is used in the equipment, the directive on flammable liquids (VbF) prohibits the
use of highly flammable class AI and AII fluids.
The directive does not apply if at the place of work (in the container) AI or AII liquid is only
kept in such quantity as is sufficient to continue work.

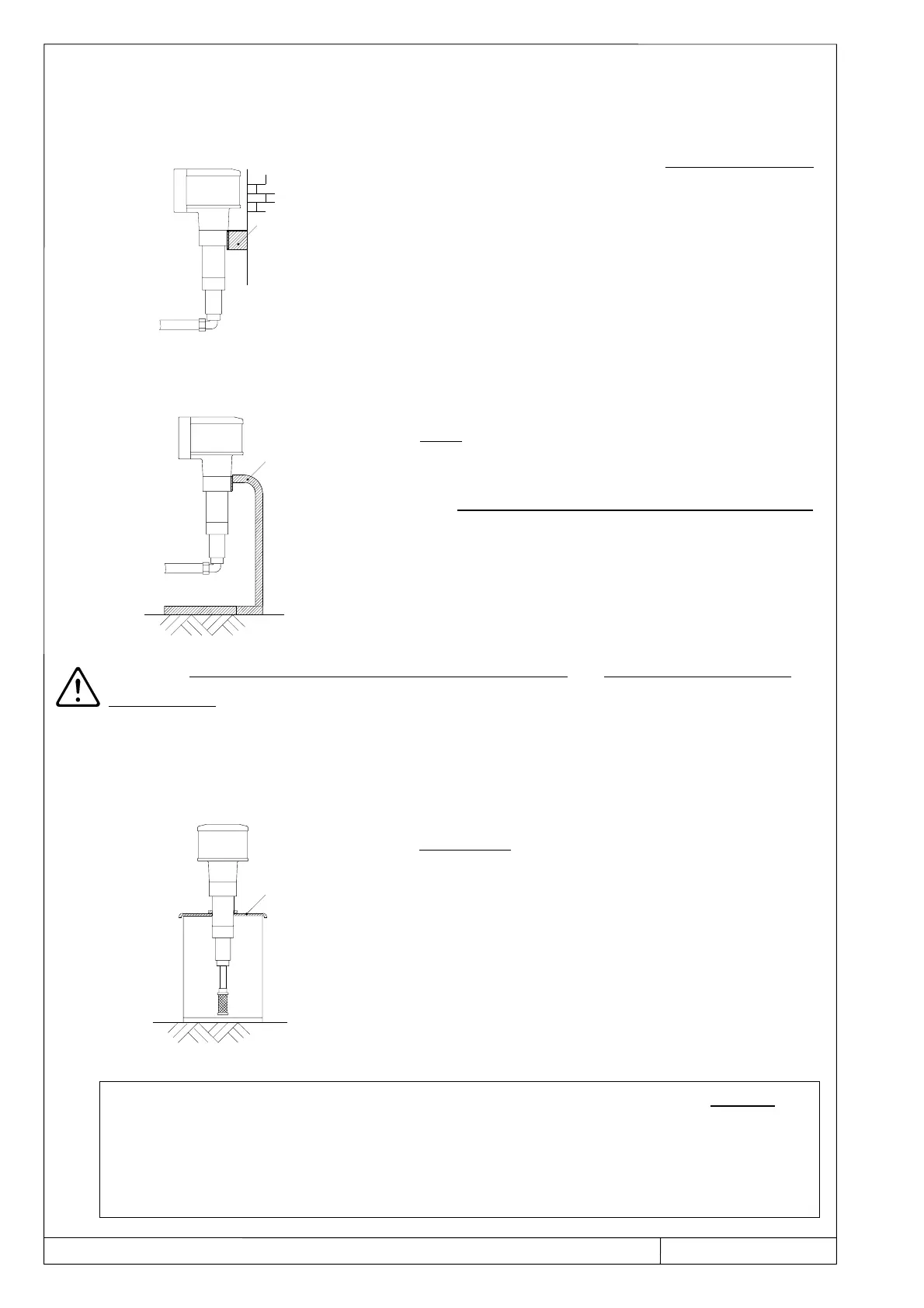

Profile sheet
Stand
Container
cover
