The pump trolleys are two-wheeled transport units. In their
function, they correspond to a bag truck
While in idle position, the load holder is located in front of the
wheels, in running position directly behind
The pump trolley Form I can only have one MERKUR 2000
reciprocating pump mounted on it without any add-on
equipment.
The pump trolley Form II enables the fitting of an additional
flow heater.
Since the trolley wheels cannot be locked, the floor surface on
which the pump trolleys are moved must incline as little as
possible (inclination
< 10°).
The occupied pump trolleys are not designed for setting down
abruptly with a lifting apparatus. The wheels are not electrically conductive. This means that in
hazardous locations, zone 1, the pump trolleys can only be used when specific measures are
taken. The carts can be used safely in zone 2, however.
The label on the right is affixed to the pump trolleys
and refers to the guidelines to be observed.
The lifting trolleys and have four
wheels. The undercarriage is
designed as a supporting base for
one container (30 l max.).
The lifting trolleys can only be
occupied with one MERKUR 2000
reciprocating pump without
add-on equipment.
Since the trolley wheels cannot be locked, the floor surface on which the pump trolleys are
moved must incline as little as possible (inclination
< 10°).
Fully equipped lifting trolleys are not constructed to be put down vigorously with a lifting tool.
The wheels are not electrically conductive.
Regarding the way they are used, the same applies as for the pump trolleys.
With the mechanical lifting trolley (form III), lifting, maintaining the load in an elevated position
and lowering to starting position is done manually.
- The screw with the star-shaped handle mounted on the side is used for clamping.
Observe
VBG 23, ZH 1/200

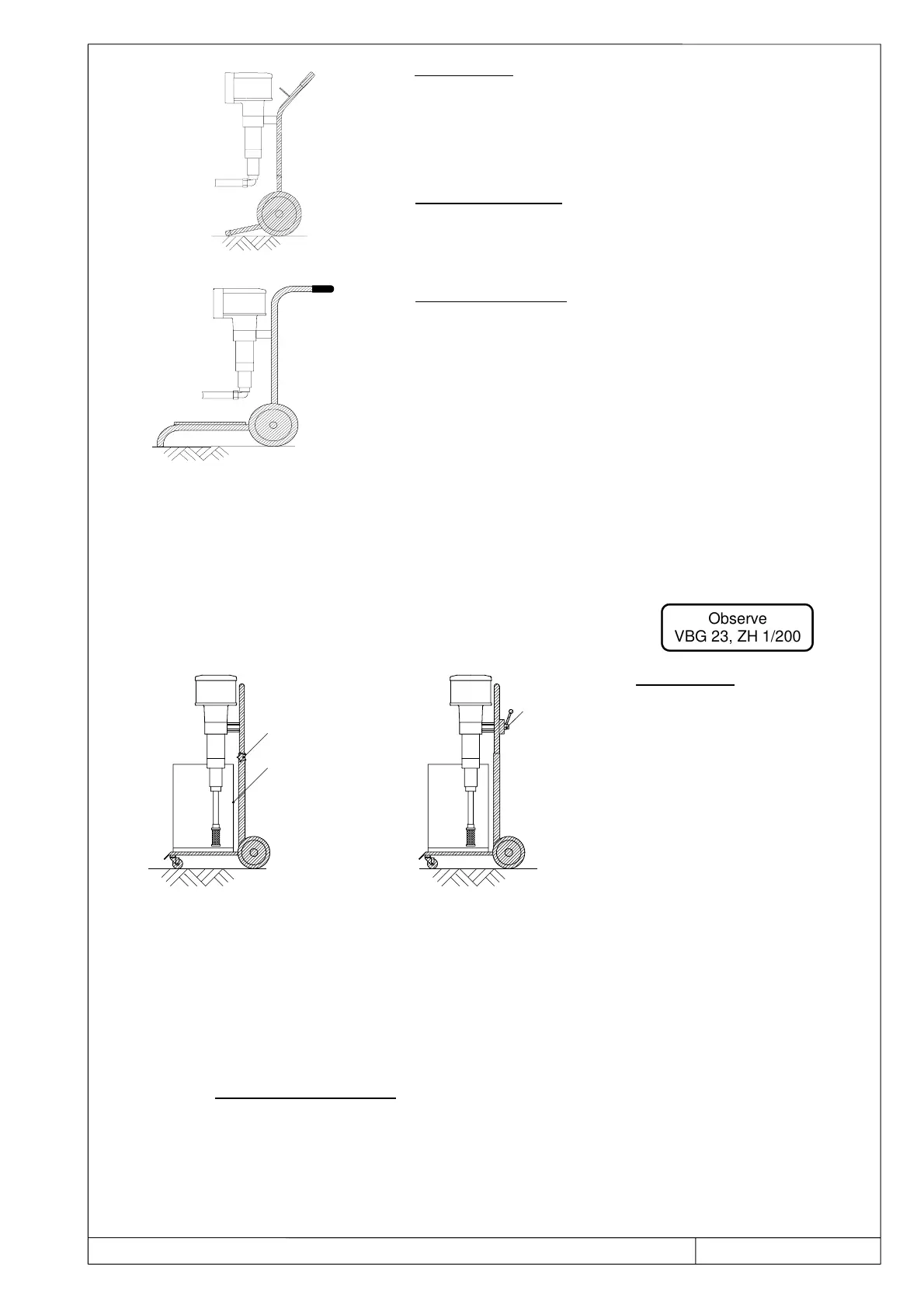

Form I
Form II
Form III
Star handle
Fluid container
Manual
lever valve
