- 14 - B.6.20.44-B
F22.060.02, issued on 01.98
Fast lowering (dropping) can be prevented by manual force.
Lifting height 400
Carrying capacity ca. 40 kg
As for the pneumatic lifting trolley (Form IV), the lifting, maintaining the load in an elevated
position and lowering to starting position is effected by means of a pneumatic hand lever
valve.
- Hand lever up = lift and hold
- Hand lever down = lowering into starting position
A built-in air pressure throttle valve prevents rapid lifting and lowering motion.
Lifting height 400
Carrying capcity about 40 kg
operating air pressure max. 7 bar
Pressure line DN 6
Like the stands and the lifting
trolleys, pneumatic lifting devices
are used for rapid container
change.

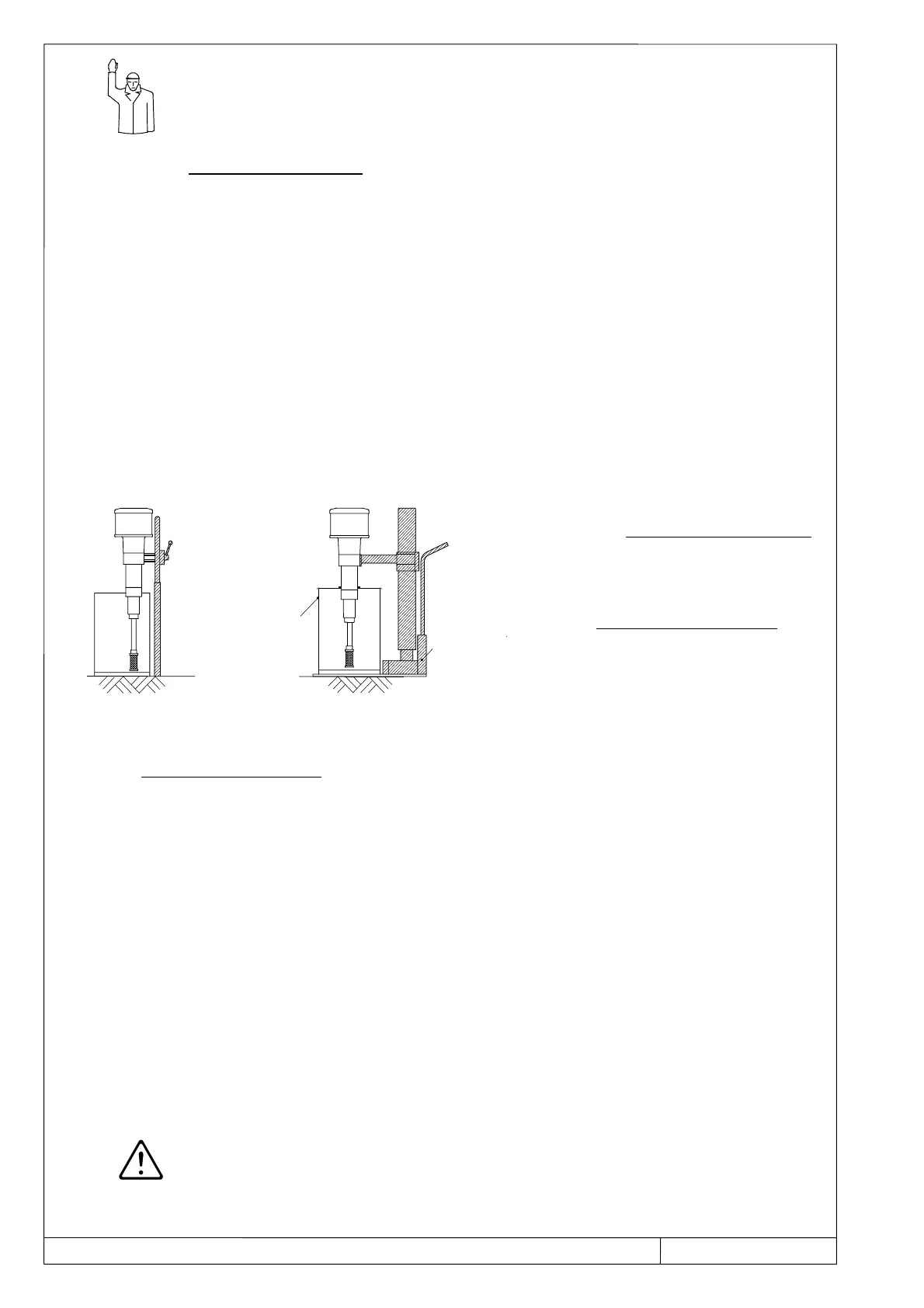

The lifting apparatus Form V
corresponds to the pneumatic
lifting trolley with regard to
function - (lifting apparatus
identical in construction).
The lifting apparatus Form VI is a one-pillar design (vertical lifting cylinder). The advantage of
this design is its horizontal swiveling capability.
- The reciprocating pump can be swiveled round from an empty to a full container.
Lifting, maintaining the load in an elevated position and lowering to starting position is effected
by means of a hand lever valve mounted on the side.
A built-in air pressure throttle valve prevents rapid lifting and lowering motion.
Specifications of pneumatic lifting equipment:
Travel of lift 430 mm
Working air pressure 0.3 bar to 1.5 bar
Pressure line DN 6
Fitting of the reciprocating pump also with "container cover with agitator".
The lifting apparatus must be secured to the floor. The supplied screws and plugs
comply with Technical Product Description B.17.90.01-P.
Form V
Form VI
Fluid
container
Manual
lever valve
