– The agitator is identical to the one described on page 8 and in the Technical Product
Description B.18.10.05-P.

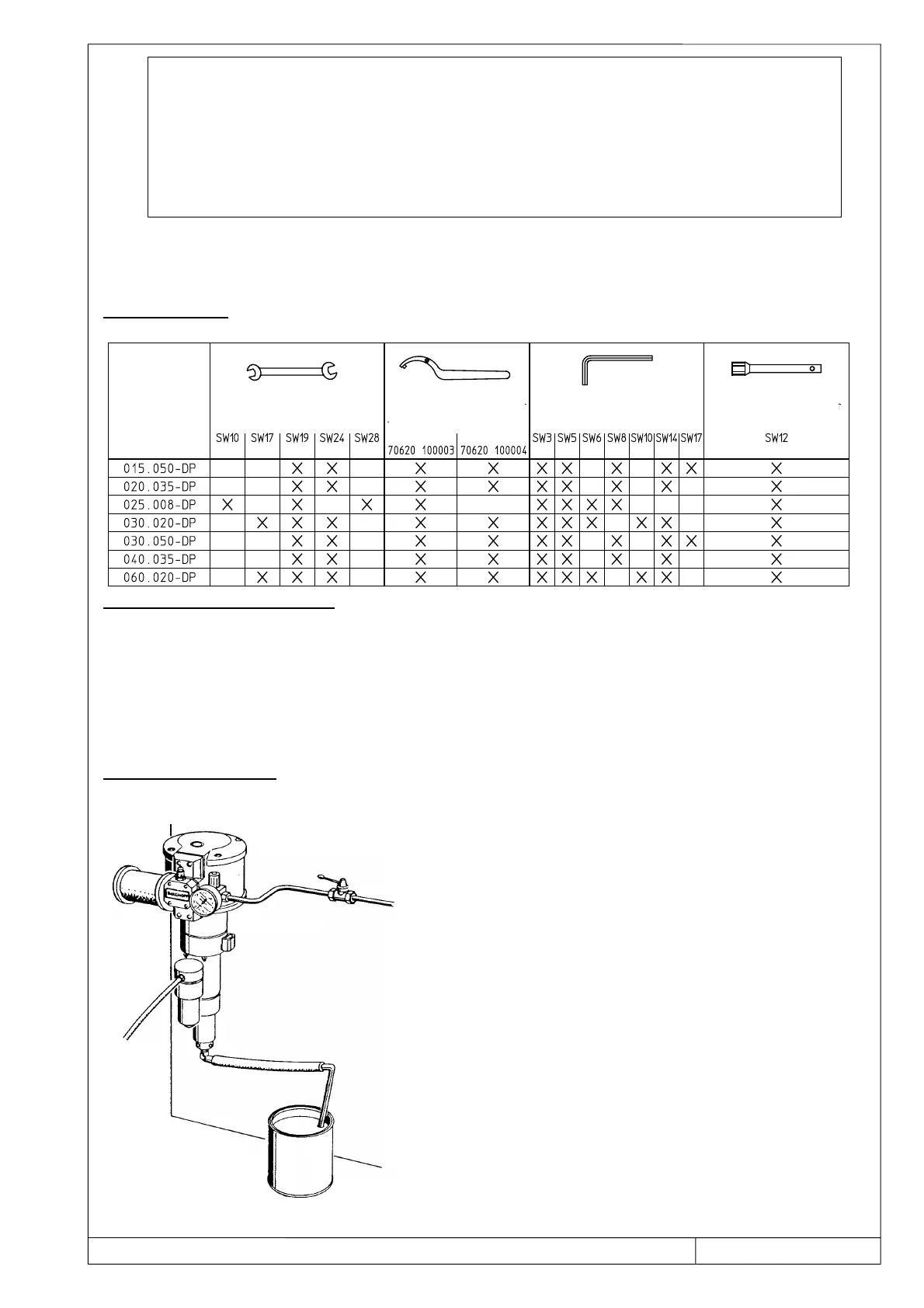

TOOL LIST
Open-ended Spanner DIN 895
SW 27 Air pressure hose line (air pressure supply)
SW 30/36 Connection piece for suction system / union nut
SW 35/36 T-connection piece / union nut
SW 17 Hose line DN 6, G 1/4 (fluid pressure system)
SW 22 Hose line DN10, G 3/8 (fluid pressure system)
INSTALLATION
INSTALLATION AND MOUNTING
Install or fit the reciprocating pumps in a vertical position.
- Wall level and load-bearing.
- Plugs and mounting screws must have correct
dimensions.
Do not install in confined enclosed areas (cabinets)
(malfunctioning due to icing of the air motor control). When
installing in hazardous locations, zone 1, you should
observe the guidelines for explosion prevention (EX-RL) ZH
1/10 (chapter E2), as regards assembly materials.
When a reciprocating pump with container cover and agitator is affixed to the lifting
apparatus, the Directive on Flammable Liquids (VbF) prohibits the use of this assembly
for highly flammable liquids Class AI and AII (agitator design not approved).
The directive does not apply if at the place of work (in the container) AI or AII liquid is
only kept in such quantity as is sufficient to continue work.
Reciprocating pump
Sickle spanner, adjustable
DIN 911
Tubular socket wrench
DIN 659
Open-ended spanner
DIN 895
35 to 60
60 to 90
