Graco 015.050-DP - REPAIR OF WEARING PARTS IN THE AIR MOTOR; REPAIR OF THE STUFFING

-
25
- B.6.20.44-B
F22.060.03, issued on 01.98

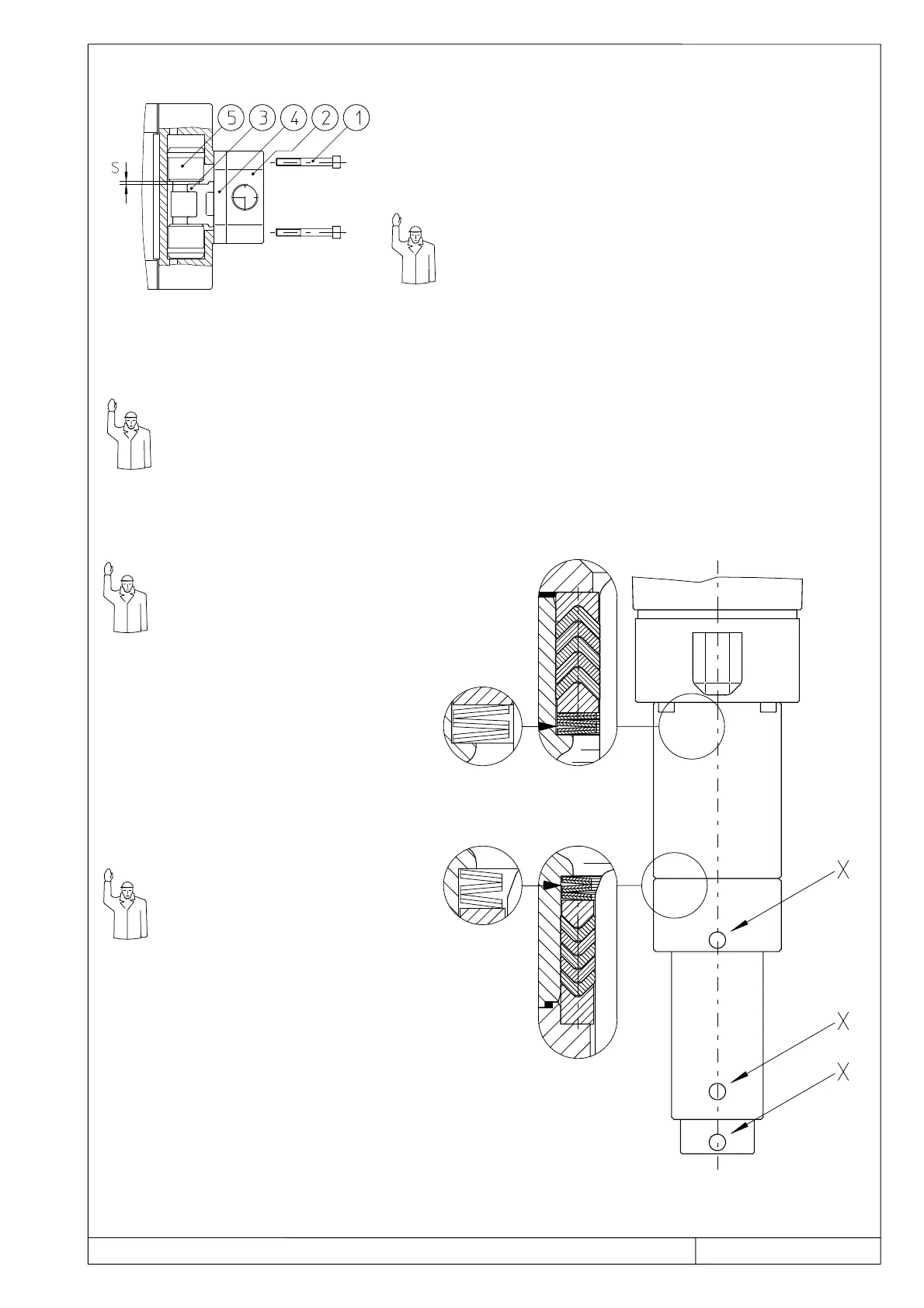

REPAIR OF WEARING PARTS IN THE AIR MOTOR
 Loosen the cheese head screws 1 and remove
 Remove the connection piece
2
 Replace the flat slide 3 and slide plate 4
The flat slide 3 and the slide plate 4 should always
be removed together.
If on replacing the flat slide, it is found that between the drive pin
5 and the new flat slide, the gap
"S" > 0.8, (wear at the drive pin) the drive pin must also be replaced.
The drive pin is supplied by us ready to be fitted with pre-stressed piston rings.
It must not be dismantled.
REPAIR OF THE STUFFING
When replacing the stuffing, pay
attention to the position and the
layering of the top packings and
spring washers.
All the stuffings should be
replaced as complete units.
– The top packings cannot be
replaced individually.
If the running surfaces of the step
piston show palpable signs of
wear (scoring, pitting), it must
also be replaced.
Position of the
spring washers
Layering of the top
packing
