Setup
8 332156E

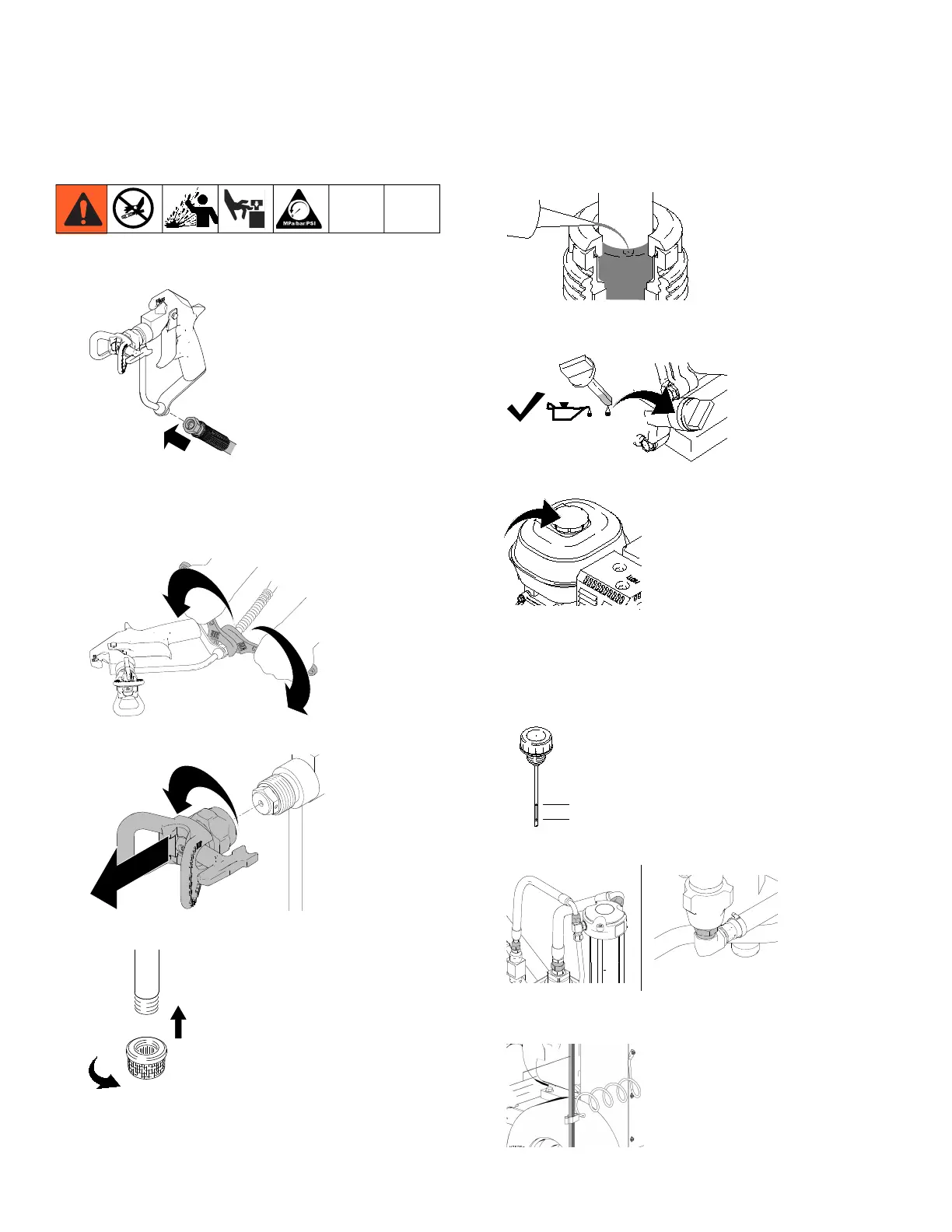

Setup
1.
Connect appropriate Graco high-pressure hose to
sprayer. Tighten securely.
NOTE: Remove second gun port plug for multiple
guns and repeat steps 1 - 4.
2. Connect other end of hose to gun and tighten fit-
tings securely.
3. Remove tip guard.
4. Install clean inlet strainer.
5. Fill throat packing nut with TSL to prevent prema-
ture packing wear. Do this each time you spray and
store.
6. Check engine oil level. Add SAE 10W-30 (summer)
or 5W-20 (winter), if necessary.
7. Fill fuel tank.
8. Check hydraulic oil level, Component ID, page 5.
Add only Graco Hydraulic Oil, ISO 46 169236 (5
gallon/18.9 liter) or 207428 (1 gallon/3.8 liter).
Hydraulic tank capacity is approximately 4.0 gallons
(15.14 liters).
9. Verify all hose/fitting connections are tight.
10. Attach sprayer grounding clamp to earth ground to
prevent static charge build-up that may result in fire.
ti7112b
ti7130b
ti7122b
Approximate
Fill Level
ti5240a
ti5241a
ti5242a
ti20971a
ti7525a
To Next Page
