Repair
12 334599F

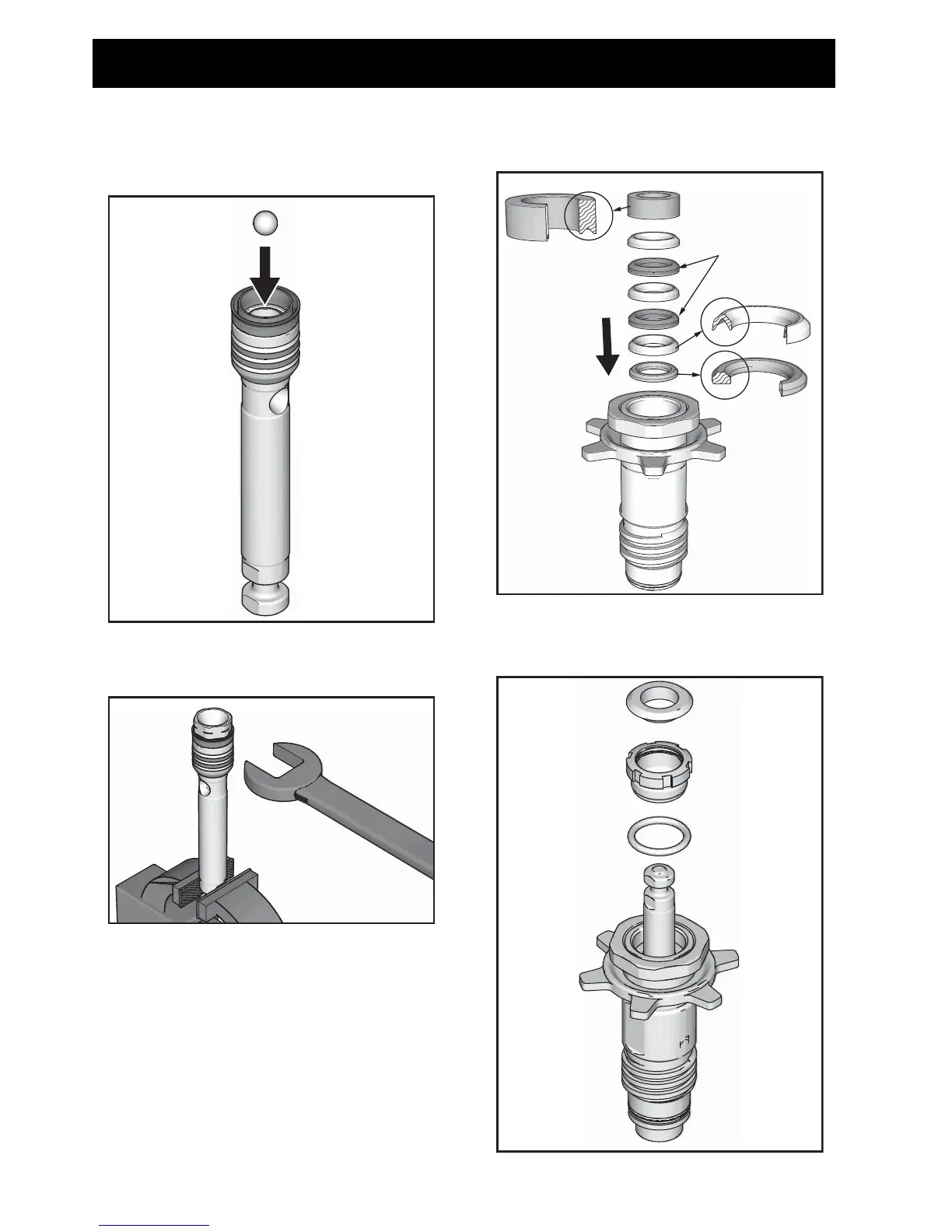

2. Install ball in piston rod. If thread seal-
ant is applied to piston valve threads,
ensure that none gets on the ball.
3. Torque to 27 ± 3 ft-lb (37 ± 4 N•m).
4. Assemble leather throat packings
soaked earlier.
5. Loosely install packing nut with o-ring
onto cylinder.
ti24891a
ti24892a
Leather
Packings
ti24893a
ti24894
