Pump Removal
8 334599F
Pump Removal

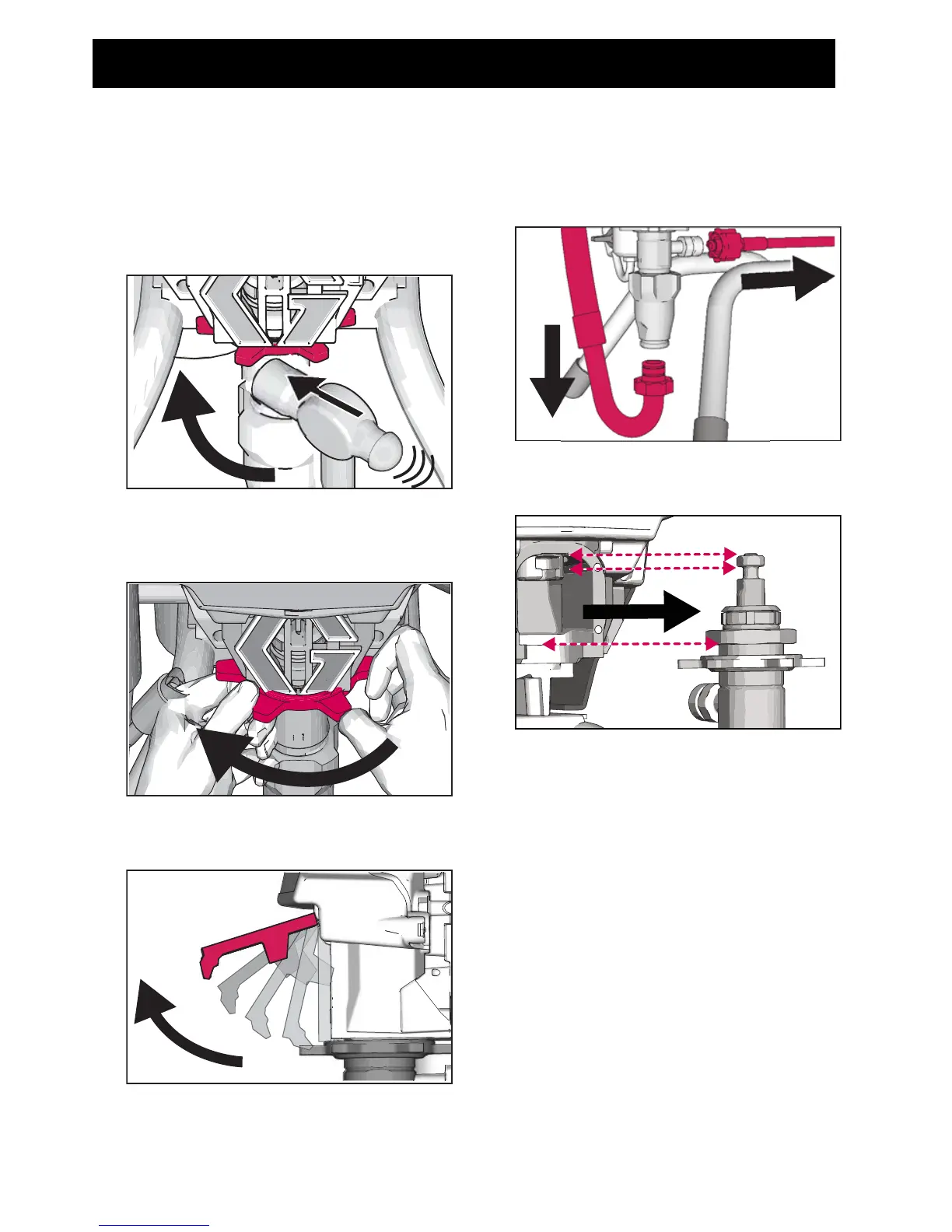

Pump removal includes disconnecting the
fluid inlet and outlet and removing the pump.
1. Use a hammer to loosen pump retaining
nut.
2. Turn pump retaining nut to free pump
rod cover.
3. Swing pump rod cover open.
4. Disconnect outlet hose and suction
hose from pump.
5. Slide pump out of the drive housing.
ti27248a
ti27249a
ti27250a
ti27251a
ti27252a
