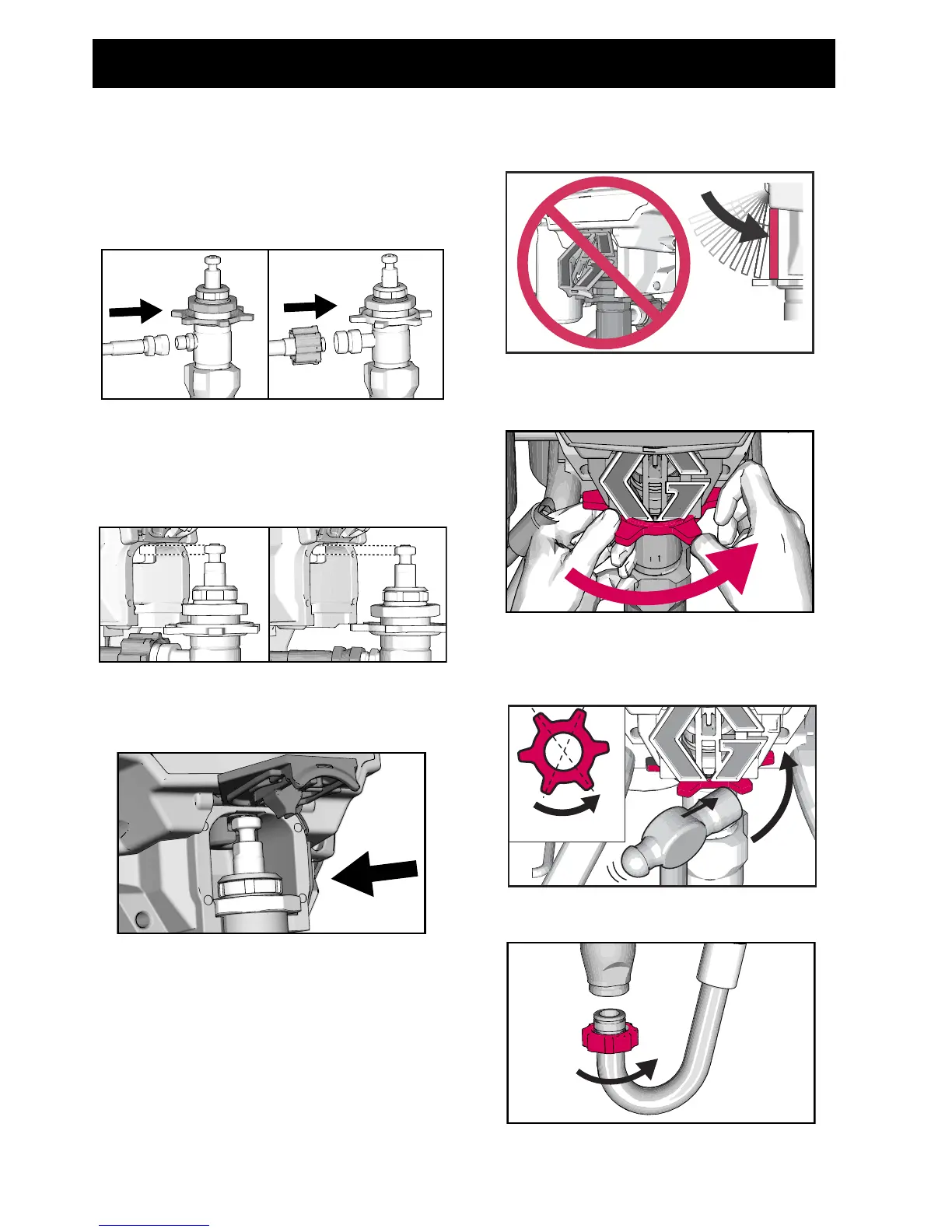

Pump Installation
18 334599F
Pump Installation
Pump installation includes securing the pump
and connecting to the fluid inlet and outlet.
1. Connect outlet hose to pump.
2. Move pump displacement rod up or
down until it slides into the connecting
rod when the pump is slid into the drive
housing.
3. Slide pump all the way into drive hous-
ing.
4. Close pump rod cover. Make certain
that it is flush against drive housing.
5. Use both hands to tighten pump retain-
ing nut.
6. Use a hammer to turn pump retaining
nut an additional 1/8 to 1/6th turn or 45°
to 60°.
7. Install suction hose.
ti24086a
ti24085b
ti25139a
ti24087a
ti24088a
ti24089a
1/8
-
1/6
ti24090a
