Parts
307273ZAF 13
Model 238782, Series A Model 248851, Series A

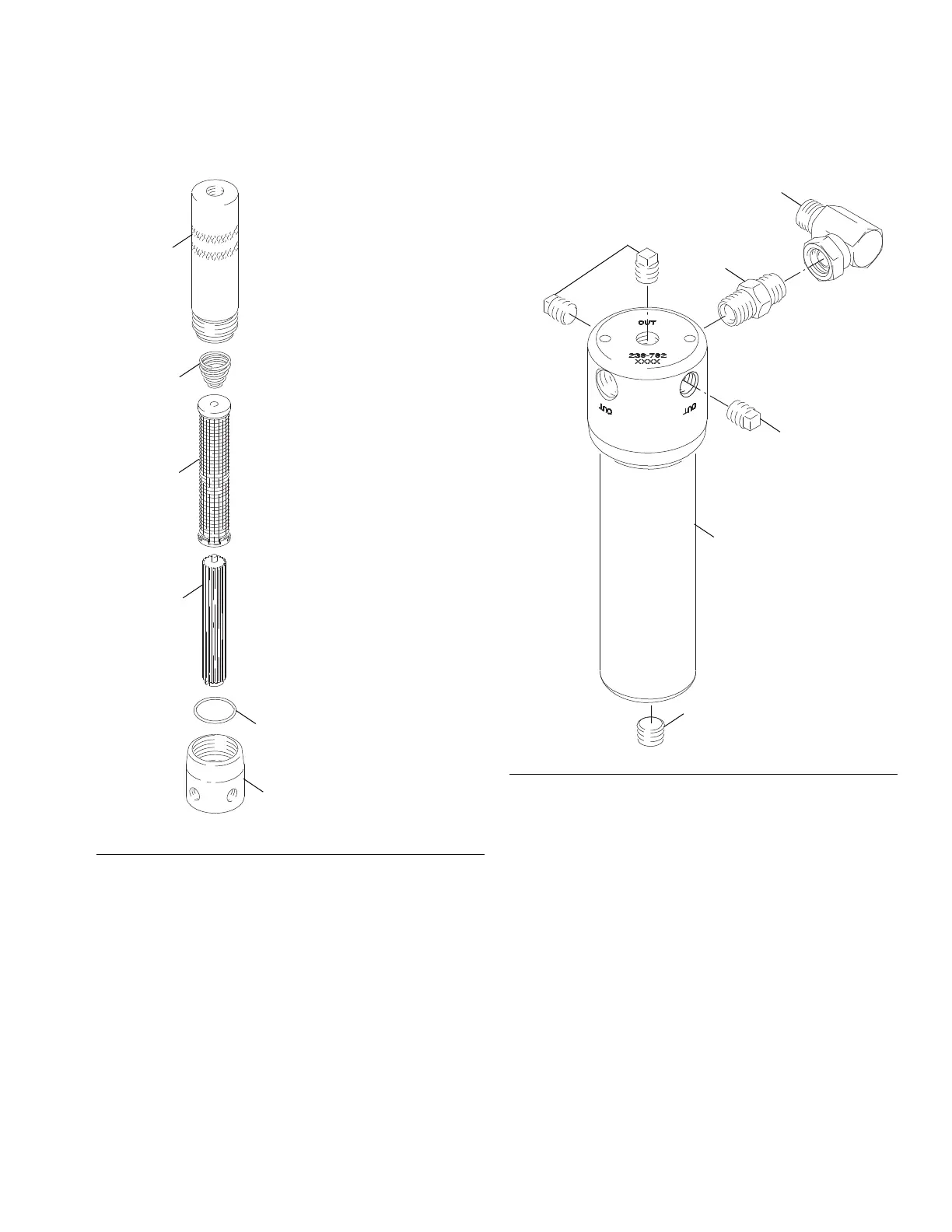

FIG. 9: Model 238782, Series A
Ref. Part Description Qty.
3 104361 O-RING; PTFE 1
5
167024 SCREEN, stainless steel; 30 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 196290 BOWL, filter; stainless steel 1
8 171941 SPRING, compression; stainless
steel
1
9 193331 HOUSING, filter; stainless steel 1
ti38538a
7
8
5
3
9
6
Keep these parts on hand
to reduce down time.
FIG. 10: Model 248851, Series A
Ref. Part Description Qty.
1 238782 FLUID FILTER ASSEMBLY;
see parts at left
1
2 101748 PLUG; 3/8 npt; stainless steel 1
3 111697 PLUG; 1/4 npt; stainless steel 3
4 166469 NIPPLE; 3/8 npt; stainless
steel
1
5 207123 ELBOW, swivel, 90° 1
ti15371a
1
5
3
4
2
3
