Parts
307273ZAF 21
Model 239961, Series A

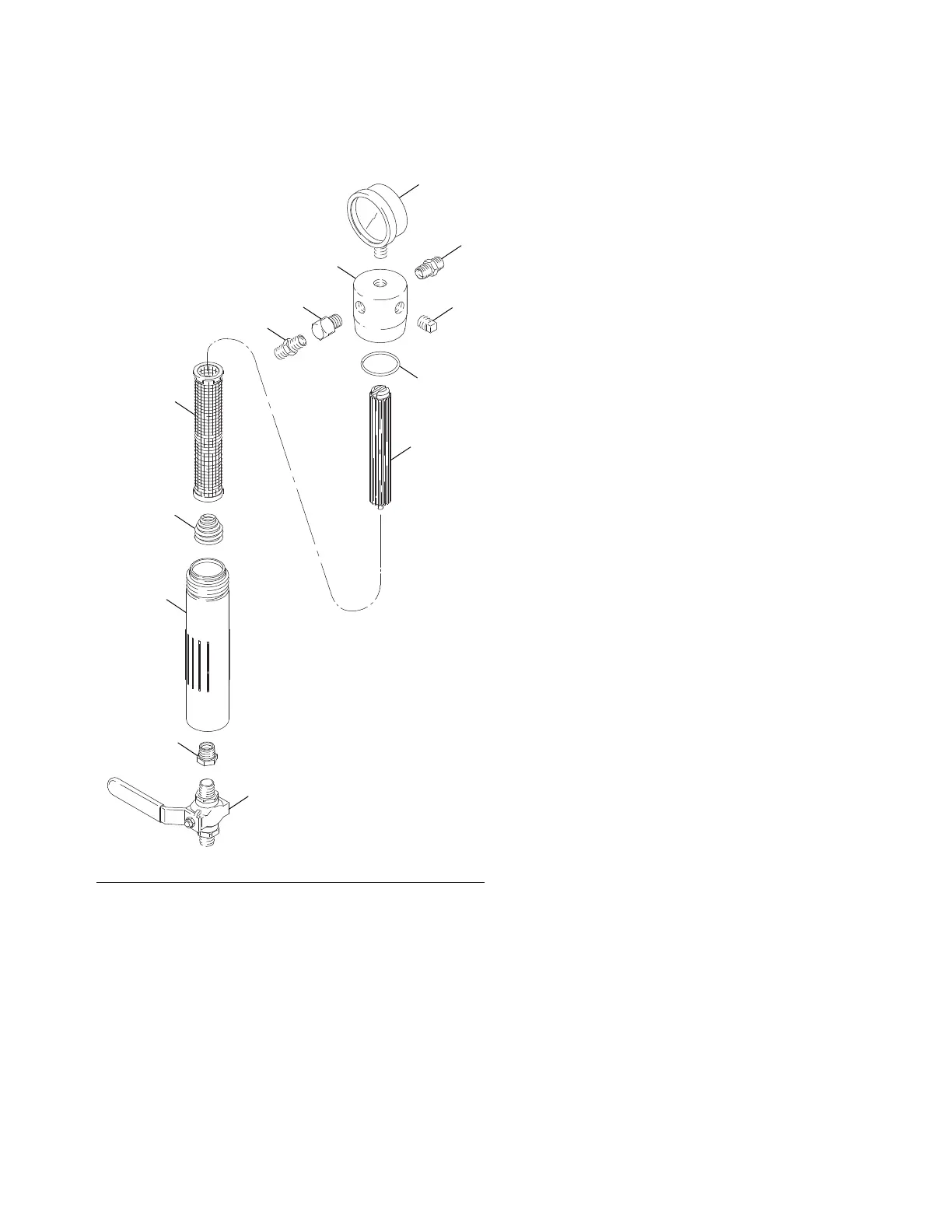

FIG. 18: Model 239961, Series A
8017a
12
7
8
16
17
9
6
15
18
22
10
5
3
Keep these parts on hand
to reduce down time.
Ref. Part Description Qty.
3
104361 O-RING; PTFE 1
5
167025 SCREEN, stainless steel; 60
mesh
1
6 186075 SUPPORT, filter; polyethylene 1
7 185632 BOWL, filter; stainless steel 1
8 171941 SPRING, compression; stainless
steel
1
9 185631 HOUSING, filter; stainless steel 1
10 111697
PLUG; 1/4 npt; stainless steel
1
12 239018 VALVE, ball; 1/4 npt (mbe);
stainless steel
1
15 168160 BUSHING; 3/8 npt(m) x 1/4 npt(f) 1
16 166866 ELBOW, 90°; 1/4 npt (m x f);
stainless steel
1
17 166846
NIPPLE; 1/4 npt x 1/4 npsm;
stainless steel
2
18 112941 GAUGE, pressure 1
22 111873 NIPPLE; 3/8 npt; stainless steel 1
