Parts
14 307273ZAF
Model 239060, Series A

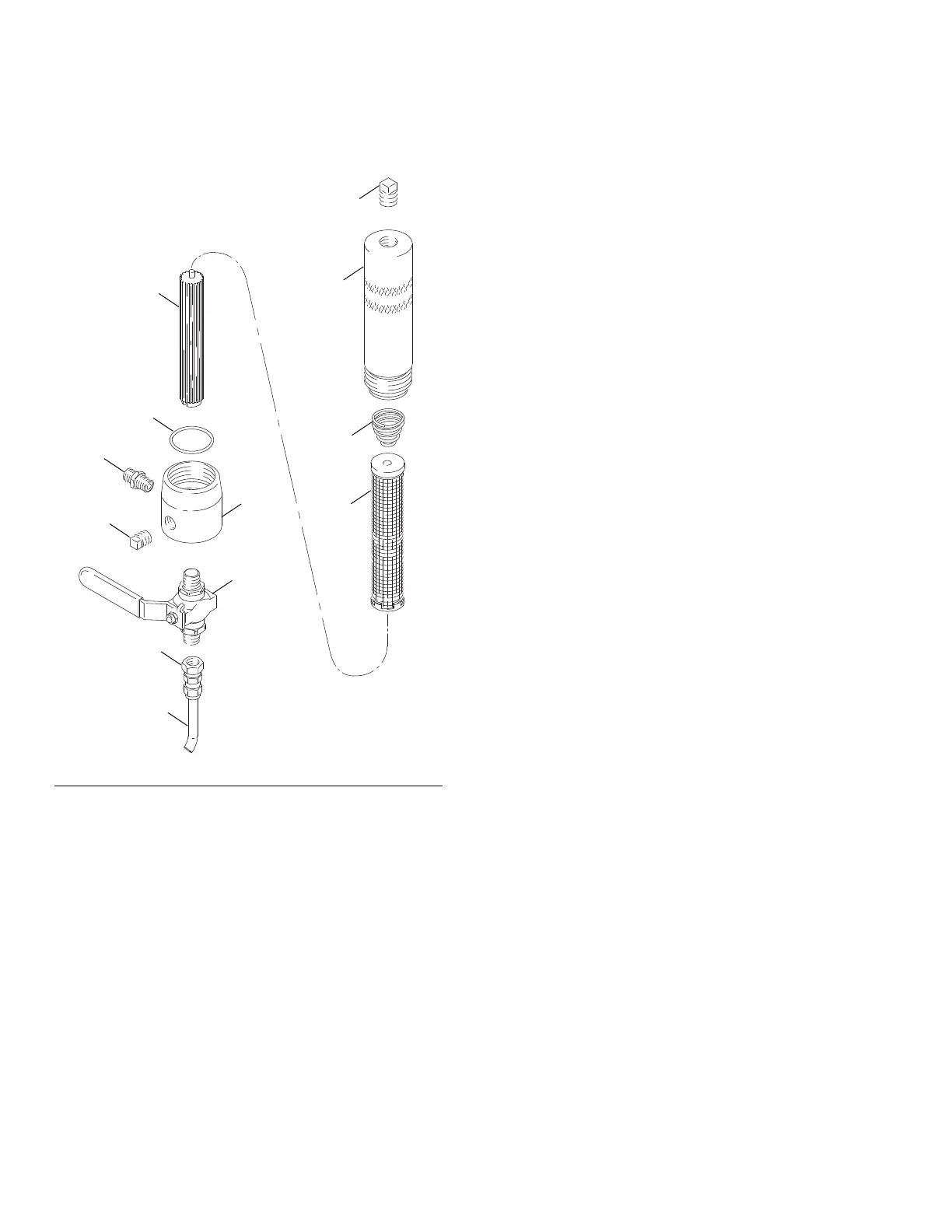

FIG. 11: Model 239060, Series A
7001a
1
7
8
5
3
4
9
6
10
12
13
14
Keep these parts on
hand to reduce down
time.
Ref. Part Description Qty.
1 100040 PLUG; 3/8 npt; steel or iron 1
3 104361 O-RING; PTFE 1
4 162453 NIPPLE; 1/4 npsm x 1/4 npt;
carbon steel
1
5 167025 SCREEN, stainless steel; 60 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 24C501 BOWL, filter; carbon steel 1
8 171941 SPRING, compression; stainless
steel
1
9 171942 HOUSING, filter; carbon steel 1
10 100509 PLUG, pipe; 1/4 npt 1
12 238635 VALVE, ball; 1/4 npt (mbe); carbon
steel
1
13 205447 COUPLING; 1/4 npsm(f) 1
14 061132 TUBE, drain; nylon; 1/4 in. (0.6 mm)
ID; 8 in. (203 mm)
1
