Graco 214570 - Model 24 F620, Series a; Model 24 U609, Series a

Parts
26 307273ZAF
Model 24F620, Series A Model 24U609, Series A

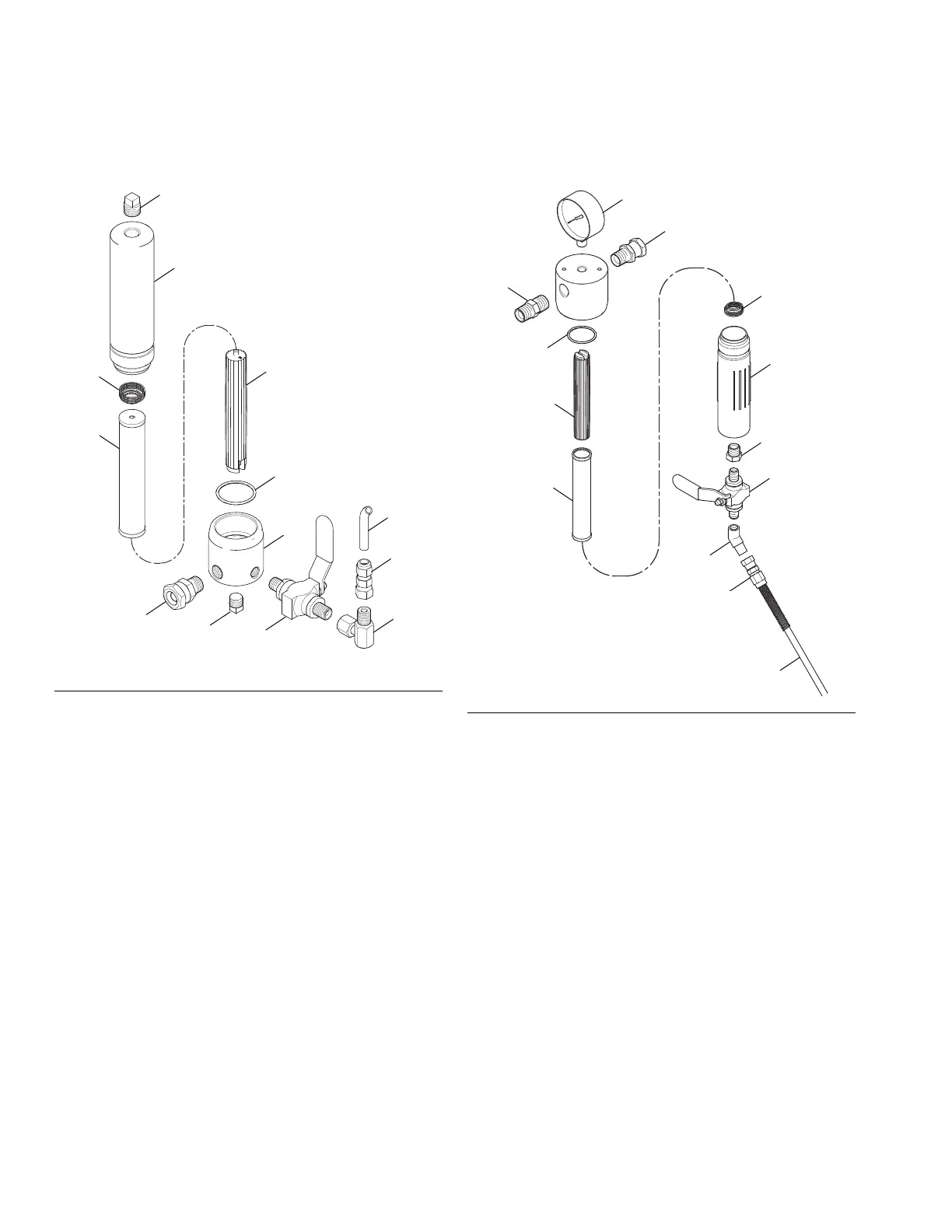

FIG. 23: Model 24F620, Series A
Ref. Part Description Qty.
1 100040 PLUG; 3/8 npt; steel or iron 1
3
 104361 O-RING; PTFE 1
5
 167026 SCREEN, stainless steel; 100
mesh
1
6 186075 SUPPORT, filter; polyethylene 1
7 24C501 BOWL, filter; carbon steel 1
8 171941 SPRING, compression;
stainless steel
1
9 171942 HOUSING, filter; carbon steel 1
10 100509 PLUG, pipe; 1/4 npt 1
12 238635 VALVE, ball; 1/4 npt (mbe);
carbon steel
1
13 205447 COUPLING; 1/4 npsm(f) 1
14 061132 TUBE, drain; nylon; 1/4 in. (0.6
mm) ID; 7 ft (2.1 m)
1
18 155665 FITTING, swivel; 3/8 npt(m) x
3/8 npsm(f)
1
20 155541 FITTING, elbow, swivel; 1/4
npt(m) x 1/4 npsm(f)
1
6
5
3



Keep these parts on
hand to reduce down
time.
10
18
8
7
1
14
13
20
9
12
FIG. 24: Model 24U609, Series A
Ref. Part Description Qty.
3
 104361 O-RING; PTFE 1
5
 167025 SCREEN, stainless steel; 60
mesh
1
6 186075
SUPPORT, filter; polyethylene 1
7
185632 BOWL, filter; stainless steel
1
8
171941 SPRING, compression; stainless steel
1
9
192975 HOUSING, filter; stainless steel
1
12
239018 VALVE, ball; 1/4 npt (mbe); stainless
steel
1
13
111913 COUPLING; 1/4 npsm(f)
1
14
061132 TUBE, drain; nylon; 1/4 in. (0.6 mm)
ID; 8 in. (203 mm)
1
15
168160
BUSHING; 3/8 npt(m) x 1/4 npt(f) 1
16
15M859
FITTING, adapter, swivel; 1/2 npt
(m) x 1/2 npsm (f); stainless steel
1
17
114572
NIPPLE; 1/2 npt x 1/2 npsm;
stainless steel
1
18
112941
GAUGE, pressure 1
19
113933
ELBOW, 45°; 1/4 npt (m x f);
stainless steel
1
6
5
3



Keep these parts on hand to
reduce down time.
8
7
18
14
13
19
12
16
17
15
