Graco 214570 - Parts; Model 214570, Series B; Model 236789, Series a

Parts
8 307273ZAF
Parts
Model 214570, Series B
ti38536a
1
7
8
5
3
4
2
9
6



Keep these parts on
hand to reduce down
time.

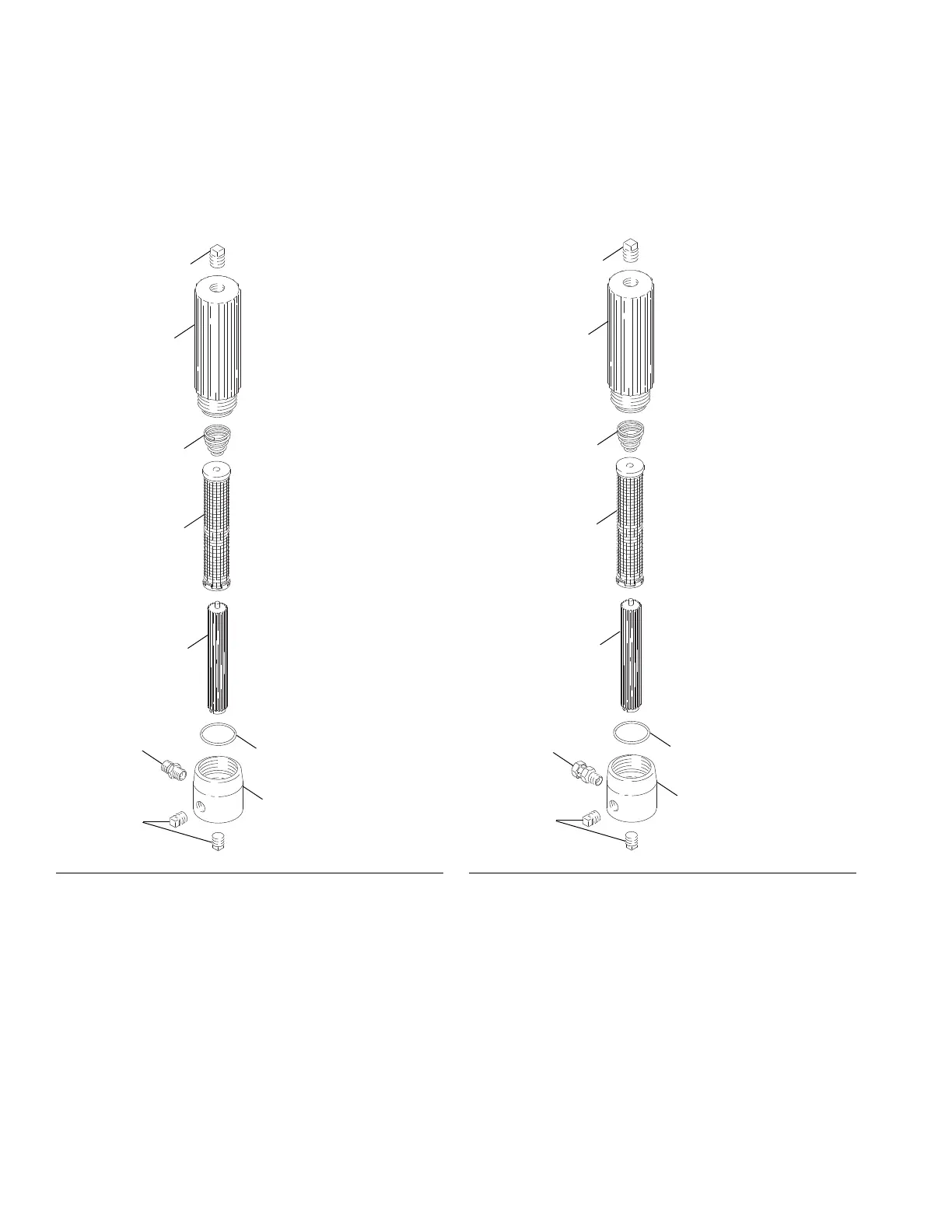

IG. 2: Model 214570
Model 236789, Series A
ti38537a

Keep these parts on
hand to reduce down
time.
1
7
8
5
3
4
2
9
6


IG. 3: Model 236789
F
Ref. Part Description Qty.
1 100040 PLUG; 3/8 npt; steel or iron 1
2 100509 PLUG; 1/4 npt; iron 2
3
 104361 O-RING; PTFE 1
4 162453 NIPPLE; 1/4 npsm x 1/4 npt 1
5
 167025 SCREEN, stainless steel; 60
mesh
1
6 186075 SUPPORT, filter; polyethylene 1
7 172831 BOWL, filter; aluminum 1
8 171941 SPRING, compression;
stainless steel
1
9 171942 HOUSING, filter; carbon steel 1
F
Ref. Part Description Qty.
1 100040 PLUG; 3/8 npt; steel or iron 1
2 100509 PLUG; 1/4 npt; iron 2
3

104361
O-RING; PTFE 1
4
155665 SWIVEL
1
5

167025 SCREEN, stainless steel; 60 mesh
1
6
186075 SUPPORT, filter; polyethylene
1
7
172831 BOWL, filter; aluminum
1
8
171941 SPRING, compression; stainless
steel
1
9
188562 HOUSING, filter; carbon steel
1
