Graco 214570 - Model 239244, Series a

Parts
307273ZAF 15
Model 239244, Series A

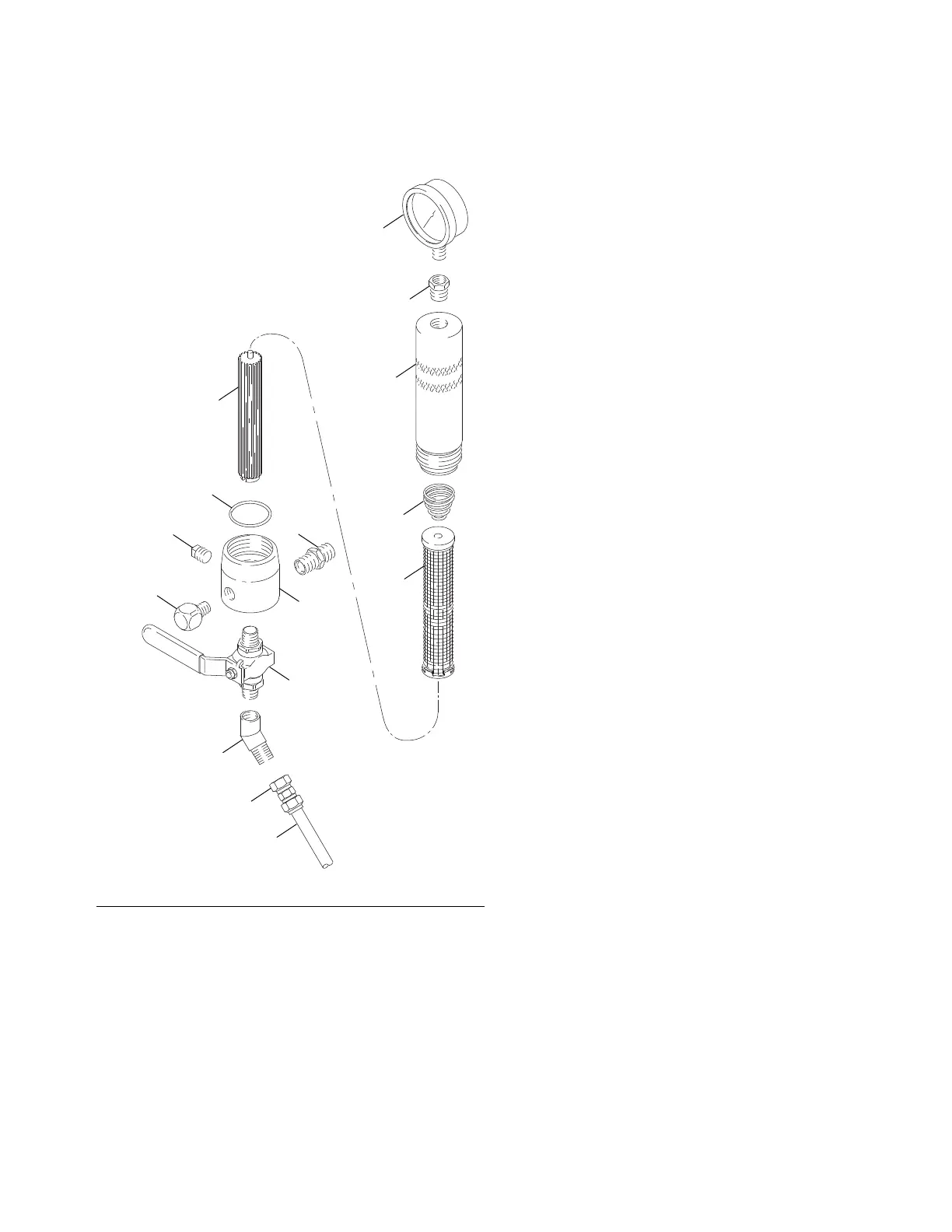

FIG. 12: Model 239244, Series A
7007a
19
7
8
5
3
12
14
9
6


13
18
15
10
16
17

Keep these parts on
hand to reduce down
time.
Ref. Part Description Qty.
3
 104361 O-RING; PTFE 1
5
 167025 SCREEN, stainless steel; 60
mesh
1
6 186075 SUPPORT, filter; polyethylene 1
7 24C501 BOWL, filter; carbon steel 1
8 171941 SPRING, compression; stainless
steel
1
9 171942 HOUSING, filter; carbon steel 1
10 100509 PLUG, pipe; 1/4 npt 1
12 238635 VALVE, ball; 1/4 npt (mbe);
carbon steel
1
13 205447 COUPLING; 1/4 npsm(f) 1
14 061132 TUBE, drain; nylon;1/4 in. (0.6
mm) ID; 8 in. (203 mm)
1
15 159841 BUSHING; 3/8 npt(m) x 1/4 npt(f) 1
16 100840 ELBOW, 90°, 1/4 npt (m x f);
carbon steel
1
17 156849 NIPPLE; 3/8 npt; carbon steel 1
18 102814 GAUGE, pressure 1
19 113444 ELBOW, 45°; 1/4 npt (m x f);
brass
1
