Graco 214570 - Model 240169, Series a

Parts
22 307273ZAF
Model 240169, Series A

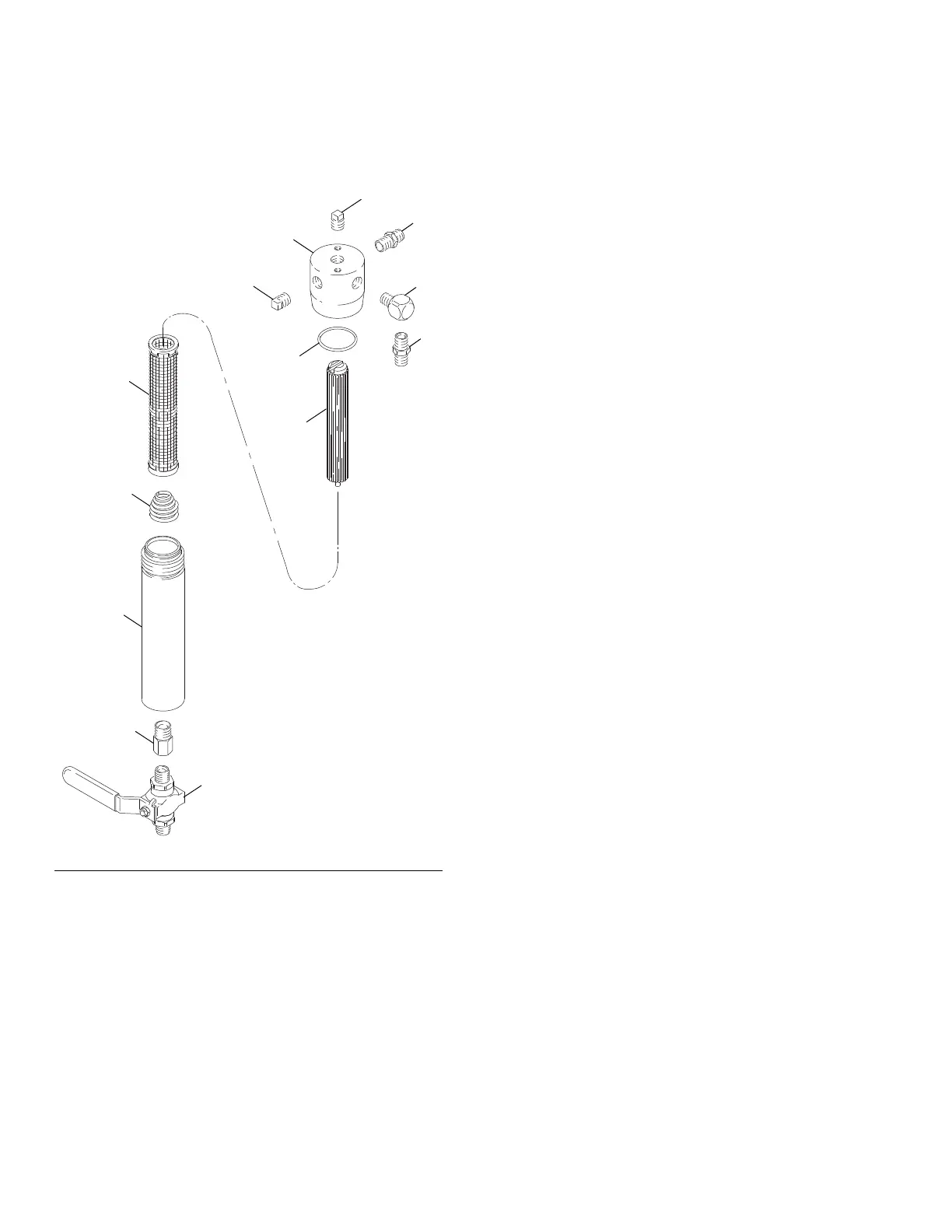

FIG. 19: Model 240169, Series A
8021a
7
17
8
15
12
9
6
10
22
16
5
3


10

Keep these parts on hand
to reduce down time.
Ref. Part Description Qty.
3
 104361 O-RING; PTFE 1
5
 167025 SCREEN, stainless steel; 60
mesh
1
6 186075
SUPPORT, filter; polyethylene 1
7
24C501 BOWL, filter; carbon steel
1
8
171941 SPRING, compression; stainless
steel
1
9
171942 HOUSING, filter; carbon steel
1
10
100509 PLUG, pipe; 1/4 npt
2
12
238635 VALVE, ball; 1/4 npt (mbe); carbon
steel
1
15
159841 BUSHING; 3/8 npt(m) x 1/4 npt(f)
1
16
100840
ELBOW, 90°; 1/4 npt (m x f);
carbon steel
1
17
162453
NIPPLE; 1/4 npt x 1/4 npsm;
carbon steel
1
22
156849
NIPPLE; 3/8 npt; carbon steel 1
