Graco 214570 - Model 218029, Series B; Model 241317, Series a; Model 24 V925, Series a; Model 24 T914, Series a

Parts
307273ZAF 9
Model 218029, Series B
Model 241317, Series A
Model 24V925, Series A
Model 24T914, Series A

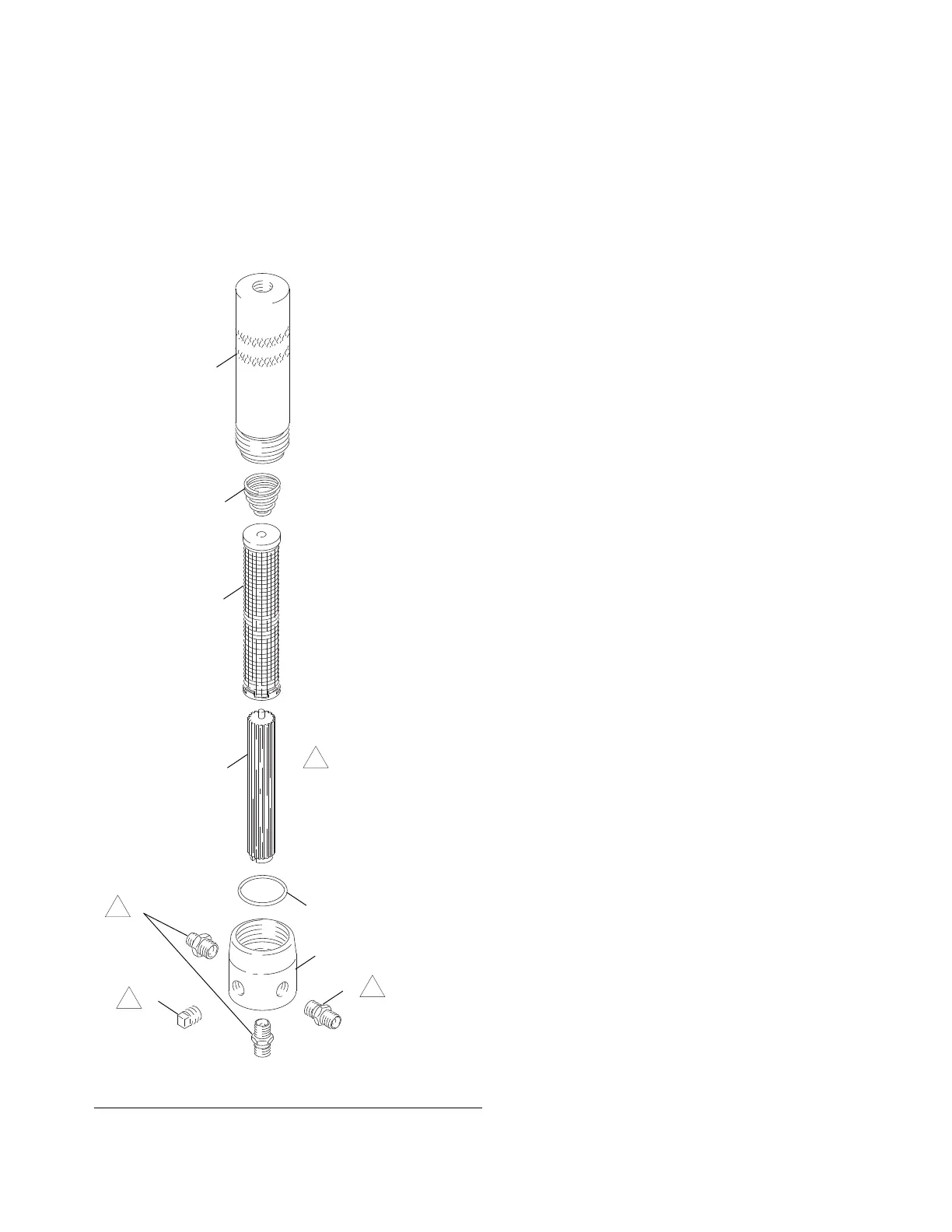

FIG. 4: Models 218029, Series B, 241317, Series A,
Model 24V925, Series A, Model 24T914, Series A
2530b
11
7
8
4
10
9
6
1
1
1
1
Used only on 241317

Keep these parts on
hand to reduce down
time.
5

3

Ref. Part Description Qty.
3
 104361 O-RING; PTFE 1
4 162453 NIPPLE; 1/4 npsm x 1/4 npt 2
5
 167025 SCREEN, stainless steel; 60 mesh
(Models 218029 and 241317 only)
1
167024 SCREEN, stainless steel; 30 mesh
(Model 24T914 only)
1
167026 SCREEN, stainless steel; 100
mesh (Model 24V925 only)
1
6 186075 SUPPORT, filter; polyethylene 1
7 24C501 BOWL, filter; carbon steel. Model
218029, 24V925, and 24T914.
1
246582 BOWL, filter; stainless steel.
Model 241317.
8 171941 SPRING, compression; stainless
steel
1
9 171942 HOUSING, filter; carbon steel 1
10 100509 PLUG, pipe; 1/4 npt 1
11 157350 ADAPTER, 3/8 npt x 1/4 npt 1
