Graco 224342 - Parts Drawings and Lists; Model 224342 President Pump

308116 15

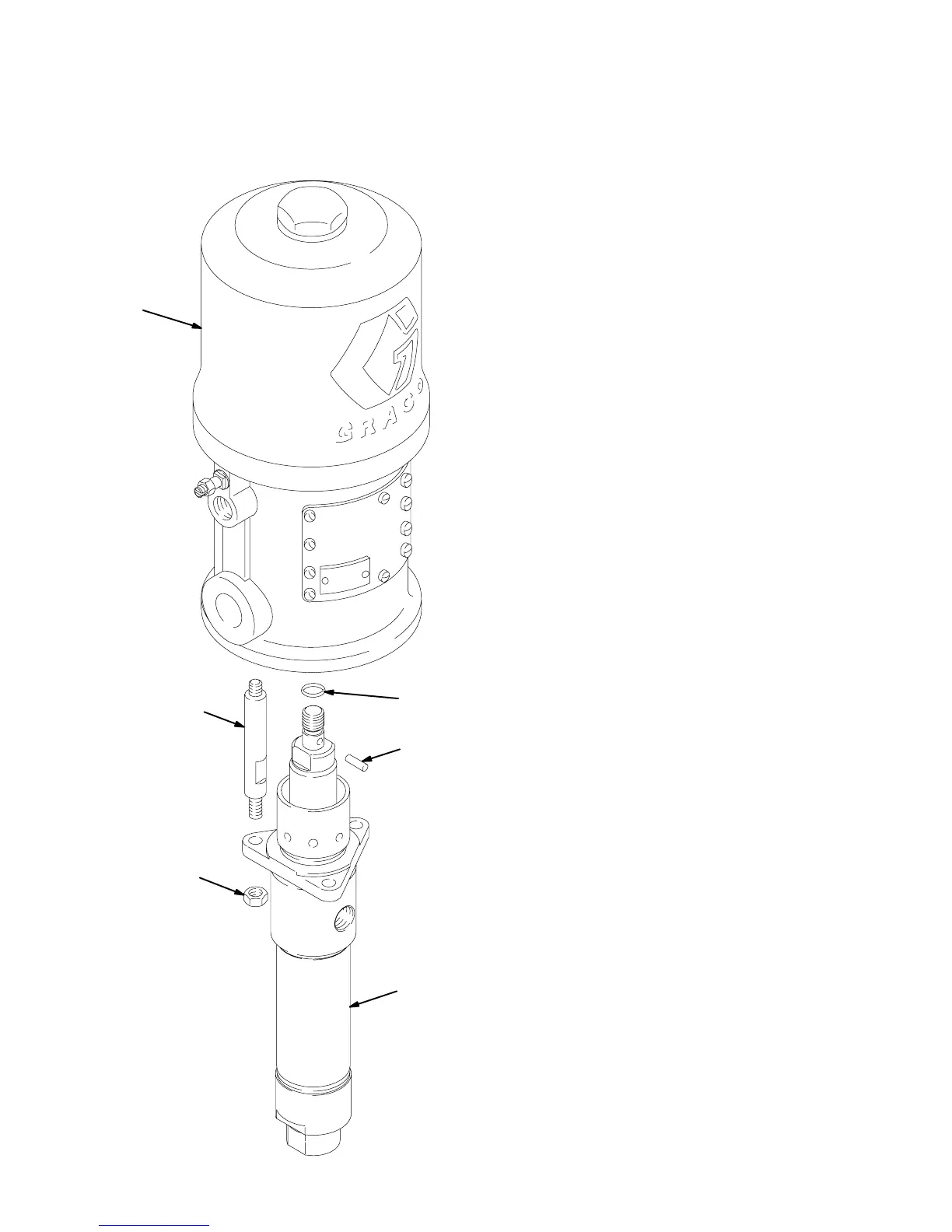

Parts
Model 224342, Series A
10:1 Ratio President Pump
Includes items 101–111
0194
101
102
103
111
110
108
Ref Part
No. No. Description Qty
101 224341 DISPLACEMENT PUMP ASSY.
See pages 18–19 for parts 1
102 102021 NUT, lock; 3/8–16; stainless steel 3
103 166237 ROD, tie; stainless steel; 3.5 in.
(89 mm) shoulder to shoulder 3
108 207352 AIR MOTOR
See 306982 for parts 1
110 156082 SEAL, o-ring; nitrile rubber 1
111 101946 PIN, cotter; stainless steel; 0.12 in.
(3.2 mm) x 1.5 in. (3.8 mm) 1
 Keep these spare parts on hand to reduce down
time.
