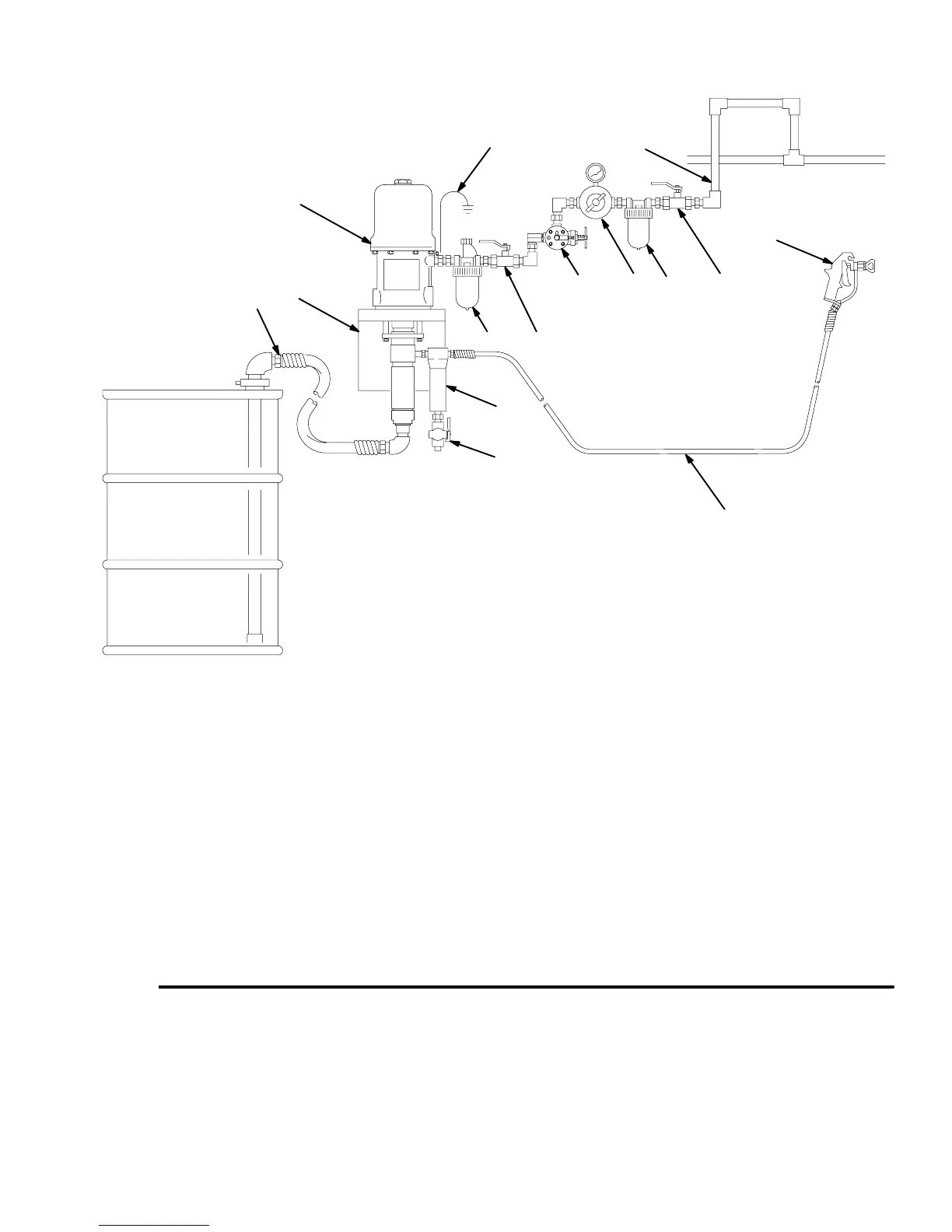

Typical Installation
KEY
A Pump
B Pump Runaway Valve
C Air Line Lubricator
D Bleed–Type Master Air Valve (required, for pump)
E Pump Air Regulator
F Air Line Filter
G Bleed–Type Master Air Valve (for accessories)
H Air Supply Hose
J Fluid Drain Valve (required)
K Fluid Filter
L Fluid Supply Hose
M Spray Gun
N Fluid Suction Hose
P Wall Bracket
Y Ground Wire (required; see page 6 for installation instructions)
J
A
B
C
D
EF G
H
K
L
M
N
Y
P
0774A
Fig. 1
