Graco 224342 - Model 902147 and 247147 Monark Pumps

308116 17
Parts

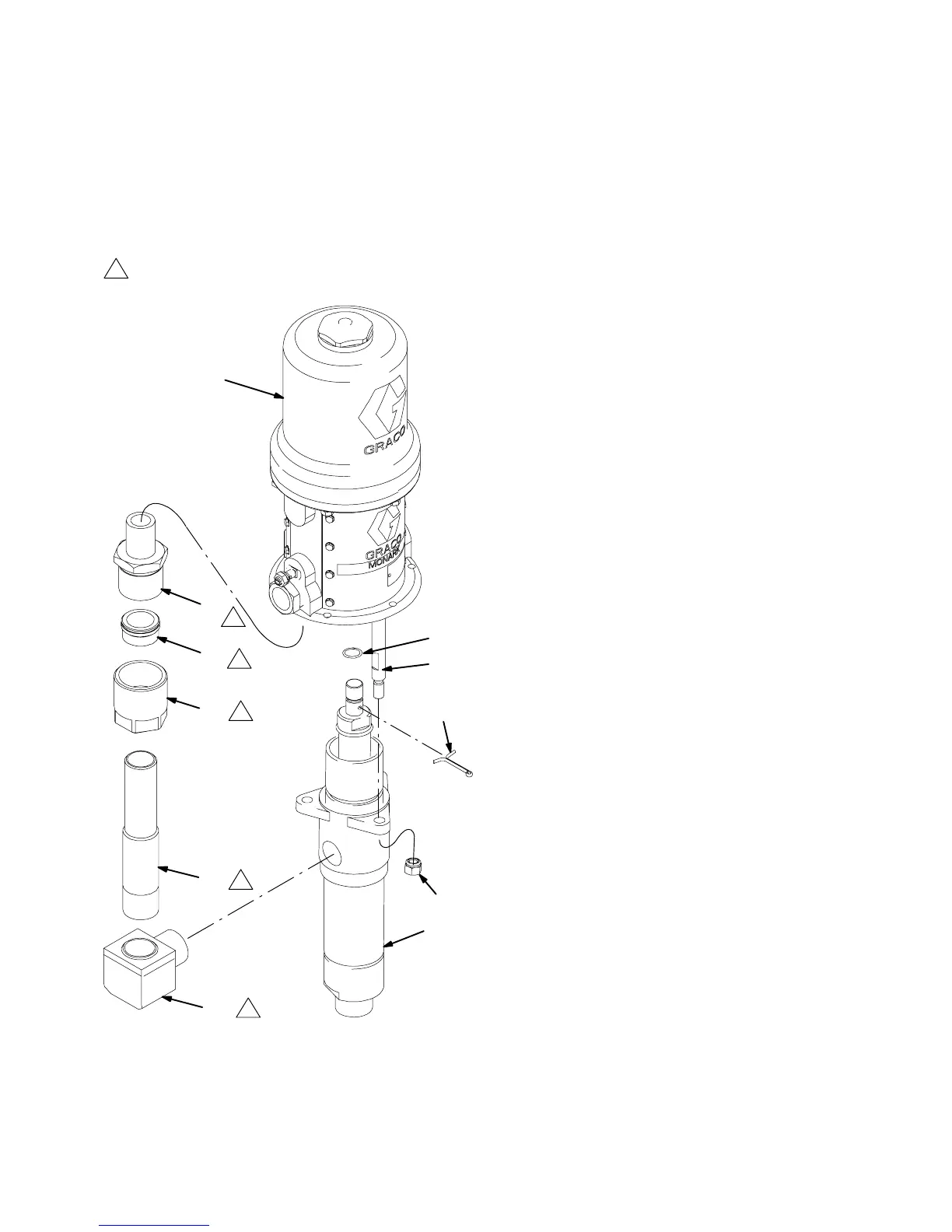

Model 902147, Series A (shown)
5:1 Ratio Monark Pump
Includes items 101–116
Model 247147, Series A
5:1 Ratio Monark Pump
Includes items 101–111
101
102
103
111
110
108
112
113
114
115
116
1 Items 112–116 used on Model 902147 only.
1
1
1
1
1
Ref Part
No. No. Description Qty
101 15G976 DISPLACEMENT PUMP ASSY.
See pages 20–21 for parts 1
102 102021 NUT, lock; 3/8–16; sst 3
103 24B189 KIT, tie rod 3
108 205997 AIR MOTOR
See 307043 for parts 1
110 156082 SEAL, o-ring; nitrile rubber 1
111 101946 PIN, cotter; stainless steel; 0.12 in.
(3.2 mm) x 1.5 in. (3.8 mm) 1
112 166027 ELBOW, street; 90; sst 1
113 166719 TUBE, rise; sst 1
114 166029 NUT, flareless tube; sst 1
115 102186 FERRULE, for 3/4 in. OD tube; sst 1
116 166030 ADAPTER, tube 1
 Keep these spare parts on hand to reduce down
time.
