Graco 224342 - Model 224343 and 261630 Monark Pumps

16 308116
Parts

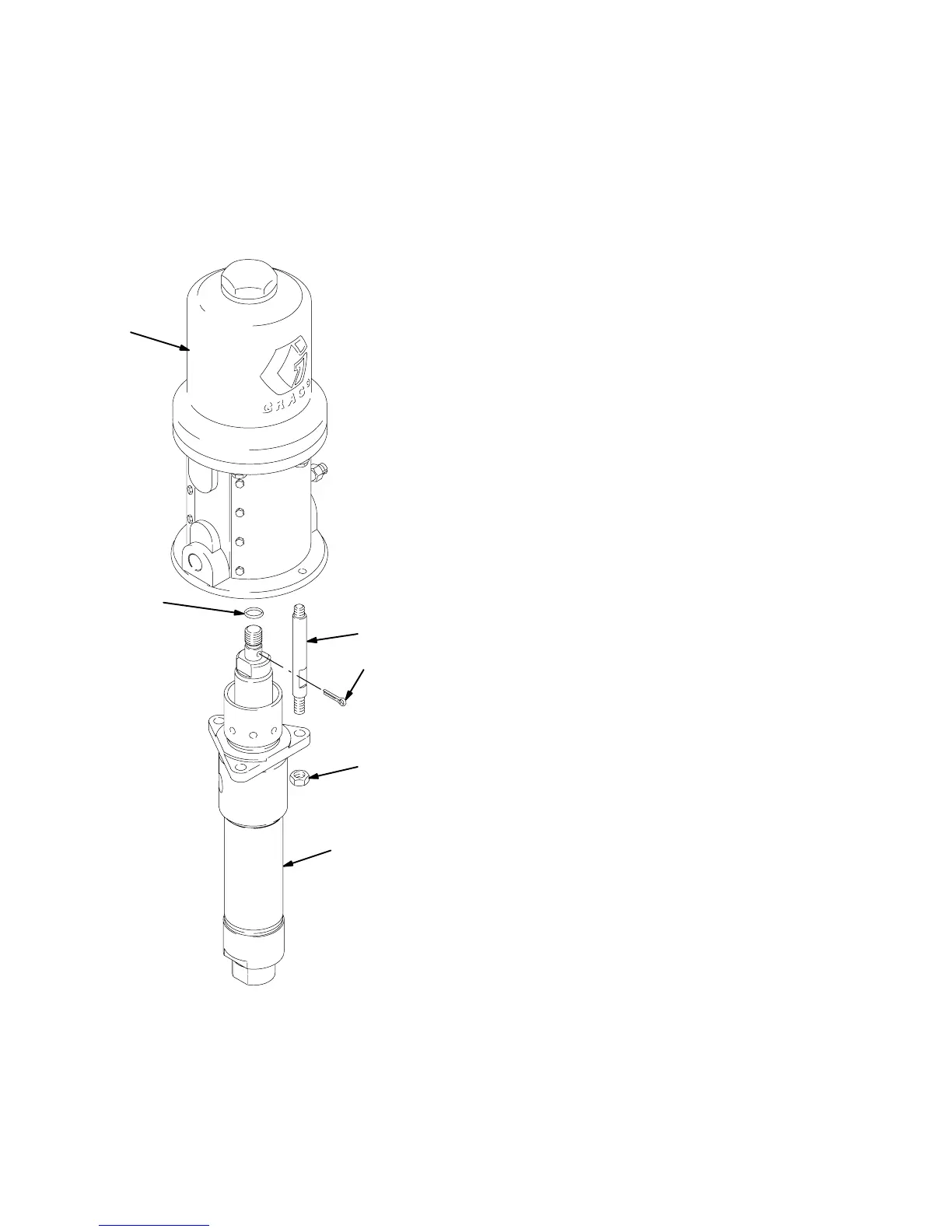

Model 224343, Series A (shown)
5:1 Ratio Monark Pump
Includes items 101–111
Model 261630, Series A
5:1 Ratio Monark Pump
Includes items 101–111
0196B
101
102
103
111
110
108
Ref Part
No. No. Description Qty
101 224341 DISPLACEMENT PUMP ASSY.
for Model 224343 only;
See pages 18–19 for parts 1
254999 DISPLACEMENT PUMP ASSY.
for Model 261630 only;
See pages 18–19 for parts 1
102 102021 NUT, lock; 3/8–16; stainless steel 3
103 24B189 KIT, tie rod 3
108 205997 AIR MOTOR
See 307043 for parts 1
110 156082 SEAL, o-ring; nitrile rubber 1
111 101946 PIN, cotter; stainless steel; 0.12 in.
(3.2 mm) x 1.5 in. (3.8 mm) 1
 Keep these spare parts on hand to reduce down
time.
