Graco 253485 User Manual

308549 33

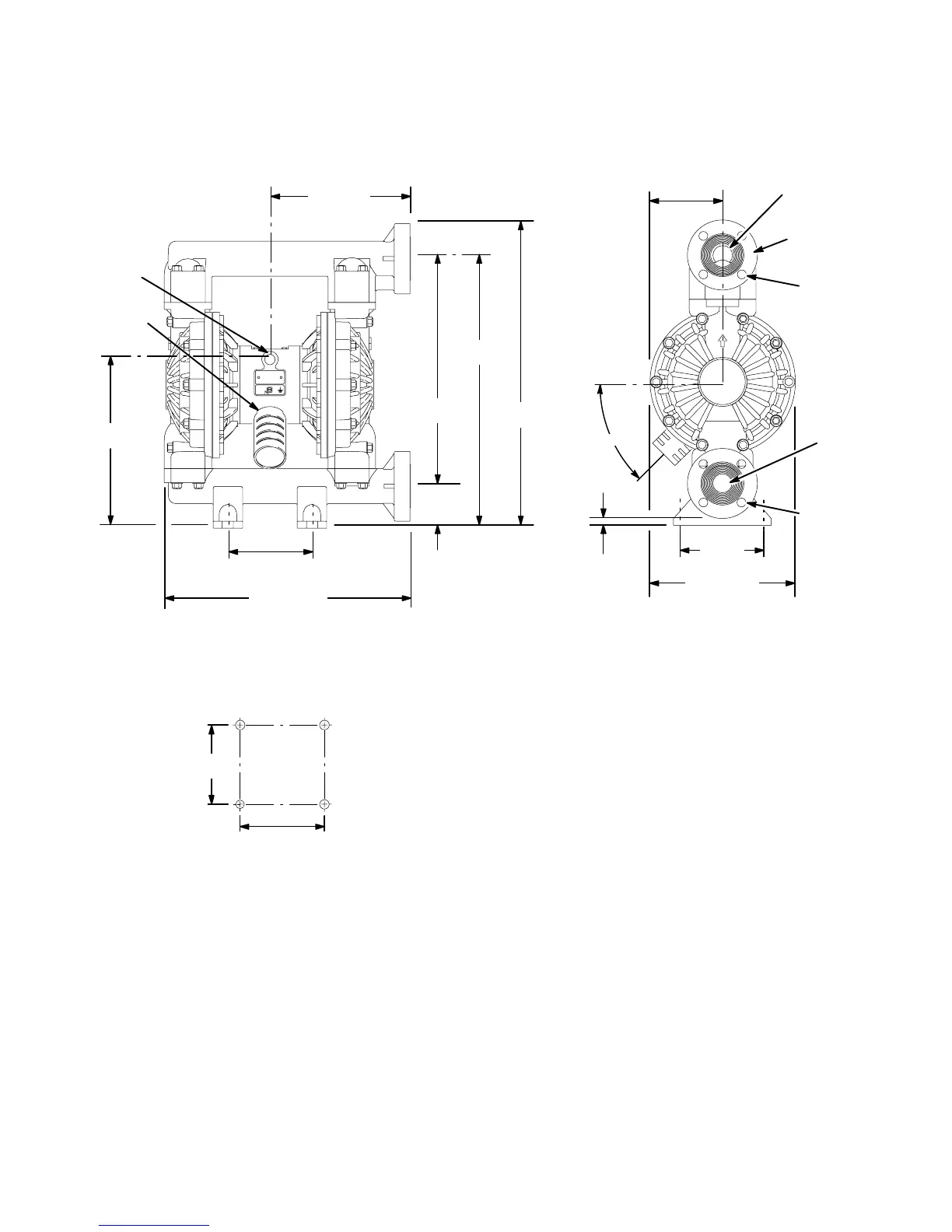

Dimensions
6.0 in.
(152.5 mm)
5.23 in.
(133 mm)
3.0 in.
(76 mm)
PUMP MOUNTING HOLE PATTERN
FRONT VIEW
SIDE VIEW
1/2 npt(f)
air inlet
3/4 npt(f)
air exhaust
outlet port I.D.:
1.75 in. (44.5 mm)
flange diameter:
5.5 in. (139.7 mm)
four 0.73 in.
(18.5 mm) slots
21.75 in.
(552.5 mm)
16.25 in.
(412.5 mm)
19.25 in.
(489 mm)
11.99 in.
(304.5 mm)
6.0 in.
(152.5 mm)
6.0 in.
(152.5 mm)
0.5 in.
(12.5 mm)
10 in.
(254 mm)
17.55 in.
(445.5 mm)
6.0 in.
(152.5
mm)
10.45 in.
(265.5 mm)
45_
7439B
inlet port I.D.:
1.75 in.
(44.5 mm)
four 0.73 in.
(18.5 mm) slots

Graco 253485 Specifications

General

Brand	Graco
Model	253485
Category	Water Pump
Language	English
