Graco 253485 User Manual

308549 35
Technical Data
Maximum fluid working pressure 120 psi. . . . . . . . . . . . . . . . . .
(0.84 MPa, 8.4 bar)
Air pressure operating range 20 to 120 psi. . . . . . . . . . . . . . . .
(1.4 to 8.4 bar, 0.14 to 0.84 MPa)
Maximum air consumption 125 scfm. . . . . . . . . . . . . . . . . . . . .
Air consumption at 70 psi/60 gpm 50 scfm (see chart). . . . .
Maximum free flow delivery 100 gpm (378.5 l/min). . . . . . . . .
Maximum pump speed 200 cpm. . . . . . . . . . . . . . . . . . . . . . . . .
Gallons (liters) per cycle 0.5 (1.9). . . . . . . . . . . . . . . . . . . . . . . .
Maximum suction lift 18 ft (5.48 m) wet or dry. . . . . . . . . . . . .
Maximum size pumpable solids 3/16 in. (4.8 mm). . . . . . . . . .
* Maximum noise level at 100 psi, 50 cpm 94 dBa. . . . . . . .
Sound power level 108 dBa. . . . . . . . . . . . . . . . . . . . . . . . . .
* Noise level at 70 psi, 50 cycles/min 72 dBa. . . . . . . . . . . .
Maximum operating temperature 150_ F (65.5_ C). . . . . . . . . .
Air inlet size 1/2 npt(f). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid inlet size. 1–1/2 in. raised face flange. . . . . . . . . . . . . . . .
Fluid outlet size. 1–1/2 in. raised face flange. . . . . . . . . . . . . . .
Wetted parts Vary by model. See pages 28 to 31. . . . . . . . . .
Non-wetted external parts aluminum, 302 and 316 stainless.
steel polyester (labels)
Weight Polypropylene Pumps: . . . . . . . . . . . . . . . . . . . . . . . . . .
with aluminum center section 35 lb (16 kg). . . . . . . . . . . . . . . .
PVDF Pumps: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
with aluminum center section 49 lb (22 kg). . . . . . . . . . . . . . . .
Polypropylene Plus Pumps:. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
with stainless steel center section 49 lb (23 kg). . . . . . . . . . . . .
PVDF Pumps: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
with stainless steel center section 63 lb (30 kg). . . . . . . . . . . . .
Geolastr and Santoprener are registered trademarks of the
Monsanto Co.
Loctite
r is a registered trademark of the Loctite Corporation.
* Noise levels measured with the pump mounted on the floor,
using Rubber Foot Kit 236452. Sound power measured per
ISO Standard 9216.
0
20
40
60
80
100
120
0 153045607590105120
TEST CONDITIONS
Pump tested in water with PTFE diaphragm and inlet
submerged.
(114) (170)
(0.28, 2.8)
(0.14, 1.4)
(0.42, 4.2)
KEY FLUID PRESSURE AND FLOW
SCFM AIR CONSUMPTION

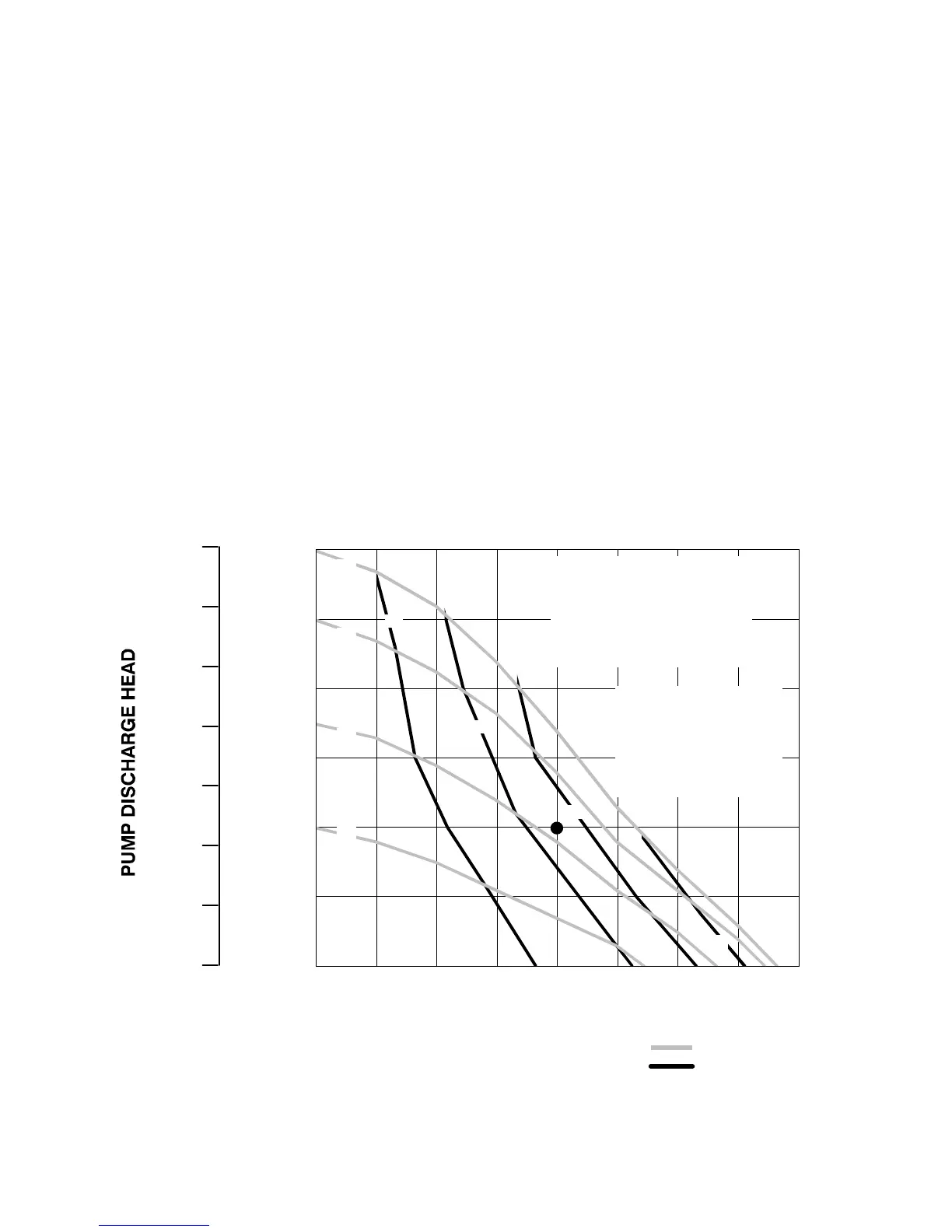

Example of Finding Pump Air Consumption and Air Pressure at a Specific Fluid Delivery and Discharge Head:
To supply 60 gpm (227 liters) fluid flow (horizontal scale) at 40 psi (0.28 MPa, 2.8 bar) discharge head pressure (vertical scale) re-
quires approximately 50 scfm (1.40 m
#/min) air consumption at 70 psi (0.49 MPa, 4.9 bar) inlet air pressure.
FLUID FLOW GPM (lpm)
psi
(bar, MPa)
feet
(meters)
280
(85.3)
240
(73.2)
200
(61.0)
160
(48.8)
120
(36.6)
80
(24.4)
40
(12.2)
0
(0.56, 5.6)
(0.7, 7.0)
(0.84, 8.4)
(57)
Inlet Air Pressures
A 120 psi air (0.84 MPa, 8.4 bar)
B 100 psi air (0.7 MPa, 7 bar)
C 70 psi air (0.49 MPa, 4.9 bar)
D 40 psi air (0.28 MPa, 2.8 bar)
A
B
C
D
E
F
G
H
Air Consumption
E 20 scfm (0.56 m#/min)
F 40 scfm (1.12 m#/min)
G 60 scfm (1.68 m#/min)
H 80 scfm (2.24 m#/min)
(227) (284) (341) (397) (454)
