Graco A Series Repair Parts

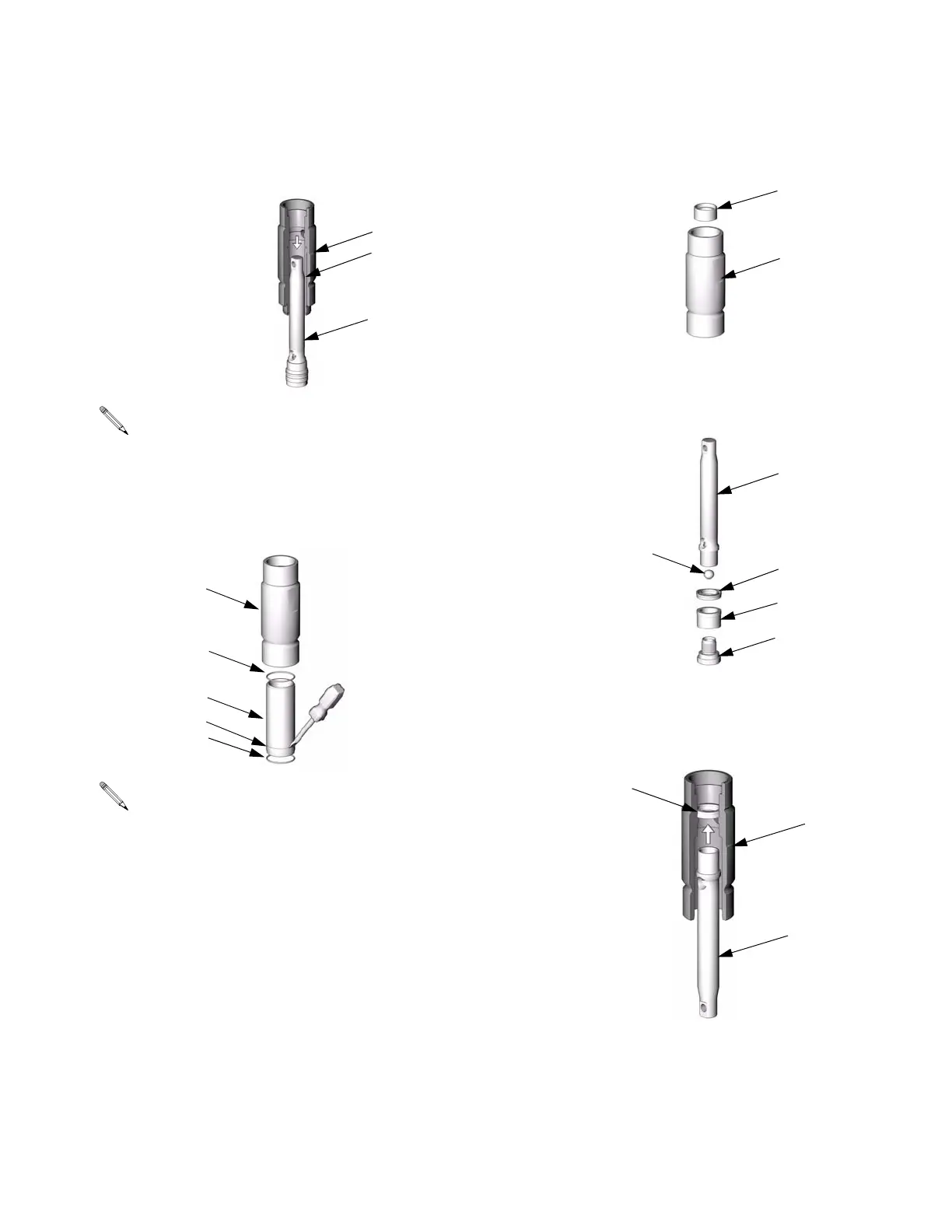

Disassembly
309577D 13
14. Tap rod (1) with non-sparking hammer to drive it
out of cylinder (2).
Sleeve (4) may come out with rod.
15. Using screwdriver in groove (H), remove sleeve
(4) from cylinder (2), or pull it off rod. Remove
o-rings (3).
Be sure top o-ring (3) comes out.
TI2672A
1
2
4
TI2670A
2
3
4
H
3
16. Remove bushing (17).
17. Unscrew piston (7) from rod (1). Remove ball
(16), u-cup (13), and bushing (14).
18. Insert piston end of rod (1) into cylinder (2) and
push u-cup (20) out.
TI2669B
17
2
TI2666A
1
16
14
13
7
TI2671A
1
2
20
