Graco A Series Repair And Parts

309662 19

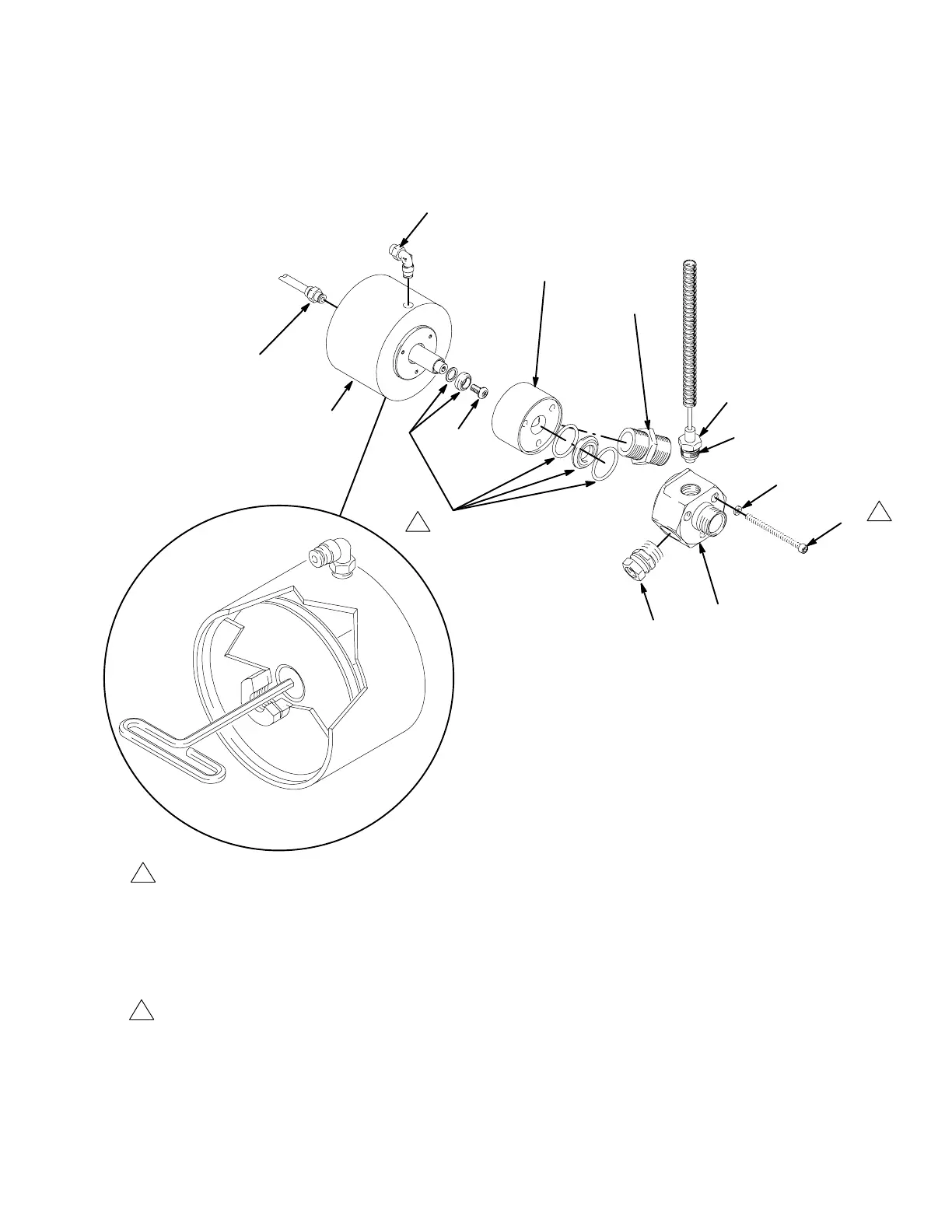

Parts - Dump Manifold
See page 16 for parts description and page 17 for location on sprayer.
TI3008A
TI3008A
23
22
68
30
79
47
63
45
41
82
96
85
31
1
Prime Valve Repair Kit 234231 Installation
1. Replace all parts shown for (47)
2. Apply blue LockTite to threads of screw (68)
3. Detail A. Hold piston assembly of air cylin-
der (22) with 3/16 in. hex driver and torque
screw (68) to 40 to 50 in-lb.
1
2
2 Torque screw (82) to 40 to 50 in-lb
TI3122A
Detail A
