Graco A Series - Cleaning the Gun Filter

20 309662
Parts - Displacement Pump
Model 235166, Series A
Includes items 201227
Ref
No. Part No. Description Qty
201 188437 PISTON ROD 1
202 187068 PACKING NUT 1
203 188560* V-PACKING, poly 2
204 187939* GLAND, male 1
205 188557* O-RING 2
206 187934 PISTON HOUSING 1
207 188559* O-RING, Viton

1
208 188434* NUT 1
209 188432* GLAND, male 1
210 188561* V-PACKING, poly 2
211 188433* GLAND, female 1
212 188627 BACKUP WASHER, nylon 1
213 235165 PISTON SEAT 1
214 187929 LUG NUT 1
215 235963 INTAKE HOUSING 1
216 102973* BALL, intake, 0.125 inch ID 1
217 187064 BALL GUIDE 1
218 188558* U-CUP SEAL, poly/Viton

1
219 187072* V-PACKING, poly 3
220 102972* BALL, piston; 0.875 inch ID 1
221 187066 CYLINDER 1
225 187071* V-PACKING, poly 3
226 187070* GLAND, female 1
227 187933 HOUSING, outlet 1
228 183210 PIN 1
232 235962 SEAL, foot valve 1
* Included in Repair Kit 235186, purchased separately. Kit
includes pressure drain valve u-cup packing, 111829.

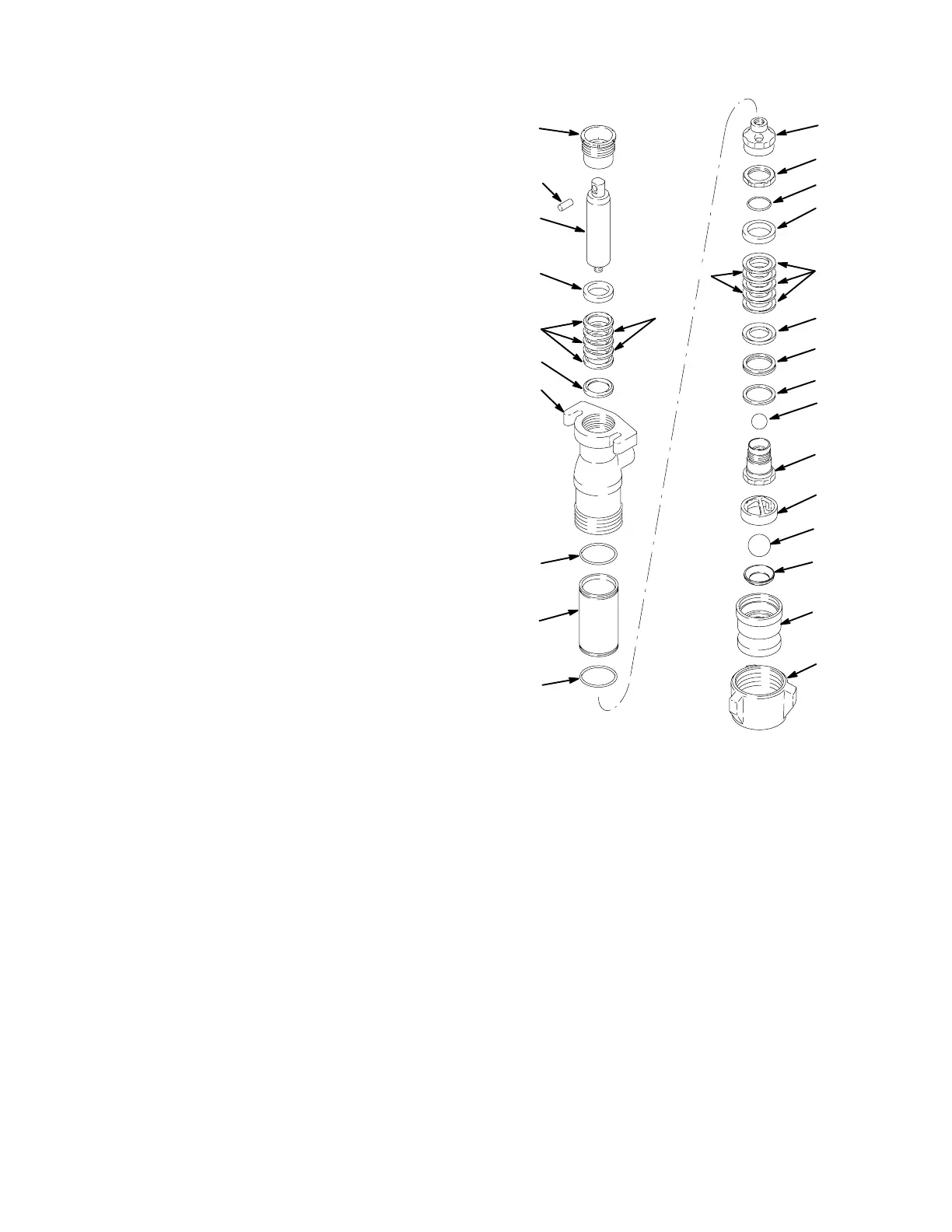

TI3020A
202
*205
221
*205
206
208*
220*
213
217
216*
215
214
201
227
*226
*204
218*
212
211*
209*
207*
219*
203*
*225
228
232
*210
