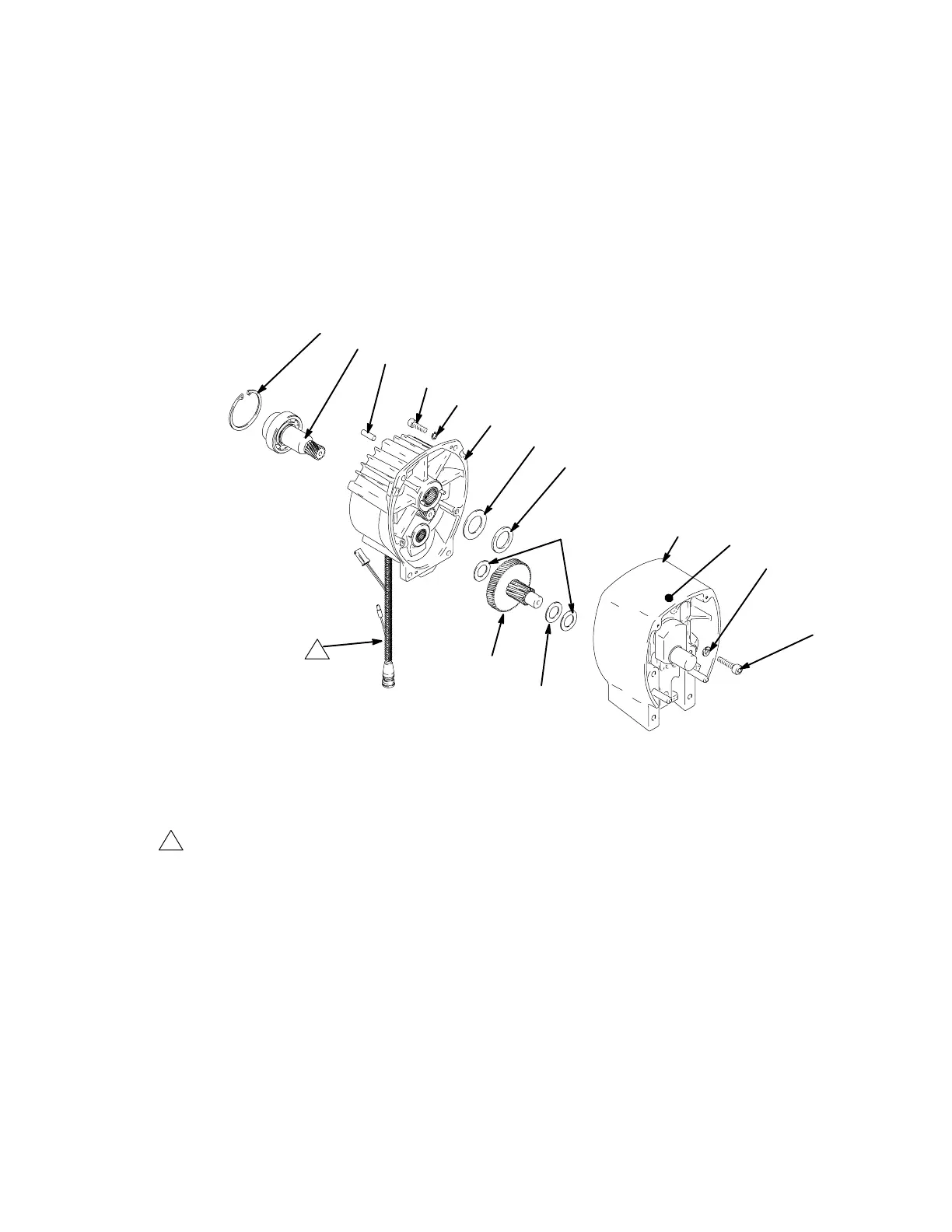

Parts - Pinion and Drive Housing Repair Kits
Ref No. 58 and 8
Pinion Housing Repair Kit Ref No. 8: Drive Housing Repair Kit
Ref
No. Part No. Description Qty
Ref
No. Part No. Description Qty
58 245399 KIT, repair, pinion housing 1
58b 105489 PIN 2
58d* 241114 PINION SHAFT 1
58e 112770 RETAINING RING, large 1
*Must be ordered separately.
8 287128 KIT, repair, drive housing 1
8g 194173 WASHER 1
8h 116192 WASHER 1
8p 290228 LABEL, caution 1
59 (Ref)
36 (Ref)
58d
58e
58b
8
8h
8g
91 (Ref)
58
92 (Ref)
17 (Ref)
81 (Ref)
1
1
84 (Ref)
Pinion housing assembly (58) includes clutch field and connector
8p
TI0177B
