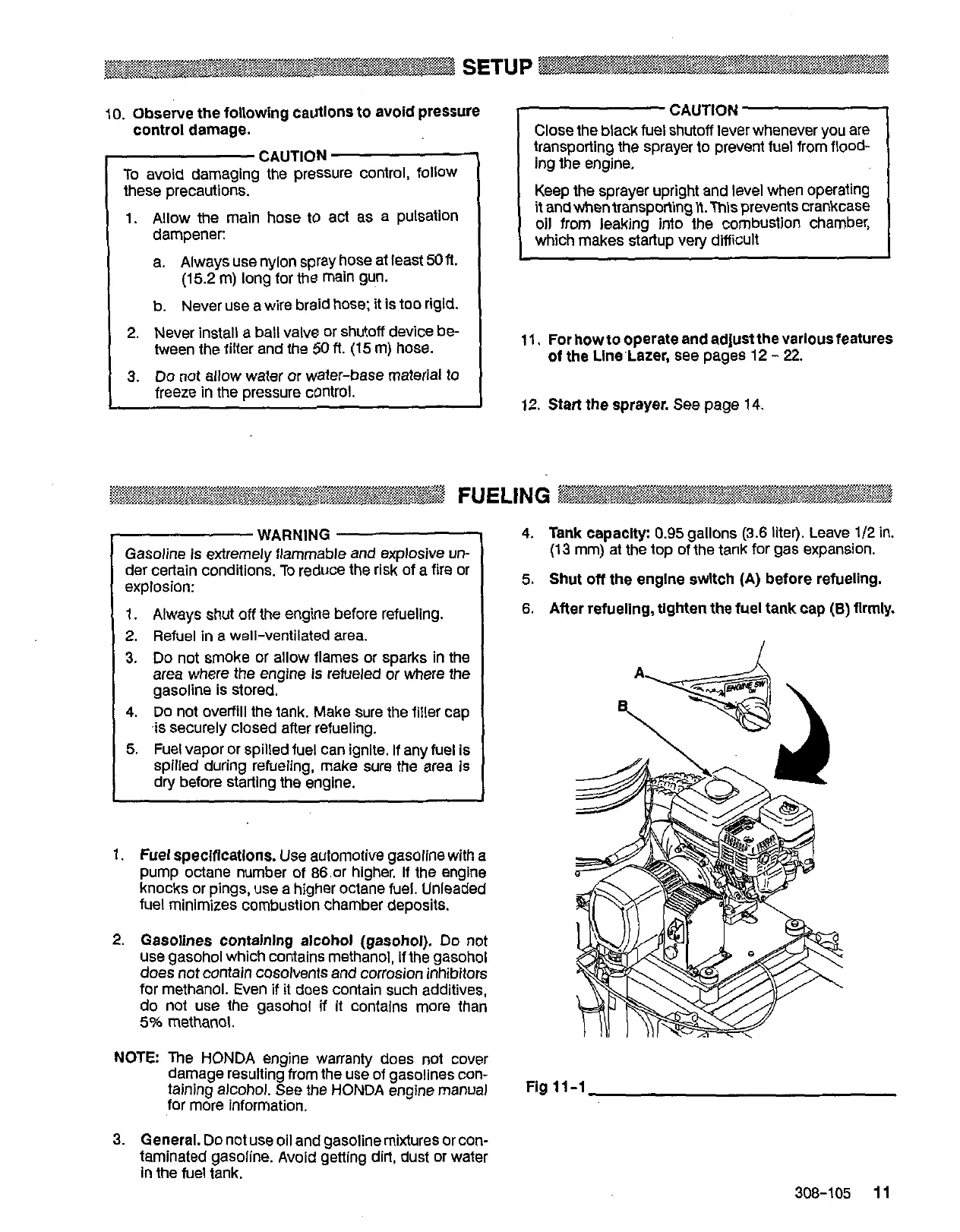

Page #11 background imageLoading...
Page #11 background image
io.
Observe
the followlng cautlons to avoid pressure
control damage.
CAUTION
TO avoid damaging the pressure control, follow
these precautions.
I.
AIIOW
the main hose
to
act as a pulsation
dampener:
a. Always
use
nylon spray hose at least
50ft.
b.
Never use a wire braid hose; it
Is
too
rigid.
2. Never install a ball valve
or
shutoff device be-
tween the filter and the
50
ft.
(15
m) hose.
3.
Do not allow water or water-base material
to
freeze
in
the pressure COntlOl.
(15.2
m) long for the main gun.
CAUTION
Close
the black fuel shutoff lever whenever you are
transporting the sprayer
to
prevent fuel from flood-
ing
the
engine.
Keep the sprayer upright and level when operating
it
and wheniranspor\ing
n.
This prevents crankcase
oil from leaking into
the
combustion chamber,
which makes startup very difficult
11.
For howto operate and adjust the varlousfeatures
of
the Llne'Lazer,
see
pages
12
-
22.
12.
Start the sprayer.
See page
14
WARNING
Gasoline is extremely flammable and explosive un-
der certain conditions.
To
reduce the risk of a fire or
explosion:
1.
Always shut off the engine before refueling.
2.
Refuel in a well-ventilated area.
3.
Do
not smoke or ailow flames or sparks in the
area where
the
engine is refueled or where the
gasoline is stored.
4.
DO not overfill the tank. Make sure the filler cap
.is securely closed after refueling.
5.
Fuel vapor
or
spilledfuel can ignite, If any fuel is
spilled during refueling, make sure the area
is
dry
before starting the engine.
1.
Fuel
specifications.
Use automotive gasoline with a
pump octane number of
86 or higher. If the engine
fuel minimizes combustion chamber deposits.
knocks or pings,
use
a higher octane fuel. Unleaded
2.
Gasollnes containlng alcohol (gasohol).
Do
not
use
gasohol which contains methanol,
If
the gasohol
does not contain cosolvenis and corrosion inhibitors
for methanol. Even
if
it does contain such additives,
do not use the gasohol if
it
contains more than
5%
methanol.
NOTE:
The HONDA engine warranty does not cover
raining alcohol. See the HONDA engine manual
damage resulting from the use of gasolines con-
for more information.
3.
General.
Do
not
use
oil and gasolinemixtures or con-
taminated gasoline. Avoid getting
dirt,
dust or water
In the fuel tank.
4.
Tank capaclty:
0.95
gallons (3.6 liter). Leave
1/2
in.
(13
mm) at the top of the tank for gas expansion.
5.
Shut
off
the englne swltch
(A)
before
refueling.
6.
After refueling, tighten the fuel
tank
cap
(E)
firmly.
Fig 11
-1
308-105
11
