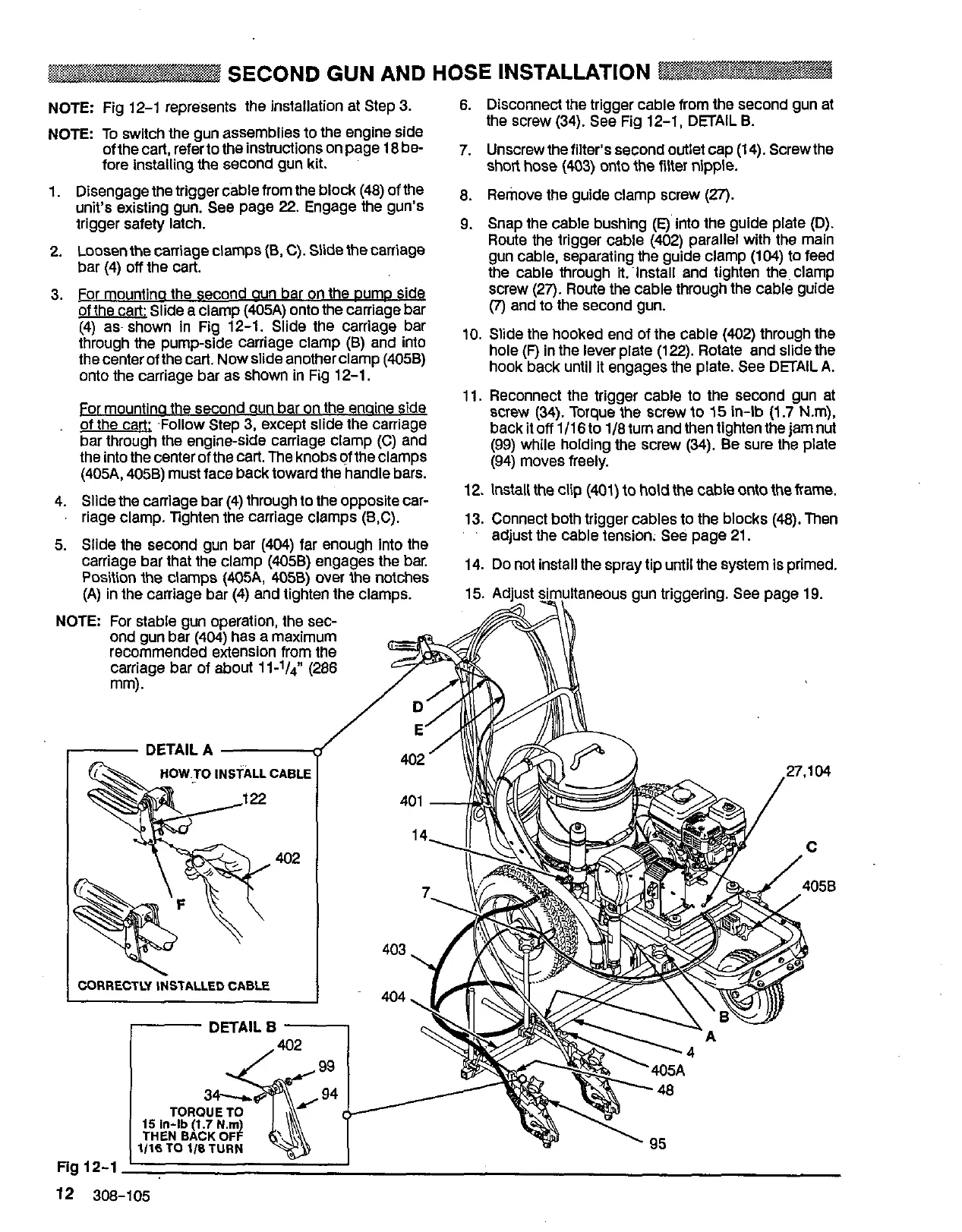

SECOND
GUN
AND HOSE INSTALLATION
NOTE:
Fig
12-1
represents the installation at Step
3.
NOTE
TO
switch the gun assemblies to the engine side
fore installing
the
second
gun
kit.
of the cart, refer
to
the instructions on page
18
be-
1.
Disengage tne trigger cable from the block
(48)
of the
unit's existing
gun.
See
page 22. Engage the gun's
trigger safety latch.
2.
Loosen the carriage clamps
(8,
C). Slide the carriage
bar
(4)
off
the cart.
3.
For mountino the second aun bar
on
the DumD side
of the cart;Slide a clamp
(405A)
onto the carriage bar
(4)
as^
shown in Fig
12-1.
Slide the carriage bar
through the pump-side carriage clamp
(B)
and into
the center of the cart. Now slide another clamp
(4058)
onto the carriage bar as shown in Fig
12-1.
of the calt; .Follow Step
3,
except slide the Carriage
For mountino the second oun bar on the enoine side
bar through the engine-side carriage clamp
(C)
and
the into the center
of
the cart. me knobs
of
the clamps
(405A,
4058)
must face back toward the handle bars.
4.
Slide the carriage bar
(4)
through to the opposite car-
riage clamp. Tighten the carriage clamps
(B,C).
5.
Slide the second gun bar
(404)
far enough into the
carriage bar that the clamp
(4058)
engages the bar.
Position the clamps
(=A,
4058)
over the notches
(A) in the carriage bar
(4)
and tighten the clamps.
NOTE:
DETAIL
A
W.TO
INSTALL
CABLE
402
CORRECTLY INSTALLED
CABLE
r
,402
1
Fig
12-
12
308-105
6.
Disconnect the trigger cable from the second gun at
the screw
(34).
See
Fig
12-1,
DETAIL
B.
7. Unscrewthefilter's second outlet cap
(14).
Screwthe
short hose
(403)
onto the filter nipple.
8.
Remove the guide clamp screw
(27).
9.
Snap the cable bushing
(E)
into the guide plate (D).
Route
the trigger cable
(402)
parallel with the main
gun cable, separating the guide clamp
(104)
to feed
the cable through it:lnstall and tighten the Clamp
screw
(27).
Route
the cable through the cable guide
(7)
and to the second gun.
10.
Slide the hooked end
of
the cable
(402)
through the
hole
(F)
in the lever plate
(1
22).
Rotate and slide the
hook back until it engages the plate.
See
DETAIL
A.
11.
Reconnect the trigger cable to the second gun at
screw
(34).
Torque the
screw
to
15
in-lb
(1.7
Nm),
backitoffl/l6to1/8tumandthentightenthejamnut
(99)
while holding the screw
(34). Be
sure the plate
(94)
moves freely.
12.
Install
the
clip
(401)
to
hold the cable onio the frame.
'
.
adjust the cable tension.
See
page
21.
13.
Connect both trigger cables
to
the blocks
(48).
men
14.
Do not install the spray tip until the system
Is
primed.
15.
Adjust sLmultaneous gun triggering.
See
page
19.
