Graco CSP Series - Sequences; Sequence 1; Sequence 2

Operation
10 3A3995L
Sequences
Sequence 1
1. Lubricant enters through the inlet provided at the
top of the block.
2. Lubricant fills the left side of Plunger 1 pushing the
plunger to the right.
3. Plunger 1 opens, delivering lubricant to Outlet 1
(F
IG. 10).
Sequence 2
1. Lubricant fills the left side of Plunger 2 pushing the
plunger to the right.
2. Plunger 2 opens, delivering lubricant to Outlet 4
(F
IG. 11).

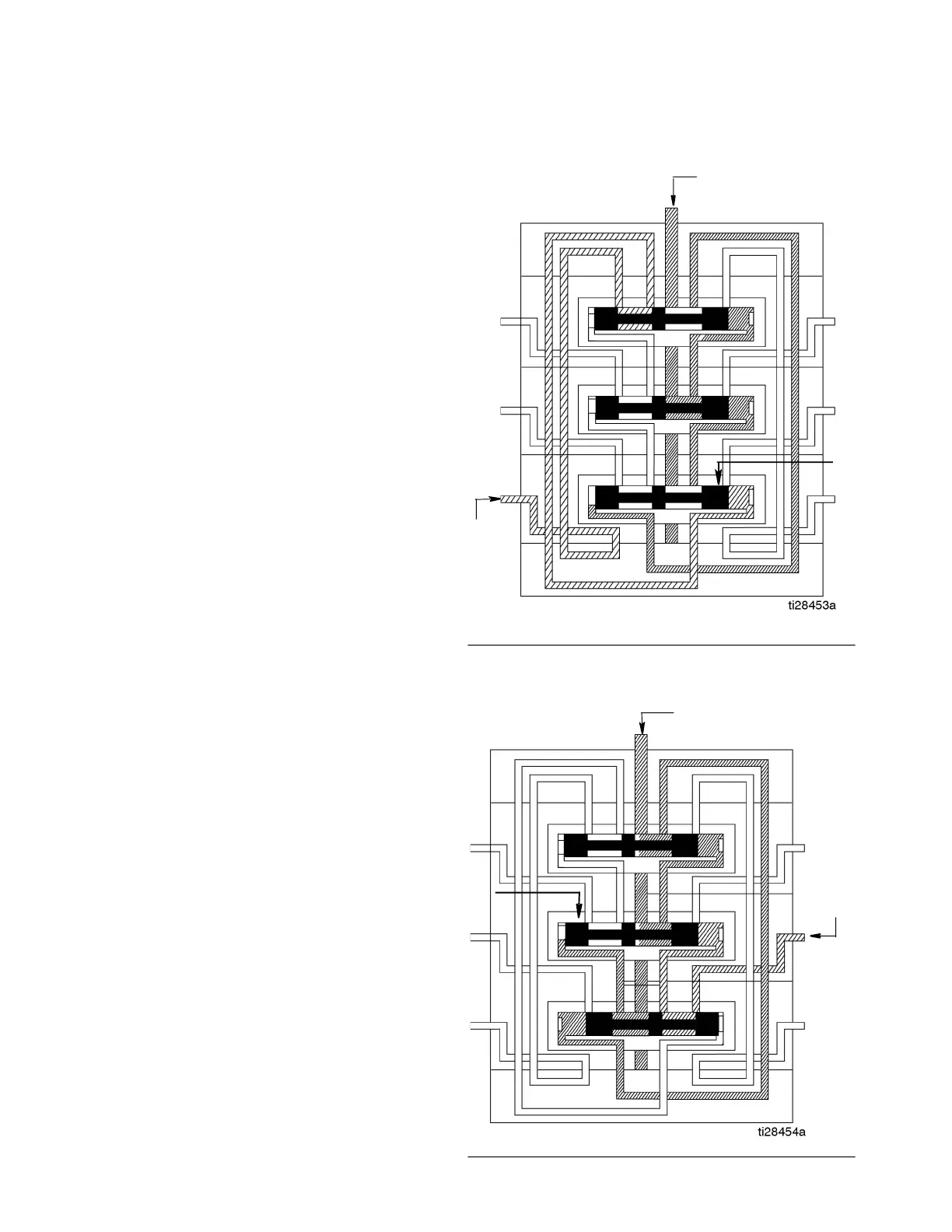

FIG. 10
Inlet
Outlet
1
Plunger 1
FIG. 11
Inlet
Outlet
4
Plunger 2
