Graco CSP Series - Sequence 3; Sequence 4

Operation
3A3995L 11
Sequence 3
1. Lubricant fills the left side of Plunger 3 pushing the
plunger to the right.
2. Plunger 3 opens, delivering lubricant to Outlet 6
(F
IG. 12).
Sequence 4
1. Lubricant fills the right side of Plunger 1 pushing
the plunger to the left.
2. Plunger 1 opens, delivering lubricant to Outlet 2
(F
IG. 13).

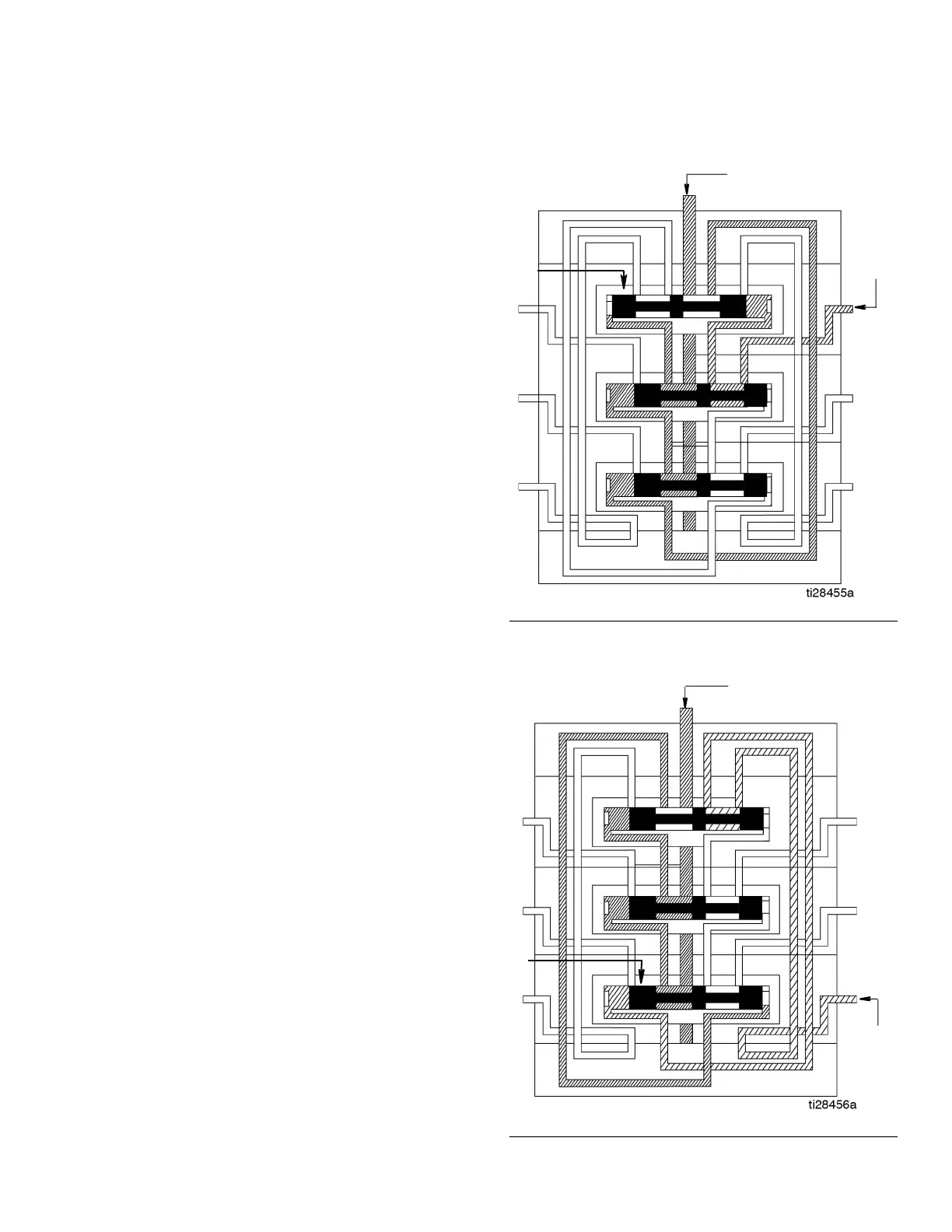

FIG. 12
Inlet
Plunger 3
Outlet
6
FIG. 13
Inlet
Outlet
2
Plunger 1
